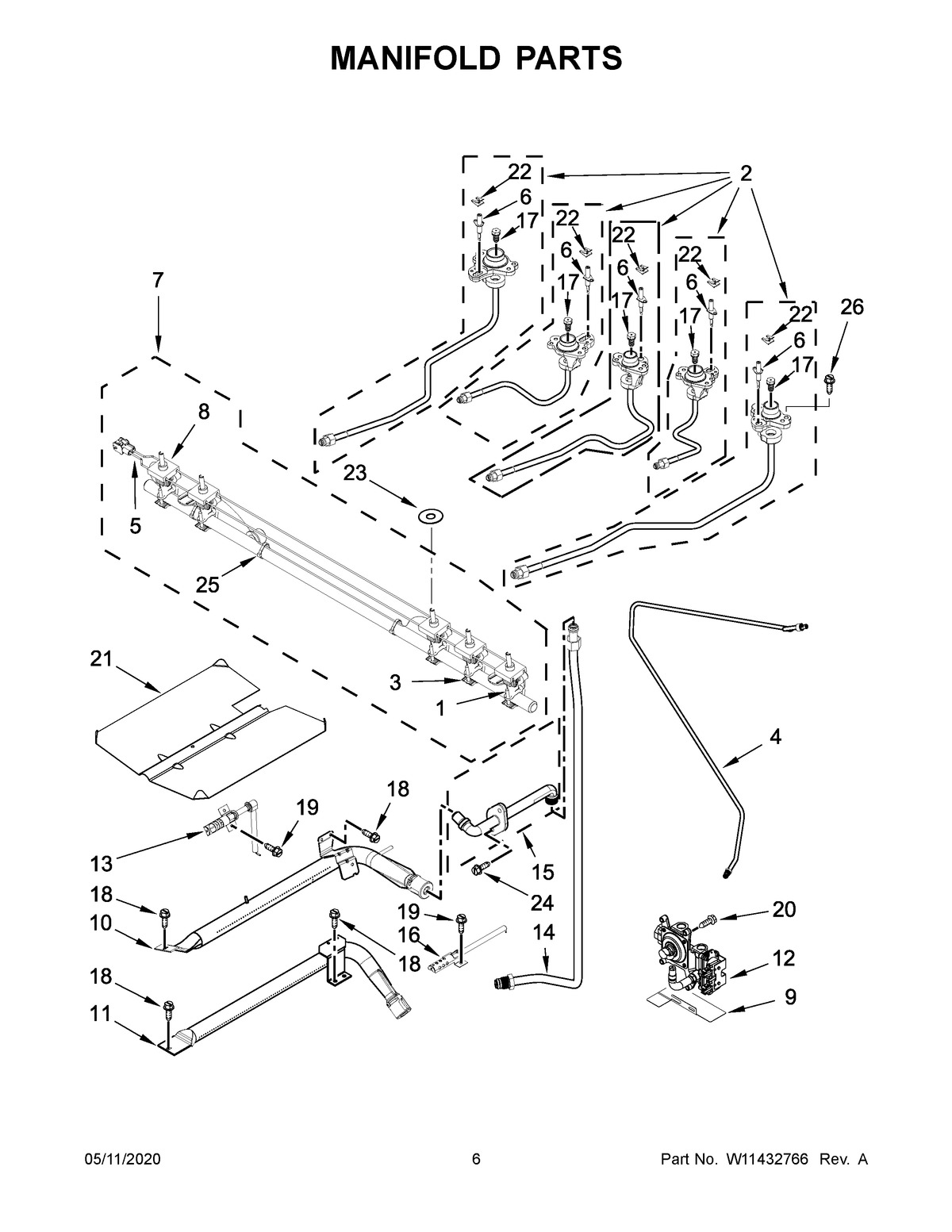

MGS8800FZ1 04 – MANIFOLD PARTSadmin2025-04-26T12:48:26+00:00MGS8800FZ1 04 – MANIFOLD PARTS
Products
| Position | Product |
|---|
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | MAY W10566535 |
| NI | MAY W11396878 |
| 1 | SCREW |
| 2A | MAY W11186507 |
| 2C | MAY W11186519 |
| 2B | MAY W11186523 |
| 2D | MAY W11186516 |
| 2 | MAY W11186510 |
| 3 | BRACKET, SADDLE VALVE |
| 4 | TUBE, SUPPLY |
| 5 | MAY W10478601 |
| 6A | ELECTRODE, BURNER (LEFT REAR) |
| 6B | ELECTRODE, BURNER (RIGHT FRONT) |
| 6C | ELECTRODE, BURNER (RIGHT REAR) |
| 6 | ELECTRODE, BURNER (LEFT FRONT) |
| 7 | MAY W11356350 |
| 8A | MAY W10831588 |
| 8 | VALVE, GAS (RIGHT FRONT) |
| 8B | VALVE, GAS (RIGHT REAR & CENTER) |
| 9 | BRACKET, AEGIS |
| 10 | MAY W10439242 |
| 11 | MAY W10680035 |
| 12 | MAY W10554066 |
| 13 | ELECTRODE, BAKE |
| 14 | MAY W10306050 |
| 15 | FITTING, BROIL BURNER |
| 16 | ELECTRODE, BROIL |
| 17C | ORIFICE (RIGHT REAR) |
| 17A | ORIFICE (LEFT REAR) |
| 17 | MAY W10849722 |
| 17B | ORIFICE (LEFT FRONT, RIGHT FRONT) |
| 17D | ORIFICE (8K) (CENTER) |
| 18 | SCREW |
| 19 | SCREW |
| 20 | SCREW |
| 21 | MAY 3601P336-45 |
| 22 | SPRING, ELECTRODE |
| 23 | SEAL, SWITCH SHAFT |
| 24 | MAY W10362924 |
| 25 | TIE, MANIFOLD WIRE |
| 26 | SCREW |
