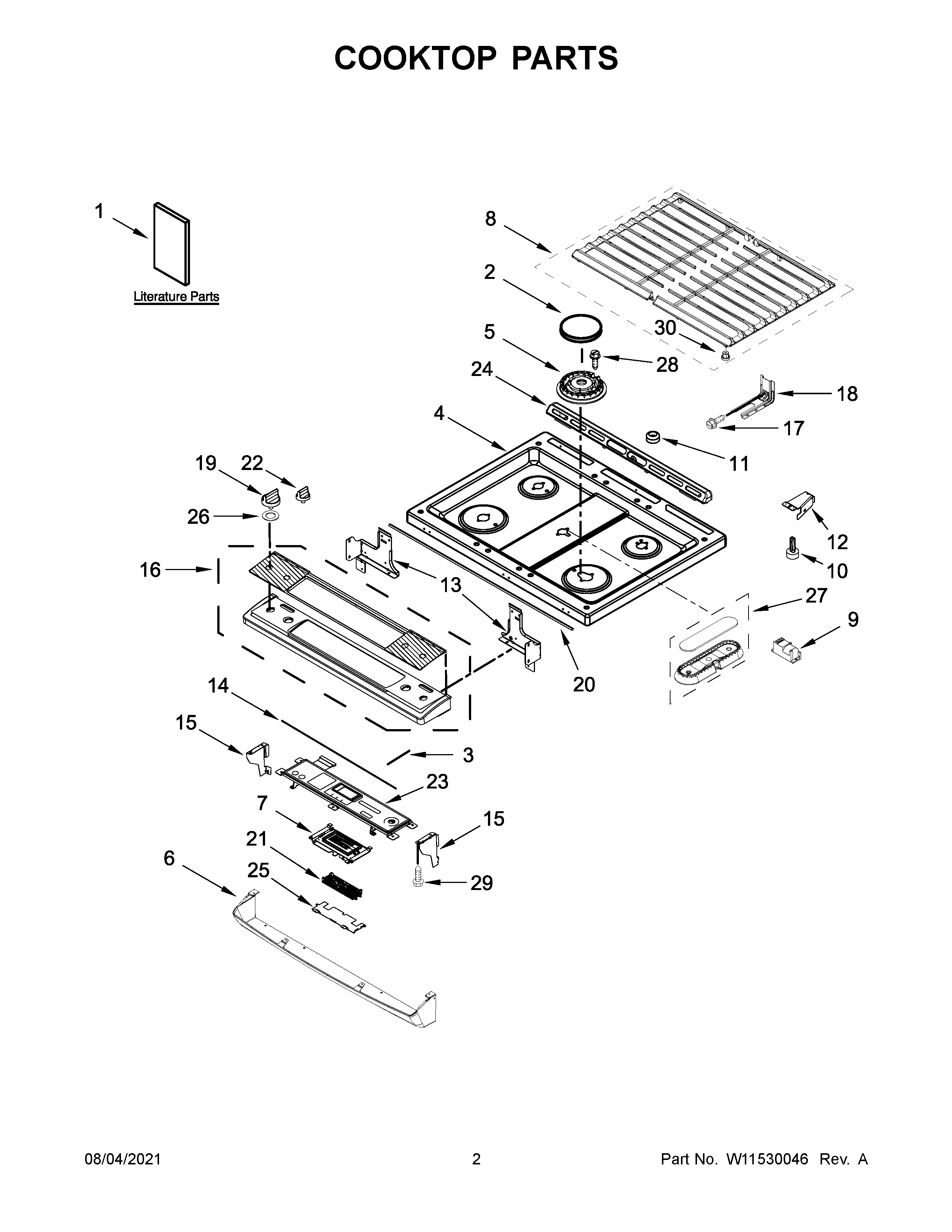

MGS8800FZ2 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10580229 Whirlpool Grounding Wire
NI	W11176109 Whirlpool Wire Harness
NI	W11025616 Whirlpool Wire Harness
NI	W10580265 Whirlpool Wire Harness
NI	W11198972 Whirlpool Wire Harness
NI	WPL W11454288
NI	16515 Whirlpool Clip
1A	USE & CARE GUIDE
1	INSTALLATION INSTRUCTIONS
1D	QUICK START GUIDE (FRENCH)
1C	GUIDE, QUICK START
1B	TECH SHEET
2	W11605759 Whirlpool Burner Cap
3	W11744482 Whirlpool Gasket Assembly
4	W11450806 Whirlpool Cooktop
5B	W11435659 Whirlpool Burner Head
5A	W11435657 Whirlpool Burner Head
5	W11435630 Whirlpool Oven Burner Head
6	W11218703 Whirlpool Mounting Bracket
7	W11122852 Whirlpool Electronic Control Board + Core
8	W11449027 Whirlpool Grate Kit
9	WPW10475149 Whirlpool Spark Module
9A	W10860916 Whirlpool Spark Module
10	GLIDE, MAIN TOP
11	W11690600 Whirlpool Bumper
12A	W10162252 Whirlpool Bracket Mounting
12	W10162253 Whirlpool Mounting Bracket
13	W10289170 Whirlpool Support Bracket
13A	W10289169 Whirlpool Bracket Support
14	W10802457 Whirlpool Gasket
15	W10547960 Whirlpool Endcap Panel
15A	W10547961 Whirlpool Endcap Panel
15B	W10598048 Whirlpool Support Bracket
16	W10680371 Whirlpool Control Panel
17	SCREW, ANTI-TIP KIT
18	W11502257 Whirlpool Anchor Tip
19	W11049637 Whirlpool Knob Assembly
20	W10802441 Whirlpool Gasket
21	W11050556 Whirlpool Electronic Control Board + Core
22	W11049638 Whirlpool Knob
23	W11049250 Whirlpool Membrane Switch
24	W11256338 Whirlpool Vent Trim
25	W10558372 Whirlpool Bracket Mounting
26	W11131701 Whirlpool Bushing
27	W11435660 Whirlpool Burner Head
28	W11241230 Whirlpool Screw
29	W11245710 Whirlpool Refrigerator Screw
30	W10919249 Whirlpool Burner Grate Foot
