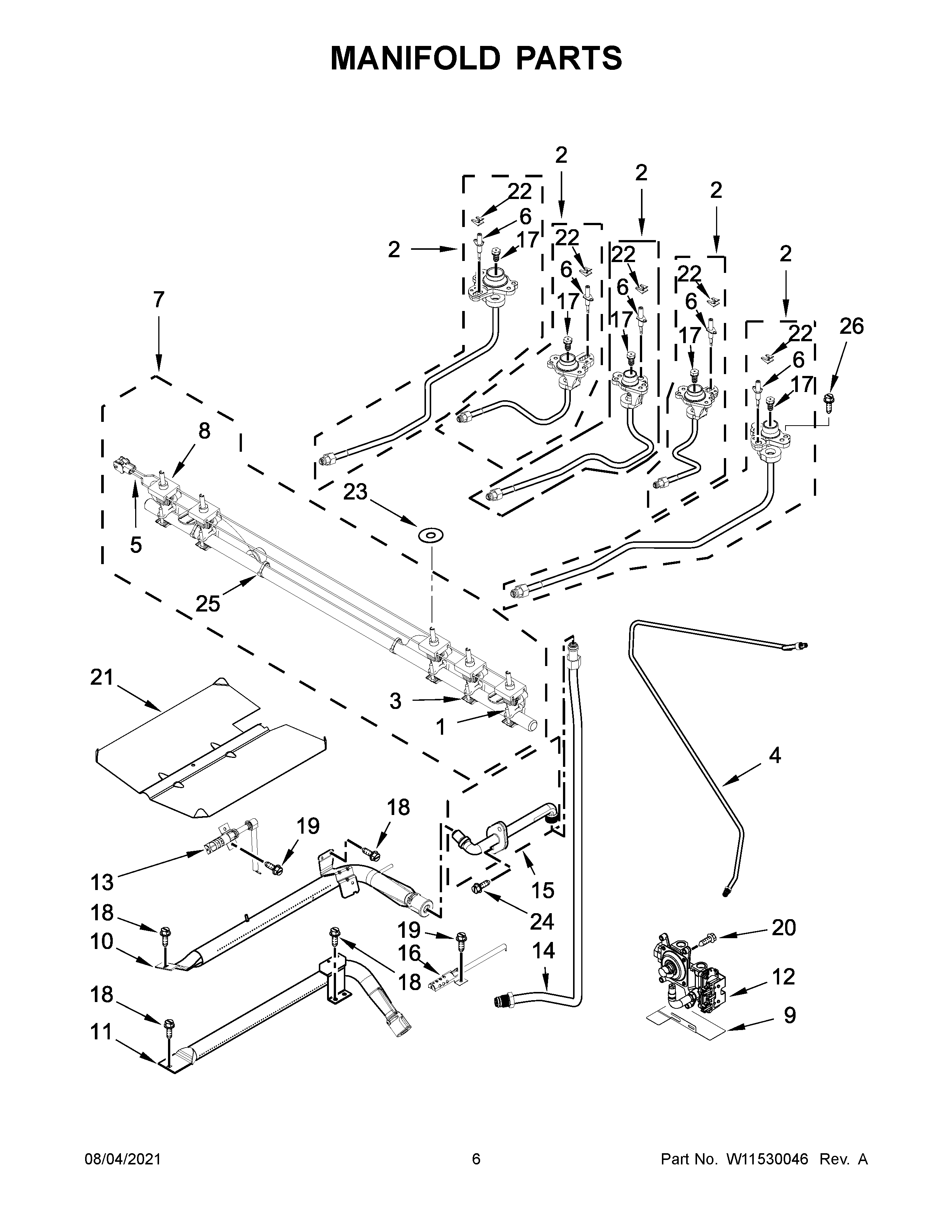

MGS8800FZ2 04 – MANIFOLD PARTS

Products

Position	Product
NI	W11087486 Whirlpool Spud Orifice
NI	W11216991 Whirlpool Orifice
NI	W11435676 Whirlpool Orifice Spud
NI	CABINET (NOT A SERVICEABLE PART)
NI	WPW10400494 Whirlpool Orifice Assembly
1	W11666001 Whirlpool Screw
2	W11186510 Whirlpool Holder Orifice
2A	W11186507 Whirlpool Orifice Holder
2C	W11186519 Whirlpool Orifice Holder
2D	W11186516 Whirlpool Orifice Holder
2B	W11186523 Whirlpool Orifice Holder
3	W10949105 Whirlpool Mounting Bracket
4	W10552140 Whirlpool Gas Tubing
5	W11677625 Whirlpool Wire Harness
6	W11661929 Whirlpool Surface Igniter
6C	W11661897 Whirlpool Range Surface Igniter
6B	W11643126 Whirlpool Surface Igniter
6A	W11666003 Whirlpool Range Surface Igniter
7	W11356350 Whirlpool Manifold Assembly
8A	W10873136 Whirlpool Burner Valve
8B	W11163975 Whirlpool Burner Valve
8	W11223016 Whirlpool Burner Valve
9	W10224921 Whirlpool Bracket Mounting
10	W11676566 Whirlpool Range Burner Broiler
11	W10764654 Whirlpool Oven Burner
12	W10861656 Whirlpool Regulator Assembly
13	WPW10324262 Whirlpool Oven Igniter
14	W10306050 Whirlpool Gas Tubing
15	W10583216 Whirlpool Fitting Assembly
16	WPW10333842 Whirlpool Oven Igniter
17C	W10849714 Whirlpool Orifice Spud
17D	ORIFICE (8K) (CENTER)
17B	W10849717 Whirlpool Orifice Spud
17	ORIFICE (18K) (LEFT FRONT, RIGHT FRONT AND CENTER)
17A	W11677633 Whirlpool Spud Orifice
18	SCREW
19	W11684507 Whirlpool Screw
20	WP3400016 Whirlpool Screw Assembly
21	BAFFLE, BROIL BURNER
22	W11684564 Whirlpool Clip Assembly
23	W10140571 Whirlpool Seal Switch
25	WPW10182767 Whirlpool Wire Tie
26	3196172 Whirlpool Oven Screw
