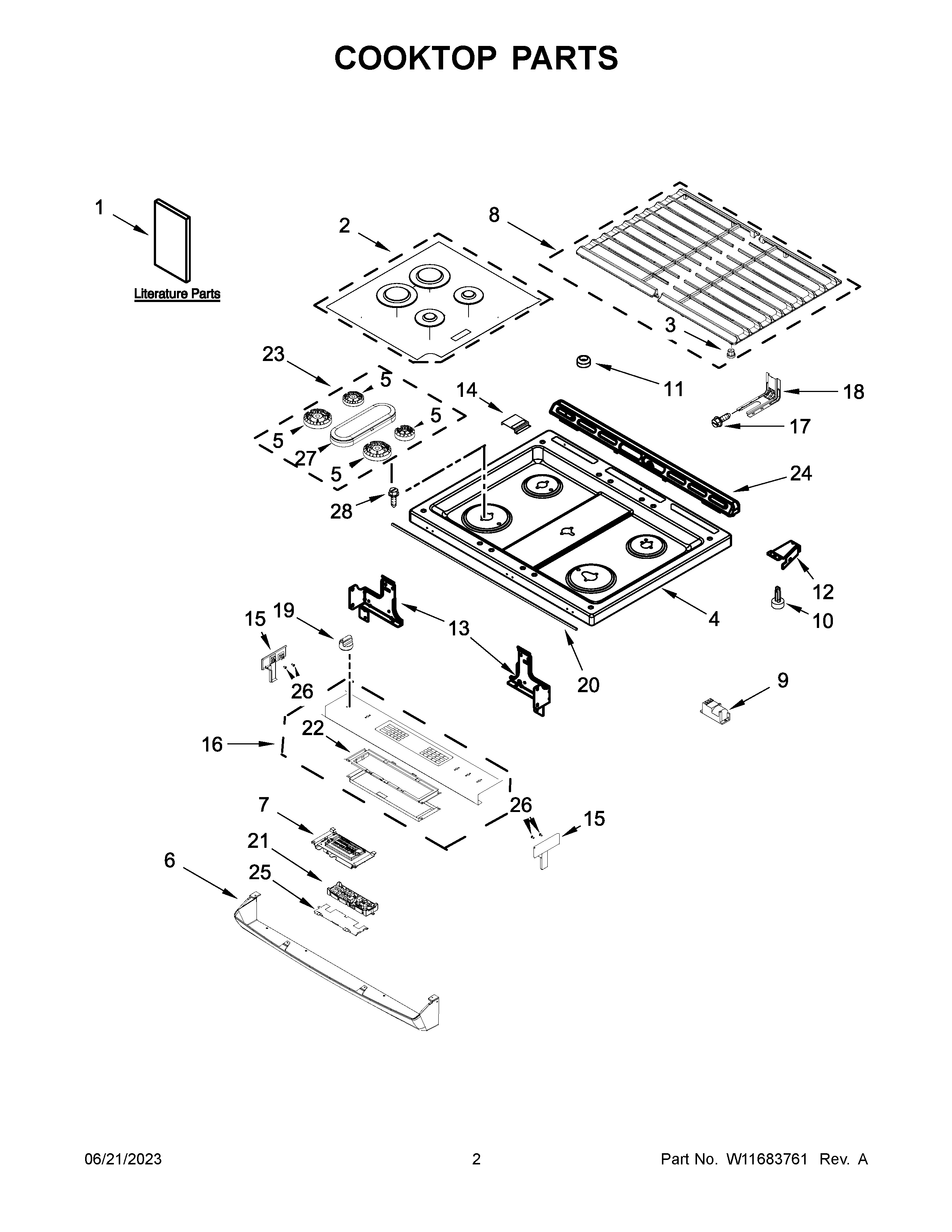

MGS8800PZ0 02 – COOKTOP PARTS

Products

Position	Product
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W11176109 Whirlpool Wire Harness
NI	W11198972 Whirlpool Wire Harness
NI	3196896 Whirlpool Clip
NI	W11025616 Whirlpool Wire Harness
NI	W11458864 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	W10580229 Whirlpool Grounding Wire
1	OWNERS MANUAL
1B	QUICK START GUIDE
1A	TECH SHEET
2	W11605764 Whirlpool Burner Cap
3	W10919249 Whirlpool Burner Grate Foot
4	W11441000 Whirlpool Cooktop
5C	W11531096 Whirlpool Burner Head
5	W11436986 Whirlpool Burner Head
5A	W11531098 Whirlpool Burner Head
5B	W11531097 Whirlpool Burner – Head
6	W10565662 Whirlpool Mounting Bracket
7	W11108634 Whirlpool Display
8	W11228127 Whirlpool Grate Kit
9	WPW10475149 Whirlpool Spark Module
9A	W10860916 Whirlpool Spark Module
10	GLIDE, MAIN TOP
11	W11690600 Whirlpool Bumper
12A	W10162252 Whirlpool Bracket Mounting
12	W10162253 Whirlpool Mounting Bracket
13A	BRACKET, SUPPORT (RIGHT)
13	BRACKET,SUPPORT (LEFT)
14	SHIELD, KEYPAD
15A	W10557754 Whirlpool Endcap Panel
15B	W10598048 Whirlpool Support Bracket
15	W10557751 Whirlpool Panel End Cap
16	PANL-CNTRL
17	SCREW, ANTI-TIP KIT
18	W11502257 Whirlpool Anchor Tip
19	KNOB (STAINLESS)
20	GASKET, CONSOLE AND COOKTOP
21	W11686857-includeCORE Whirlpool Electronic Control+Core
22	W10557780 Whirlpool Bracket Mounting
23	W11662377 Whirlpool Range Burner Head
24	W11256338 Whirlpool Vent Trim
25	W10558372 Whirlpool Bracket Mounting
26	W11245710 Whirlpool Refrigerator Screw
27	W11548764 Whirlpool Burner Head
28	W11241230 Whirlpool Screw
