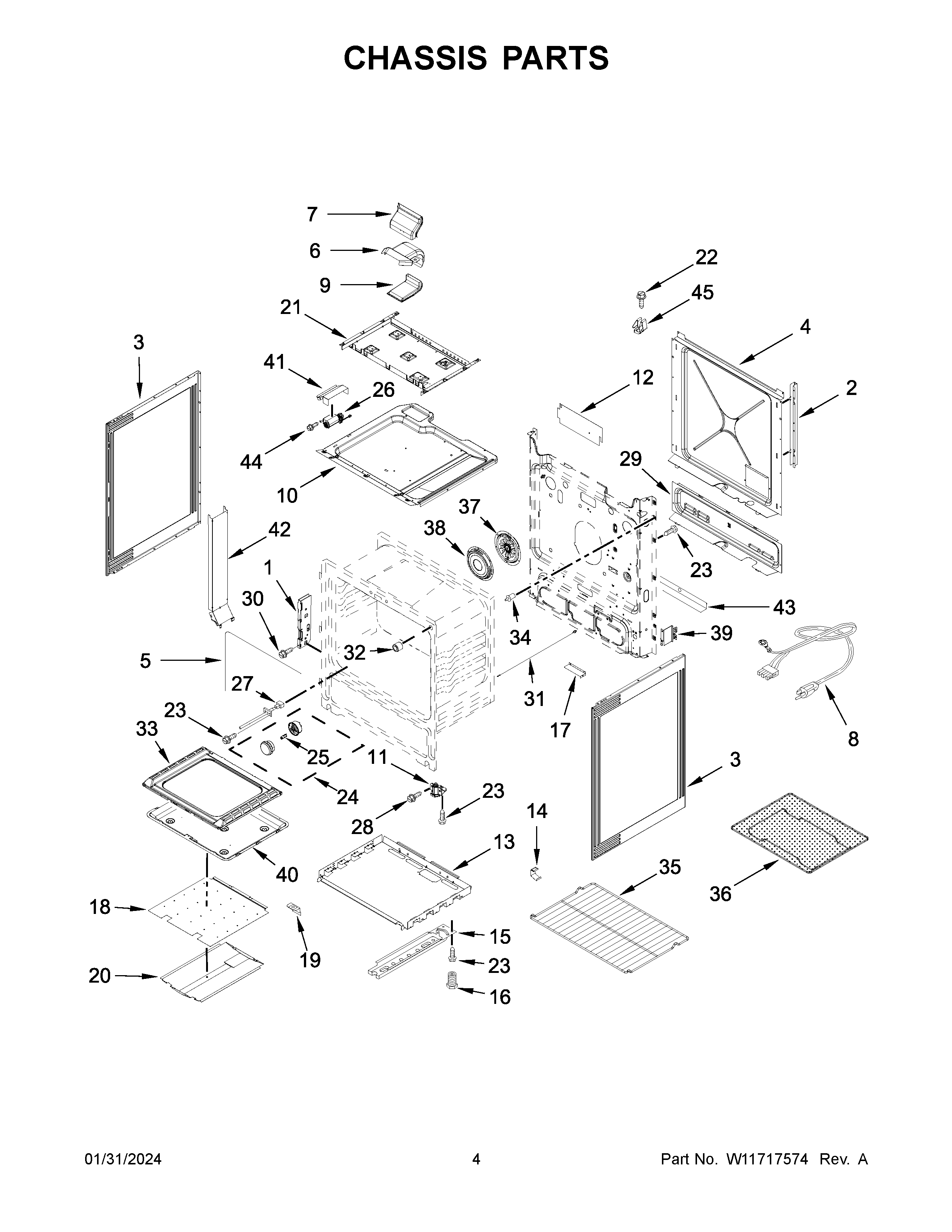

MGS8800PZ1 03 – CHASSIS PARTS

Products

Position	Product
NI	CLAMP, WIRE
NI	W11688363 Whirlpool Insulation
NI	W11688567 Whirlpool Insulation Assembly
NI	INSULATION, STRAP
NI	3400964 Whirlpool Oven Clip
NI	FOLLOWING PARTS NOT ILLUSTRATED
1	W10647259 Whirlpool Hinge Receiver
2	W10162241 Whirlpool Channel
3	W11730303 Whirlpool Side Panel
4	W11379354 Whirlpool Rear Cover
5	W11562931 Whirlpool Door Gasket
6	W10162257 Whirlpool HVAC Air Duct
7	W10614920 Whirlpool Oven Flue
8	W11582239 Whirlpool Range Power Cord
9	W11243157 Whirlpool Oven Flue
10	W10289168 Whirlpool Burner Box
11	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
12	W10818358 Whirlpool Shield
13	W10541959 Whirlpool Heat Shield Assembly
14	W10137382 Whirlpool Clip
15A	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	W10655451 Whirlpool Spill Guard
18	W10323077 Whirlpool Burner Baffle
19	W10035900 Whirlpool Support Bracket
20	BAFFLE, BAKE BURNER
21	W11320442 Whirlpool Burner Box
22	W10516115 Whirlpool Screw
23	SCREW
24	W11707255 Whirlpool Light
25	BULB-LIGHT
26	W11620737 Whirlpool Blower Fan
27	SENSOR-RANGE
28	WP3196557 Whirlpool Screw
29	W10162249 Whirlpool Wire Cover
30	W10777162 Whirlpool Screw
31	W11370463 Whirlpool Door Rod Assembly
32	W10877054 Whirlpool Spacer Assembly
33	WPW10211368 Whirlpool Oven Bottom
34	SWTCH-LITE
35	WPW10531060 Whirlpool Oven Rack
36	W11692811 Whirlpool Fryer Basket
37	W11441001 Whirlpool Convection Fan
38	WPW10346154 Whirlpool Cover Assembly
39	W10273002 Whirlpool Support Bracket
40	W11379356 Whirlpool Hidden Pan Assembly
41	W10162255 Whirlpool Exhaust Cover
42	W10162254 Whirlpool Air Duct
43	W10435470 Whirlpool Brace
44	WPW10067840 Whirlpool Screw
45	W11025100 Whirlpool Insert
