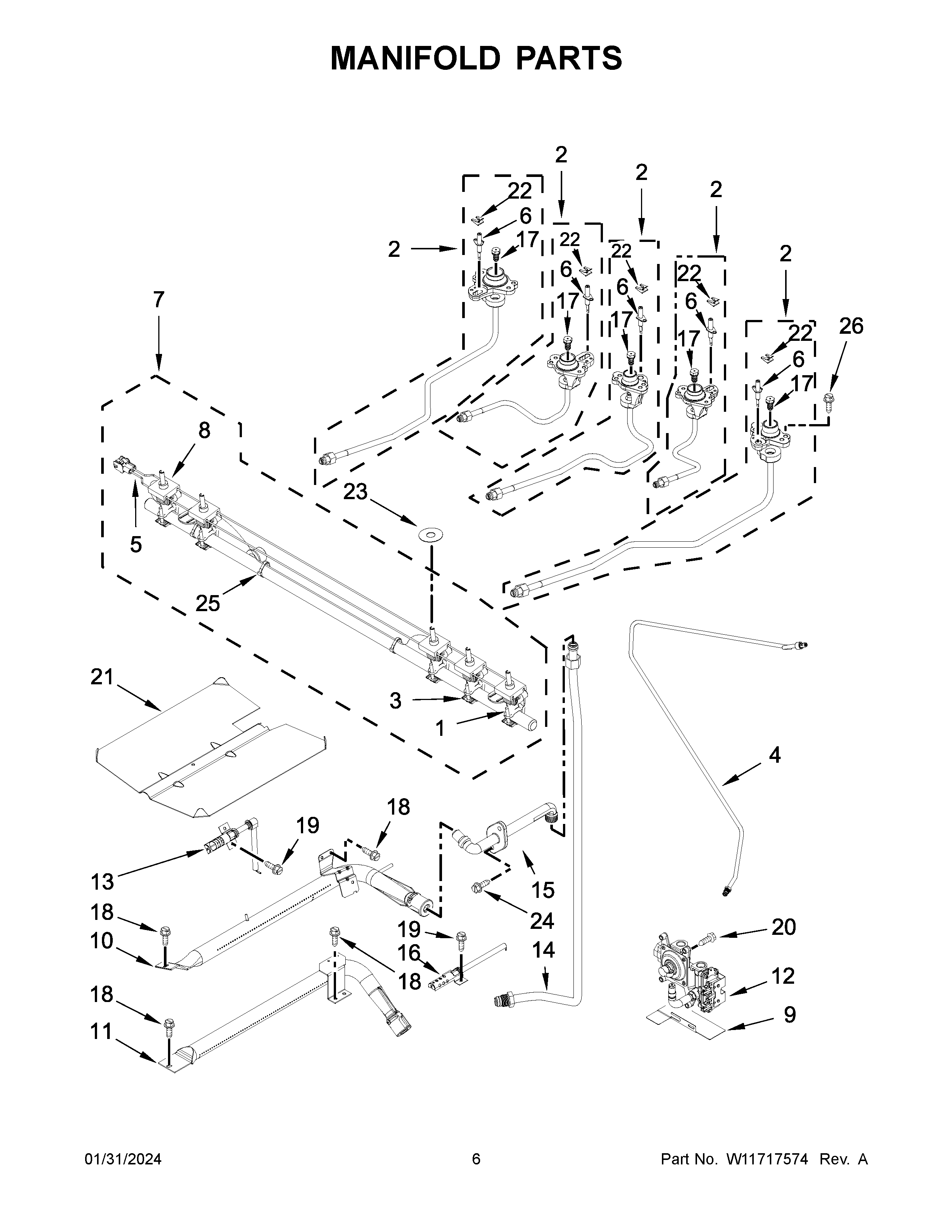

MGS8800PZ1 04 – MANIFOLD PARTS

MGS8800PZ1 04 – MANIFOLD PARTS

Written by

in

MGS8800PZ1 04 – MANIFOLD PARTS

Products

PositionProduct
NIW11216991 Whirlpool Orifice
NIFOLLOWING PARTS NOT ILLUSTRATED
NIW11436985 Whirlpool Orifice Spud
NIW11087486 Whirlpool Spud Orifice
NIWPW10400494 Whirlpool Orifice Assembly
1W11577790 Whirlpool Screw Assembly
2AORIFICE, ASSEMBLY (LEFT REAR)
2W11186511 Whirlpool Holder Orifice
2CASSEMBLY, ORIFICE (9.2K) (RIGHT REAR)
2DASSEMBLY, ORIFICE (8K) (CENTER)
2BASSEMBLY, ORIFICE (15K) (RIGHT FRONT)
3W10949105 Whirlpool Mounting Bracket
4W10432252 Whirlpool Gas Tubing
5W11596366 Whirlpool Wire Harness
6AW11666003 Whirlpool Range Surface Igniter
6BW11643126 Whirlpool Surface Igniter
6CW11661897 Whirlpool Range Surface Igniter
6W11675301 Whirlpool Range Surface Igniter
7W11602206 Whirlpool Manufactured Pipe
8CW11593170 Whirlpool Burner Valve
8AVALVE-BRNR
8VALVE-BRNR
8BW11620677 Whirlpool Burner Valve
9W10224921 Whirlpool Bracket Mounting
10W11676566 Whirlpool Range Burner Broiler
11W10764654 Whirlpool Oven Burner
12W10861656 Whirlpool Regulator Assembly
13WPW10324262 Whirlpool Oven Igniter
14W10306050 Whirlpool Gas Tubing
15W10583216 Whirlpool Fitting Assembly
16WPW10333842 Whirlpool Oven Igniter
17DORIFICE (8K) (CENTER)
17CW10849714 Whirlpool Orifice Spud
17ORIFICE (18K) (LEFT FRONT)
17AW11677633 Whirlpool Spud Orifice
17BW10849717 Whirlpool Orifice Spud
18SCREW
19W11684507 Whirlpool Screw
20WP3400016 Whirlpool Screw Assembly
21BAFFLE, BROIL BURNER
22W11684564 Whirlpool Clip Assembly
23W11507167 Whirlpool Switch Seal
25WPW10182767 Whirlpool Wire Tie
263196172 Whirlpool Oven Screw
