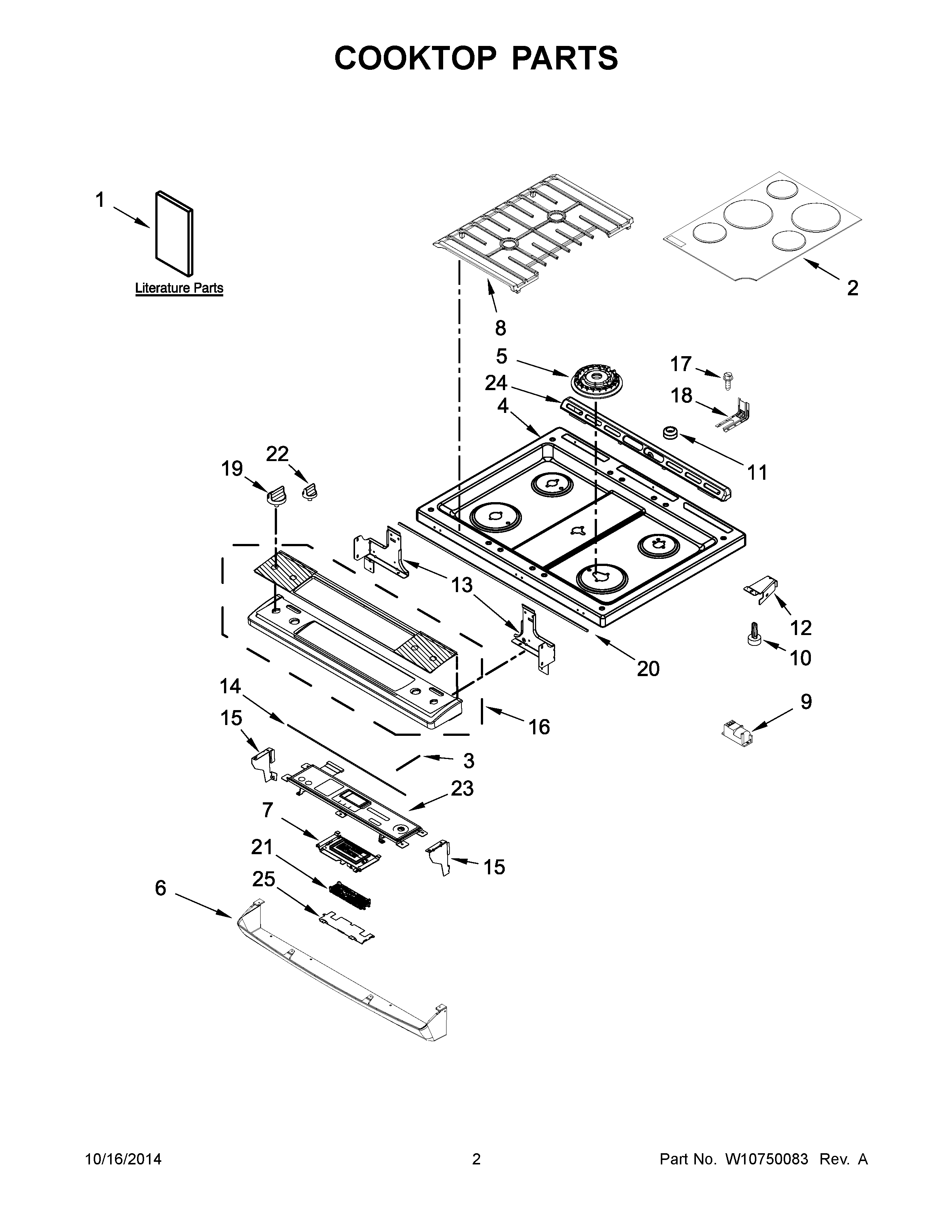

MGS8880DH0 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNESS, DISPLAY
NI	MAY W10580228
NI	MAY W10580282
NI	MAY W10580265
NI	MAY W10575120
NI	LINER (NOT A SERVICEABLE PART)
NI	WIRE, GROUND
NI	CLIP, HARNESS
1	MAY W10665256
1F	MAY W10400067
1C	TIPS, SAFE COOKING (ENGLISH)
1A	MAY W10722064
1D	TIPS, SAFE COOKING (FRENCH)
1B	SHEET, TECH
1E	MAY W10400066
2A	MAY W10479987
2	KIT, BURNER CAP (BLACK)
3	GASKET, CONSOLE SHORT
4	MAY W10474659
4A	MAY W10474661
5B	MAY W10464795
5	SPREADER, FLAME (LEFT FRONT & RIGHT FRONT)
5A	SPREADER, FLAME (RIGHT REAR & CENTER)
6A	PANEL, LOWER CONSOLE (WHITE)
6	PANEL, LOWER CONSOLE (BLACK)
7	MAY W10603098
8A	MAY W10432522
8	KIT, GRATE (BLACK)
9A	MODULE, SPARK (0+2)
9	MAY W10475149
10	GLIDE, MAIN TOP
11	BUMPER
12A	BRACE, CORNER (RIGHT)
12	BRACE, CORNER (LEFT)
13	SUPPORT, COOKTOP (LEFT)
13A	SUPPORT, COOKTOP (RIGHT)
14	GASKET, CONSOLE
15B	BRACKET, CONSOLE (CE
15A	BRACKET, CONSOLE (RIGHT)
15	BRACKET, CONSOLE (LEFT)
16B	MAY W10680371
16	MAY W10680369
16A	MAY W10680370
17	SCREW, ANTI-TIP KIT
18	BRACKET, ANTI-TIP
19	MAY W10672075
20	GASKET, CONSOLE/COOKTOP
21	MAY W10658114
22	MAY W10680397
23B	MAY W10680396
23A	MAY W10680395
23	MAY W10680394
24A	MAY W10636527
24	TRIM, VENT (BLACK)
25	BRACKET, CONTROL
