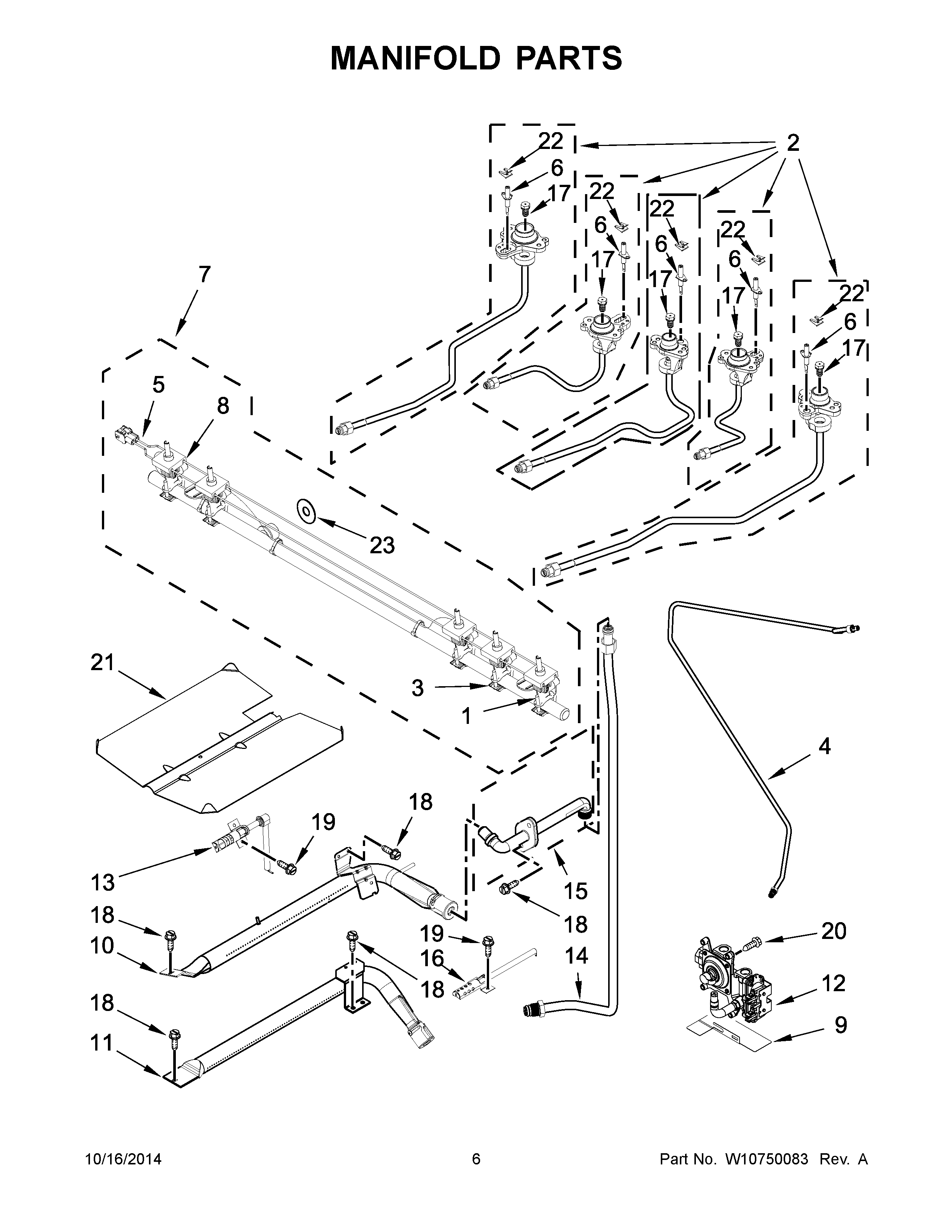

MGS8880DH0 04 – MANIFOLD PARTS

Products

Position	Product
NI	KIT, LP CONVERSION
NI	MISCELLANEOUS PARTS, KIT, BAKE & BROIL
NI	LINER (NOT A SERVICEABLE PART)
1	SCREW
2B	ASSEMBLY, ORIFICE (RIGHT FRONT)
2	ASSEMBLY, ORIFICE (LEFT FRONT)
2A	ASSEMBLY, ORIFICE (LEFT REAR)
2C	ASSEMBLY, ORIFICE (RIGHT REAR)
2D	ASSEMBLY, ORIFICE (CENTER)
3	BRACKET, SADDLE VALVE
4	TUBE, SUPPLY
5	MAY W10478601
6B	ELECTRODE (RIGHT FRONT & CENTER)
6	MAY W10496874
6A	MAY W10464799
6C	MAY W10496872
7	ASSEMBLY, MANIFOLD
8A	VALVE, GAS (LEFT REAR)
8	VALVE, GAS (RIGHT FRONT)
8B	VALVE, GAS (RIGHT REAR & CENTER)
9	BRACKET, AEGIS
10	MAY W10439242
11	MAY W10680035
12	MAY W10554066
13	ELECTRODE, BAKE
14	MAY W10306050
15	MAY W10319134
16	ELECTRODE, BROIL
17D	ORIFICE (8K) (CENTER)
17	ORIFICE (LEFT FRONT)
17A	MAY W10515054
17C	ORIFICE (RIGHT REAR)
17B	ORIFICE (RIGHT FRONT)
18	SCREW
19	SCREW
20	SCREW
21	MAY 3601P336-45
22	CLIP, SPRING ELECTRODE
23	SEAL, SWITCH SHAFT
