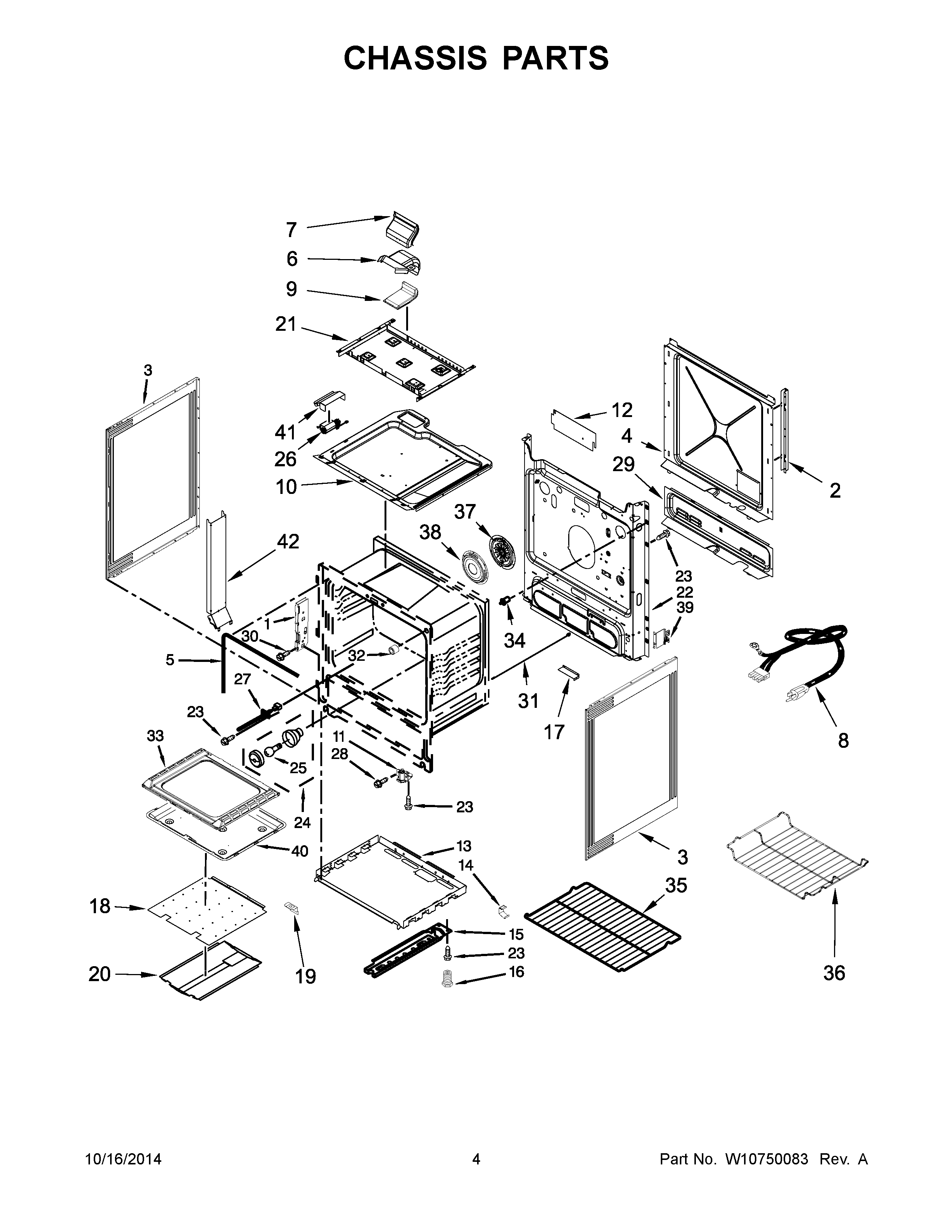

MGS8880DS0 03 – CHASSIS PARTS

Products

Position	Product
NI	STRAP, INSULATION
NI	CLIP, WIRE
NI	INSULATION, BURNER BOX
NI	INSULATION, BACK
NI	INSULATION, WRAP
NI	MAY 7111P017-60
NI	LINER (NOT A SERVICEABLE PART)
1	RECEIVER, HINGE
2	MAY W10162241
3A	PANEL, SIDE (WHITE)
3	PANEL, SIDE (BLACK)
4	MAY W10289172
5	MAY W10162385
6	MAY W10162257
7	ASSEMBLY, FLUE
8	CORD, POWER
9	ASSEMBLY, UPPER FLUE
10	BOX, BURNER SI
11	ASSEMBLY, FRONT FOOT
12	MAY W10655485
13	SHIELD, BAKE
14	CLIP, PANEL
15A	ASSEMBLY, BASE RAIL (RIGHT)
15	ASSEMBLY, BASE RAIL (LEFT)
16	FOOT, LEVELING
17	MAY W10655451
18	MAY W10323077
19	MAY W10035900
20	MAY 3601P356-45
21	BURNER, BOX GAS
22	BACK, MAIN
23	SCREW
24	ASSEMBLY, LIGHT
25	BULB, OVEN LIGHT
26	MAY W10162259
27	MAY W10586204
28	SCREW
29	COVER, WIRE
30	MAY W10031780
31	ROD, REAR DOOR
32	SPACER, DOOR
33	MAY W10211368
34	SWITCH, DOOR
35	MAY W10531060
36	ACCESSORIES, RACK, OVEN (GULL-WING)
37	MAY W10617484
38	MAY W10346154
39	BRACKET, SUPPORT
40	MAY W10273204
41	DUCT, COVER
42	DUCT, COOLING
