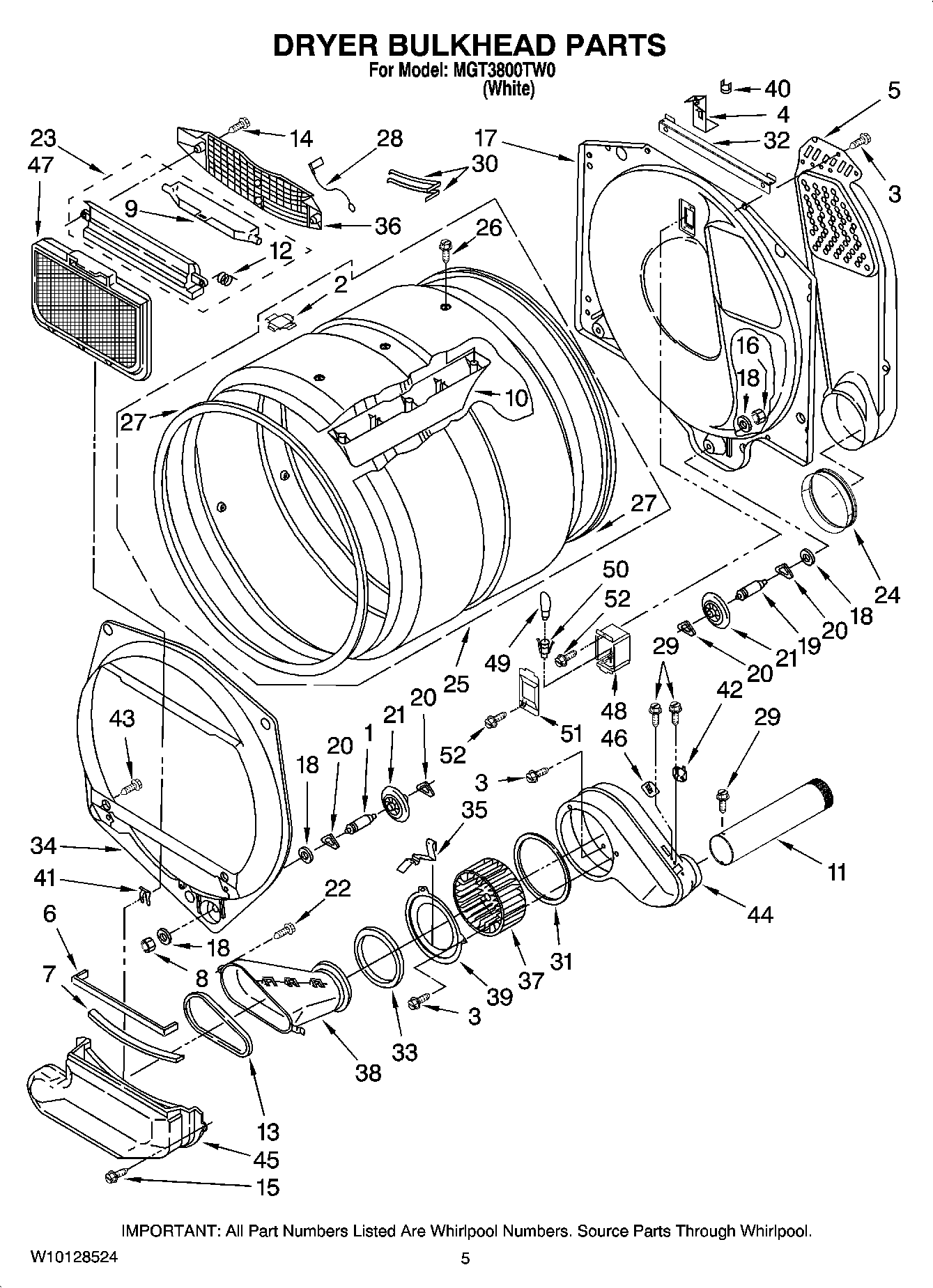

MGT3800TW0 04 – DRYER BULKHEAD PARTS

Products

Position	Product
1	MAY 8575324
2	Plug, Drum Hole
3	SCREW
4	MAY 3392226
5	MAY 3392157
6	MAY 697813
7	MAY 3391906
8	NUT, HEX
9	MAY 3394984
10	MAY 3389449
11	PIPE, EXHAUST
12	Spring, Lint Screen Door
13	MAY 3391685
14	SCREW
15	SCREW
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 8520836
18	WASHER
19	MAY 8575325
20	WASHER, TRI RING
21	MAY 8536973
22	SCREW
23	MAY 3394985
24	Colar-Air Duct
25	MAY 3389448
26	MAY W10109200
27	MAY 697694
28	Wire
29	MAY 8533971
30	SENSOR, ELECTRODE
31	SEAL, PLATE COVER
32	MAY 8571651
33	MAY 8566209
34	BULKHEAD, FRONT
35	MAY 3390935
36	MAY 8299979
37	MAY 697772
38	Duct, Transition (Includes Illus. No.33)
39	Plate, Blower
40	FIXED, THERMOSTAT (205~F)
41	STRAIN-RELIEF CLIP
42	MAY 3387134
43	Screw, 8-18 x 1/2
44	MAY 8544363
45	Lint Duct Assembly (Includes Illus. 7 & 13)
46	Limiter, Thermal
47	MAY 3389644
48	MAY 3977373
49	MAY 3406124
50	Scocket, Assembly
51	MAY 3402841
52	MAY 487909
