MGT3800TW1 02 – DRYER FRONT PANEL AND DOOR PARTS

MGT3800TW1 02 – DRYER FRONT PANEL AND DOOR PARTS

Written by

in

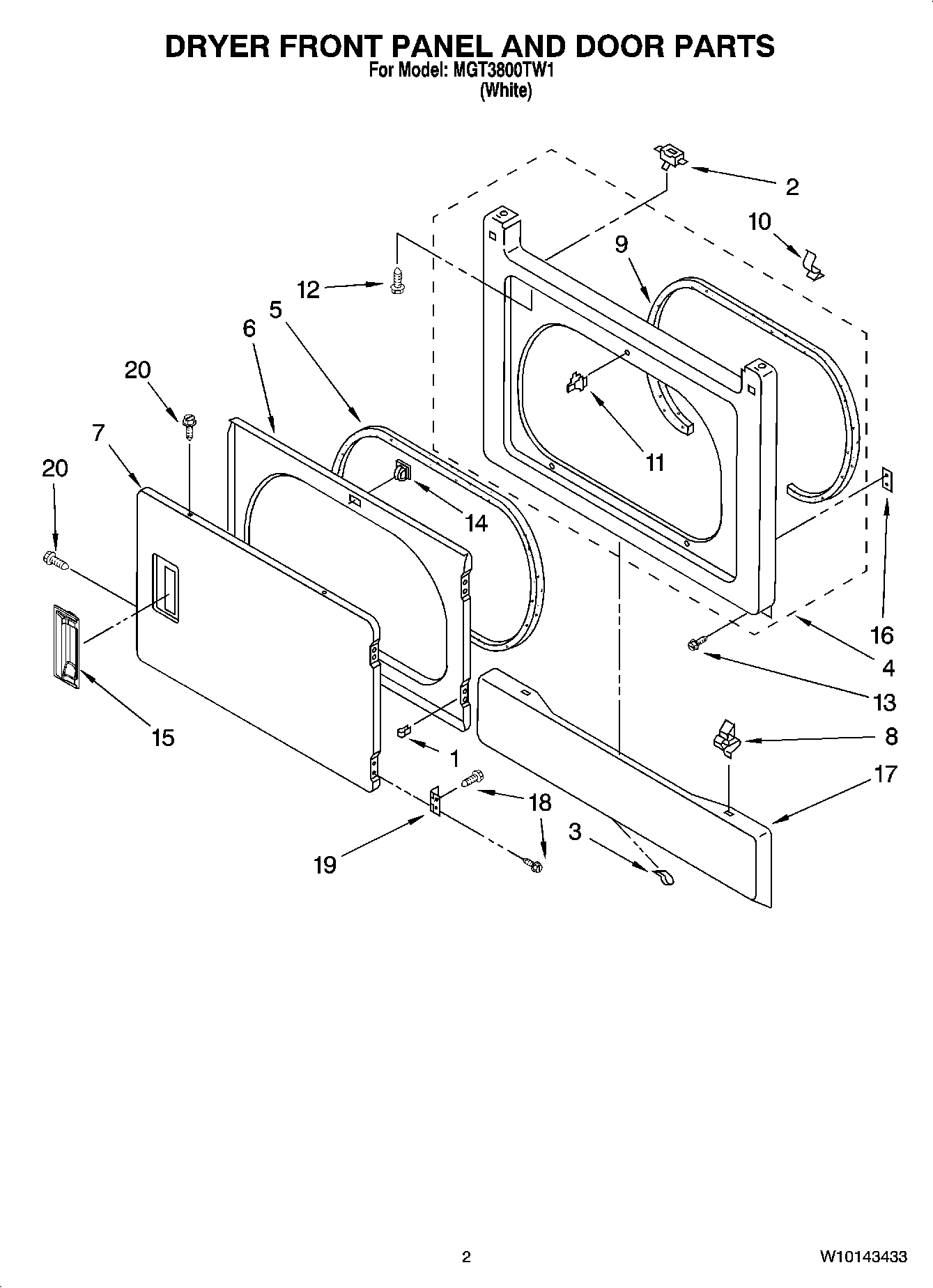

MGT3800TW1 02 – DRYER FRONT PANEL AND DOOR PARTS

Products

Position	Product
1	Nut, Inner Door (4)
2	MAY 3391902
3	Clip, Ground
4	MAY 3392547
5	MAY 3390735
6	MAY 3392563
7	MAY 3387872
8	RETAINER
9	MAY 3387242
10	MAY 3392602
11	MAY 696144
12	SCREW
13	SCREW, 10-16 X 1/2
14	MAY 3392538
15	Handle, Door (White)
16	MAY 3390902
17	MAY 3388958
18	MAY 342055
19	Hinge & Pin Assembly (2)
20	MAY 694091
