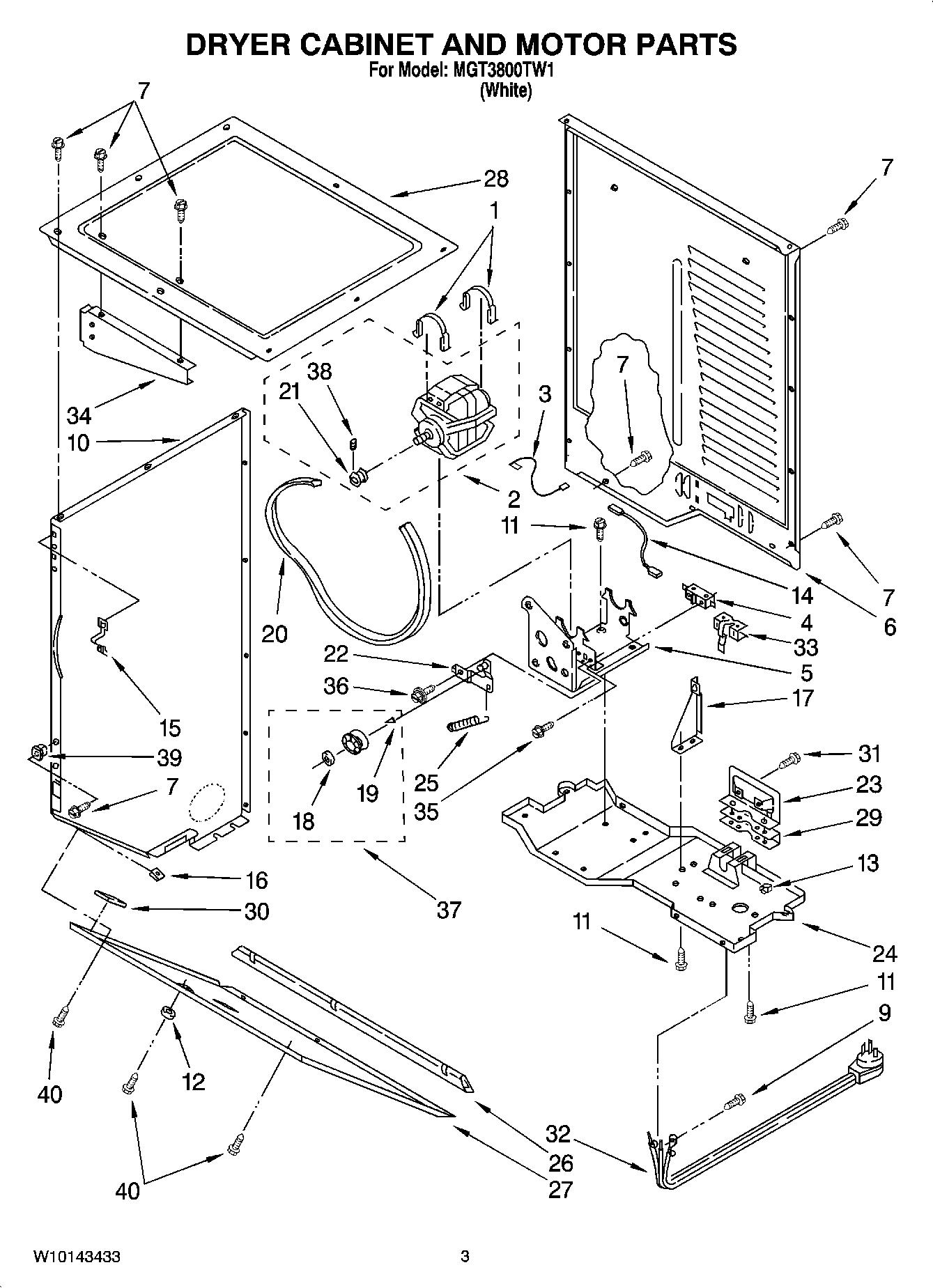

MGT3800TW1 03 – DRYER CABINET AND MOTOR PARTS

Products

Position	Product
1	MAY 660658
2	MAY 8538266
3	Wire, Jumper (Broken Belt Switch)
4	MAY 3394881
5	MAY 3388858
6	MAY 3389847
9	MAY 8533971
10	MAY 3389256
10	MAY 3389264
11	SCREW
12	MAY 3389431
13	MAY 697438
14	MAY 3394081
15	MAY 3389231
16	Clip, Ground
17	MAY 3391639
18	WASHER, TRI RING
19	MAY W10121334
20	MAY 3387610
21	MAY 3391087
22	MAY 3389332
23	MAY 3393722
24	MAY 3391668
25	MAY 3387374
26	MAY 3389683
27	MAY 3389272
28	MAY 3389537
29	MAY 3393717
30	MAY 3389682
31	SCREW
32	MAY 694018
33	MAY 8066120
34	MAY 3390722
35	Screw, 6-20 x 1-1/16
36	SCREW
37	ASSEMBLY, PULLEY
38	MAY 3394743
39	Nut, Push-In
40	Screw & Washer
