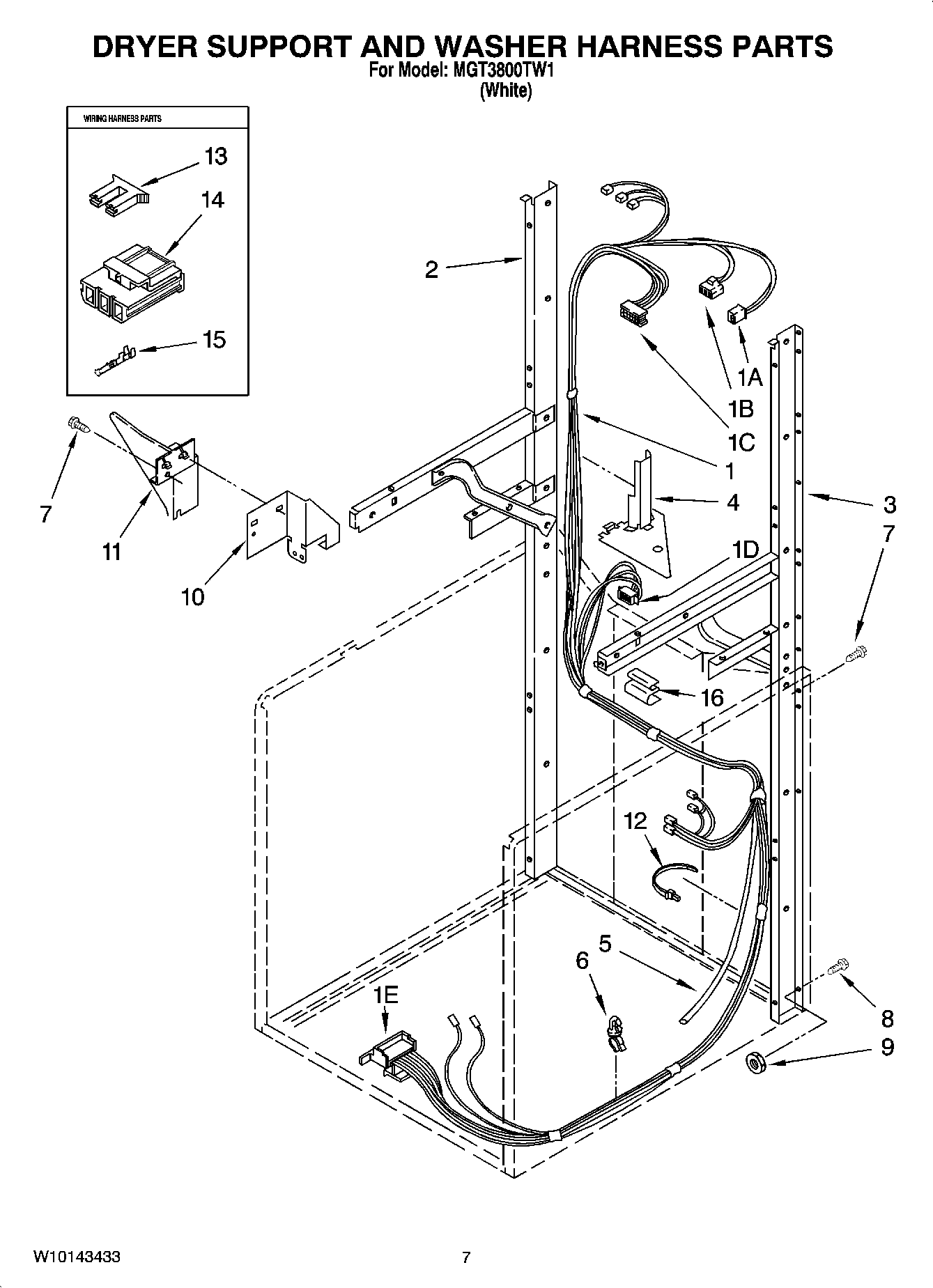

MGT3800TW1 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

MGT3800TW1 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

Written by

in

MGT3800TW1 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

Products

PositionProduct
1MAY W10139637
1CTimer, Block Disconnect (Natural)
1BConnector
1EBlock, Disconnect
1DReceptacle, 3 Way
1APlug, 3 Way
2MAY 3388851
3MAY 3388850
4MAY 3390609
5MAY 8545438
6Clip, Harness (1)
7SCREW
8Bolt, 5/16-18 x 1/2 (4)
9MAY 3393930
10MAY 3392232
11MAY 3390336
12Tie, Cable
13Connector, H-Pod
14Connector, Pressure Switch
15Terminal
15Terminal
16Harness, Protector
