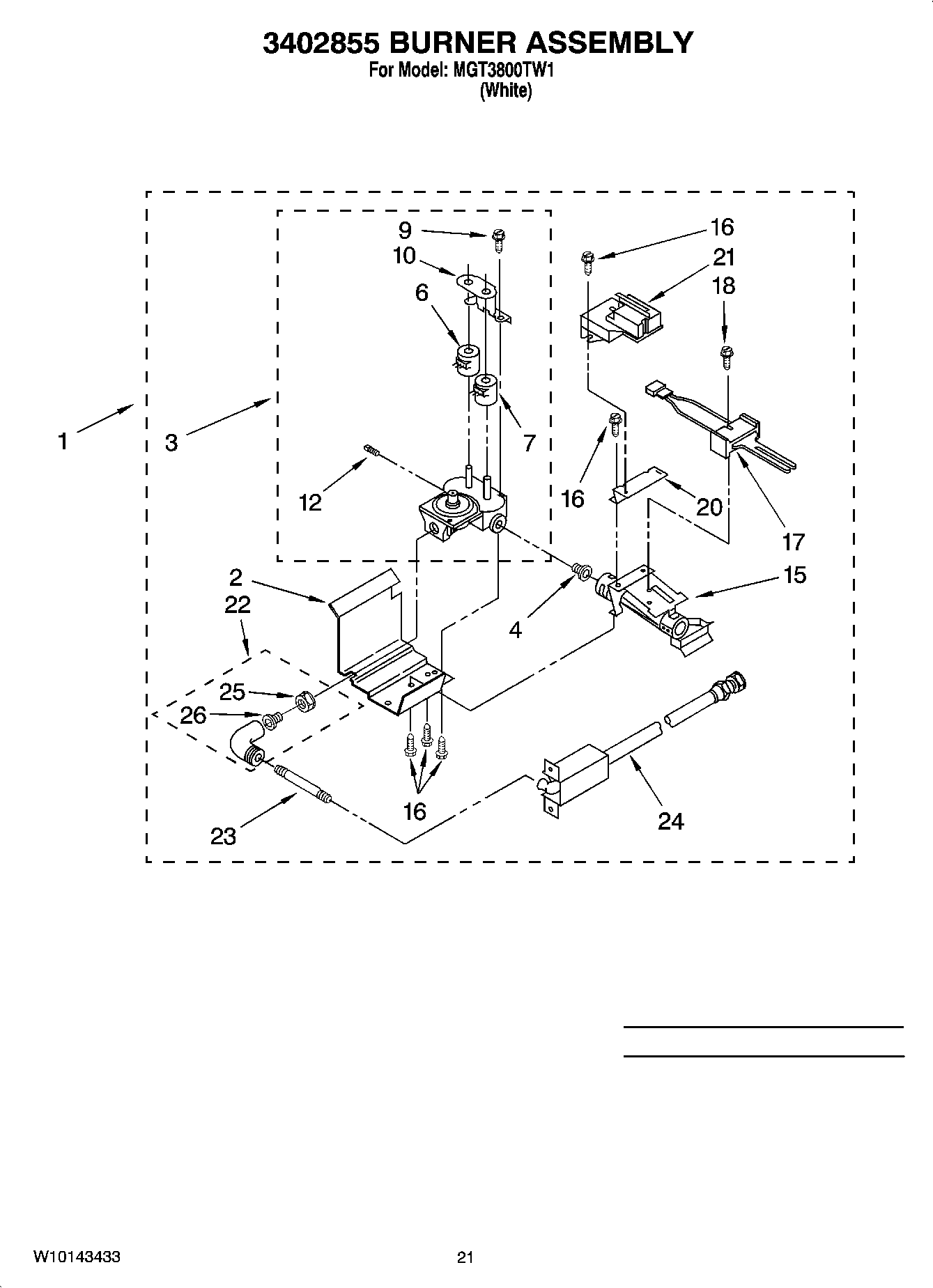

MGT3800TW1 15 – 3402855 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	MAY 3391335
NI	MAY 3392235
NI	MAY 3403498
NI	CONNECTOR, 2-POSITION (GAS VALVE)
NI	CNTRL-ELEC
NI	MAY 285208
NI	SEALER, GASKET (.20 FL. OZ.) (6ML)
NI	MAY 350572
NI	MAY 3391885
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	MAY 4392899
NI	PAINT, BULK (1 qt.) (Biscuit)
NI	MAY 4392901
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NI	Connector (PTS) Relay
1	MAY 3401795
2	MAY 3391699
3	MAY 3401776
4	Orifice, Burner (Type 4 (Butane))
4	Orifice (Natural Gas)
6	COIL, 60 HZ (SPLIT) (3TERMINAL) (PILOT POSITION)
7	MAY 694540
9	SCREW, COIL
10	MAY 694538
12	MAY 239822
15	MAY 3392268
16	SCREW
17	MAY 686590
18	MAY 3393909
20	MAY 697409
21	MAY 338906
22	MAY 3406051
23	MAY 3391845
24	MAY 3391118
25	MAY 233076
26	MAY 3393767
