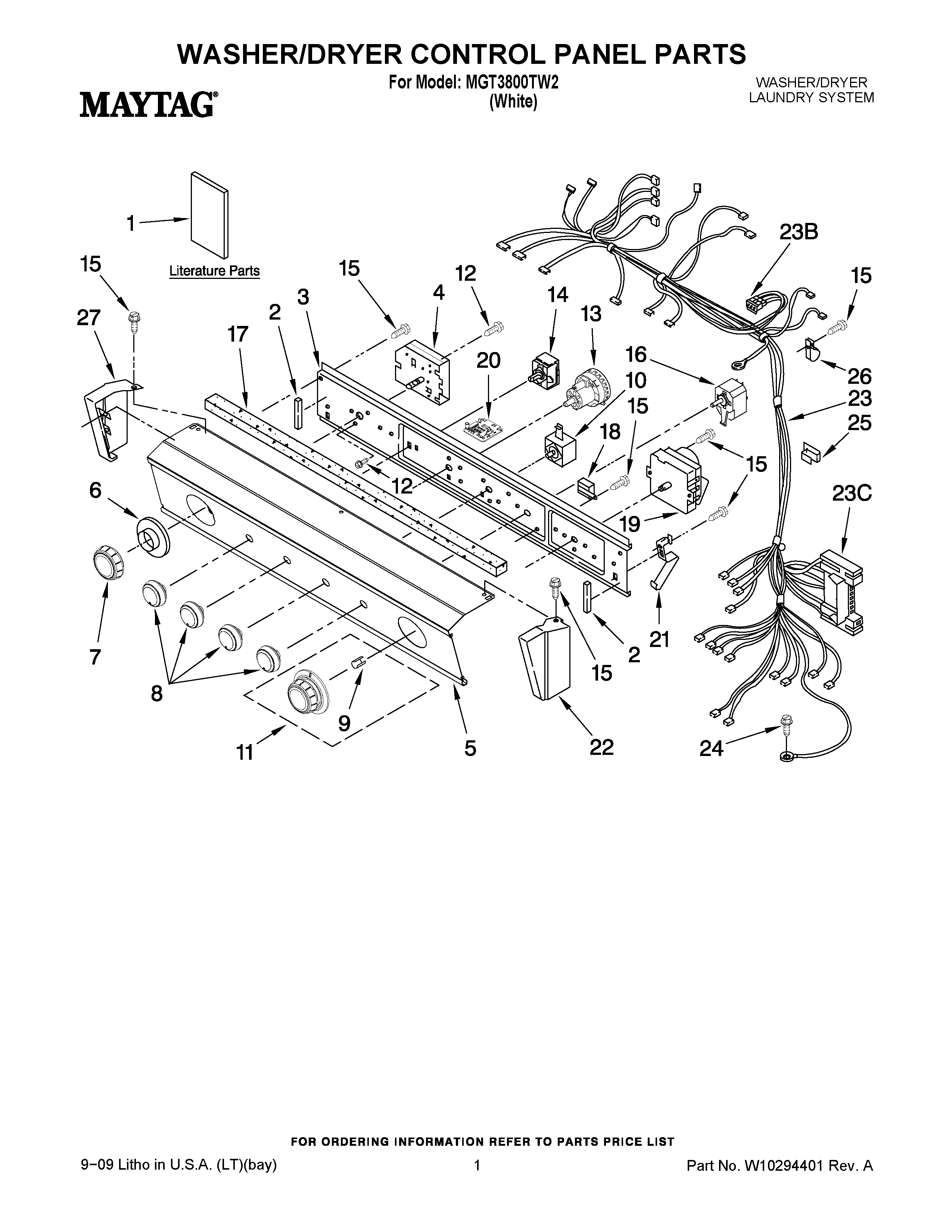

MGT3800TW2 01 – WASHER/DRYER CONTROL PANEL PARTS

MGT3800TW2 01 – WASHER/DRYER CONTROL PANEL PARTS

Written by

in

MGT3800TW2 01 – WASHER/DRYER CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10222381
1MAY W10172273
1MAY W10114285
1MAY W10196552
1MAY W10117755
2MAY 3390688
3MAY 8528583
4MAY W10124193
5MAY W10124093
6Dial, (Washer)
7Knob, Timer (Washer)
8Knob, Control (3)
9CLIP, SPRING
10MAY 3405156
11Knob, Timer
12Screw, 10-32 x 5/16
13MAY W10112533
14MAY W10114118
15SCREW,8-18 X 3/8
16MAY W10117655
17MAY 8521965
18MAY 694419
19MAY W10113816
20MAY 8558178
21MAY 3389453
22End Cap (RH)
23BMAY 2154470
23MAY W10139466
23CCONNECTOR (MOTOR)
24Screw, 8-18 x 5/8 (External Ground)
25Clip, Harness (2)
26MAY 3390604
27End Cap (LH)
