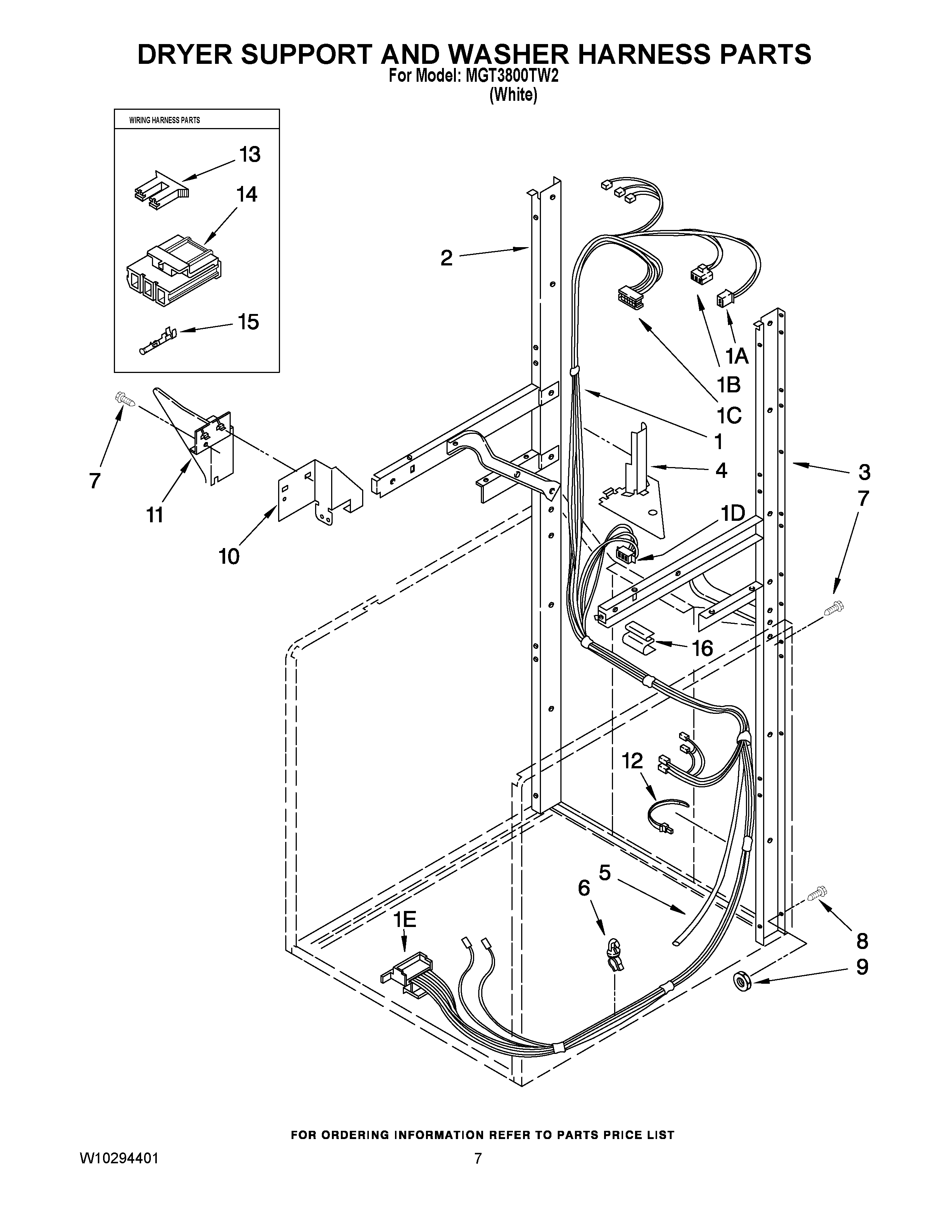

MGT3800TW2 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

Products

PositionProduct
1APlug, 3 Way
1CTimer, Block Disconnect (Natural)
1BConnector
1MAY W10139637
1DReceptacle, 3 Way
1EBlock, Disconnect
2MAY 3388851
3MAY 3388850
4MAY 3390609
5MAY 8545438
6Clip, Harness (1)
7SCREW
8Bolt, 5/16-18 x 1/2 (4)
9Nut
10MAY 3392232
11MAY 3390336
12Clip, Harness (2)
13Connector, H-Pod
14Connector, Pressure Switch
15Terminal
15Terminal
16Harness, Protector
