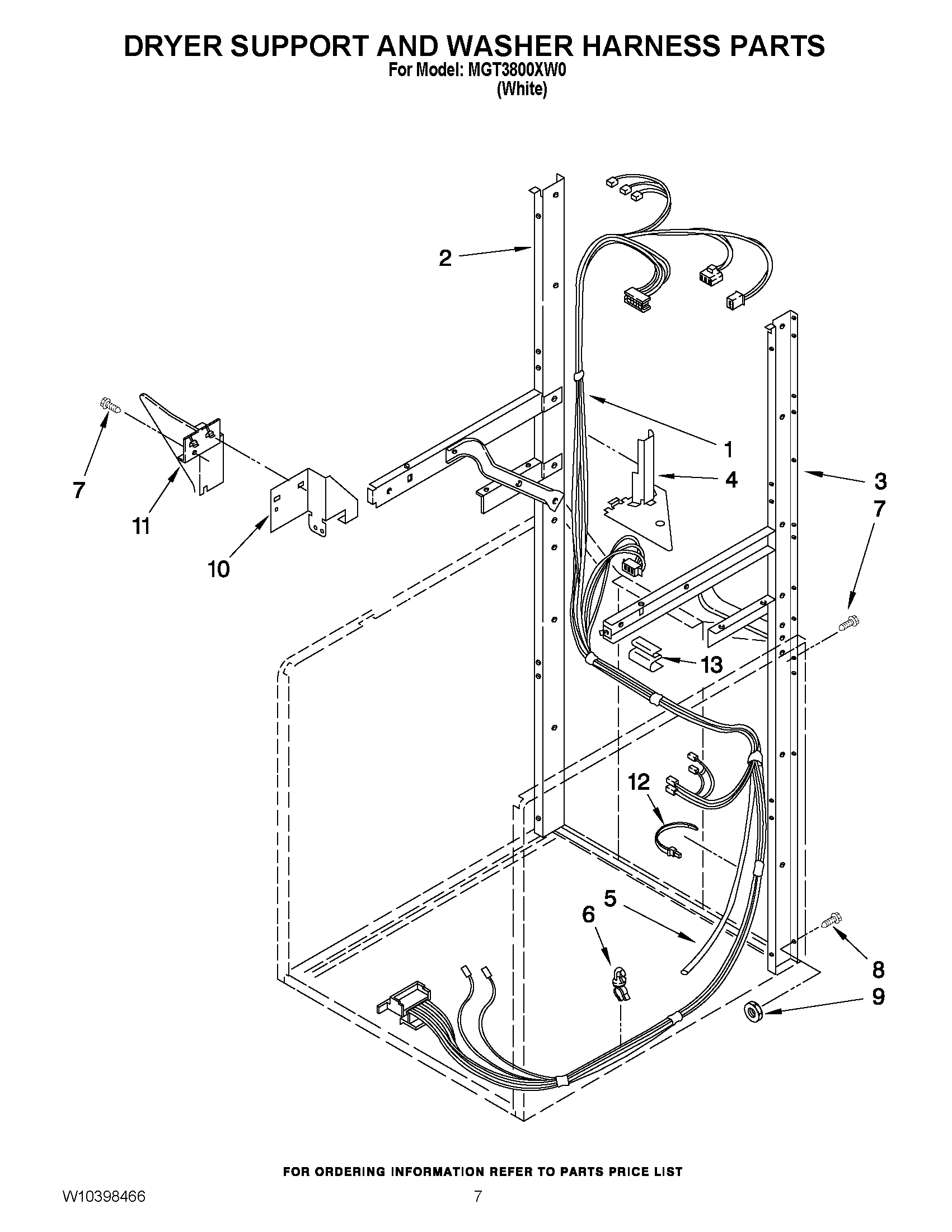

MGT3800XW0 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

MGT3800XW0 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

Written by

in

MGT3800XW0 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

Products

PositionProduct
1MAY W10364163
2MAY 3388851
3MAY 3388850
4MAY 3390609
5MAY W10368080
6Clip, Harness (1)
7SCREW
8Bolt, 5/16-18 x 1/2 (4)
9Nut
10MAY 3392232
11MAY 3390336
12Clip, Harness (2)
13Harness, Protector
