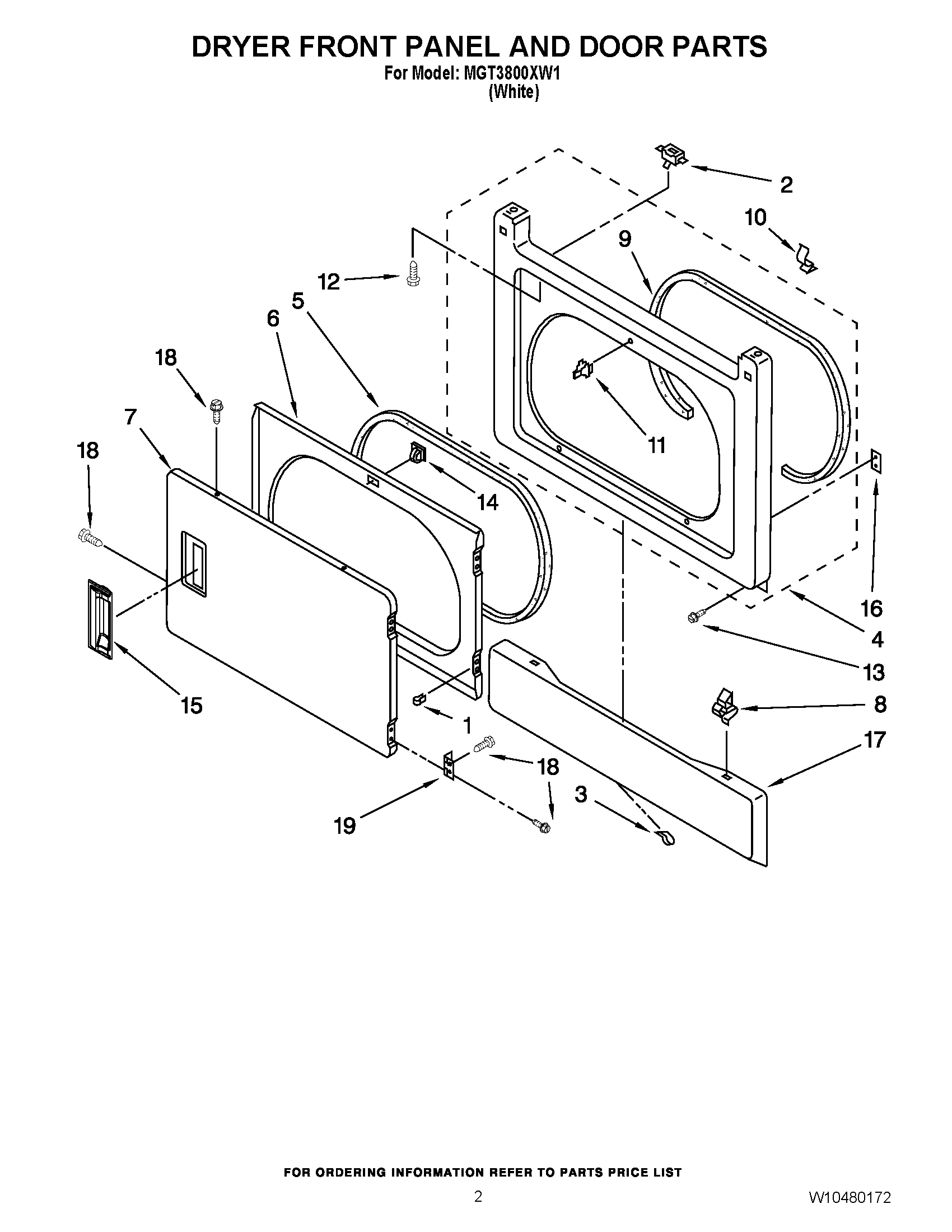

MGT3800XW1 02 – DRYER FRONT PANEL AND DOOR PARTS

MGT3800XW1 02 – DRYER FRONT PANEL AND DOOR PARTS

Written by

in

MGT3800XW1 02 – DRYER FRONT PANEL AND DOOR PARTS

Products

PositionProduct
1Nut, Inner Door (4)
2MAY 3391902
3Clip, Ground
4MAY 3392547
5MAY 3390735
6MAY W10323061
7DOOR, FRONT
8RETAINER
9MAY 3387242
10MAY W10134186
11MAY 696144
12SCREW
13SCREW, 10-16 X 1/2
14MAY 3392538
15Handle, Door (White)
16MAY 3390902
17MAY 3388958
18MAY 342055
19Hinge & Pin Assembly (2)
