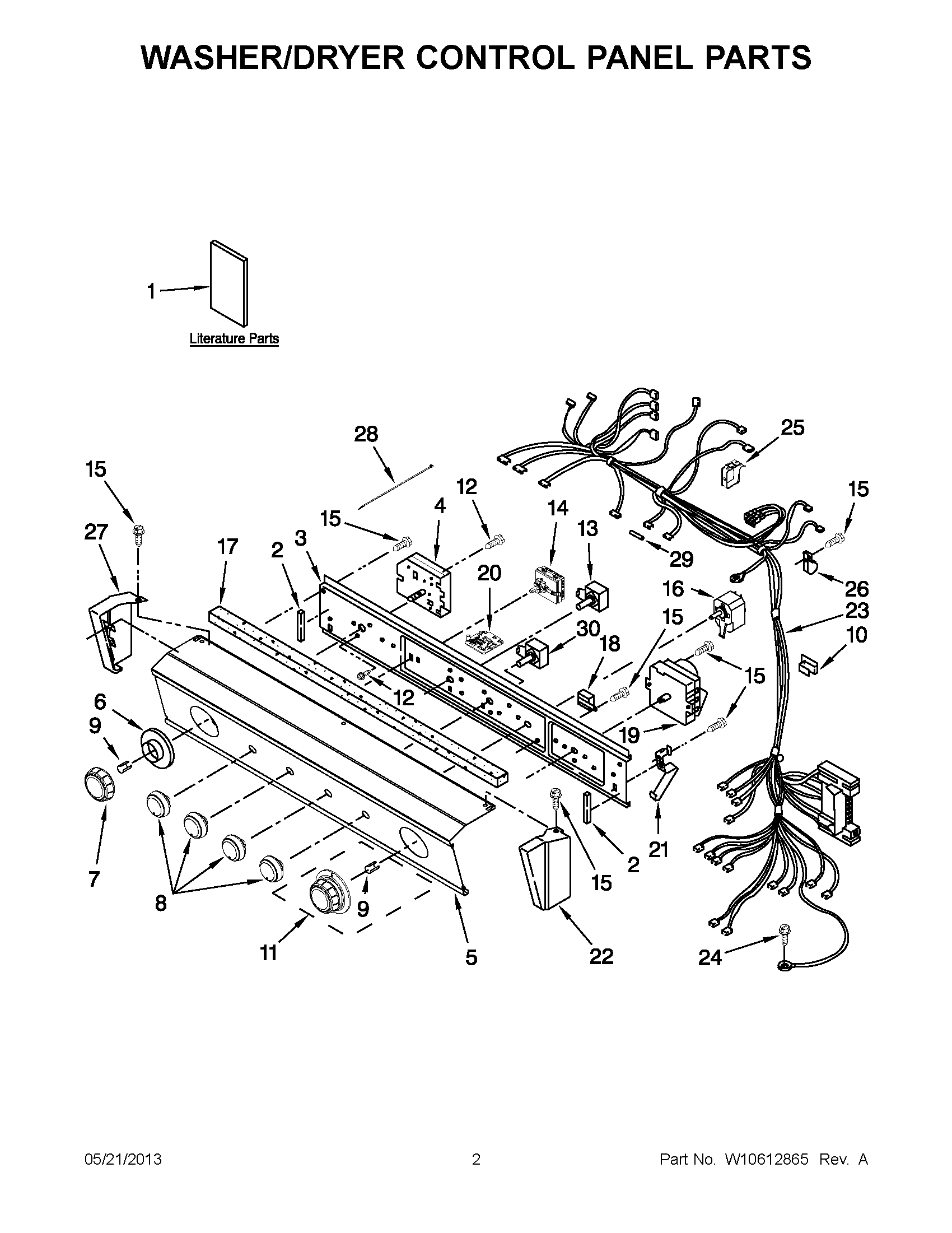

MGT3800XW2 01 – WASHER/DRYER CONTROL PANEL PARTS

MGT3800XW2 01 – WASHER/DRYER CONTROL PANEL PARTS

Written by

in

MGT3800XW2 01 – WASHER/DRYER CONTROL PANEL PARTS

Products

Position	Product
1	MAY W10343072
1	MAY W10562798
1	MAY W10356101
1	MAY W10601996
2	MAY 3390688
3	MAY 8528583
4	MAY W10124193
5	MAY W10339548
6	Dial, (Washer)
7	Knob, Timer (Washer)
8	Knob, Control (3)
9	CLIP, SPRING
10	MAY W10134186
11	Knob, Timer
12	Screw, 10-32 x 5/16
13	MAY W10544357
14	MAY W10114118
15	SCREW,8-18 X 3/8
16	MAY W10117655
17	MAY 8521965
18	MAY 694419
19	MAY W10113816
20	MAY W10476828
21	MAY 3389453
22	End Cap (RH)
23	MAY W10470715
24	MAY 8533974
25	Clip, Harness (2)
26	MAY 3390604
27	End Cap (LH)
28	TIE WIRE
29	HOSE, PRESSURE SWITCH (3-LEVEL)
30	MAY 3949188
