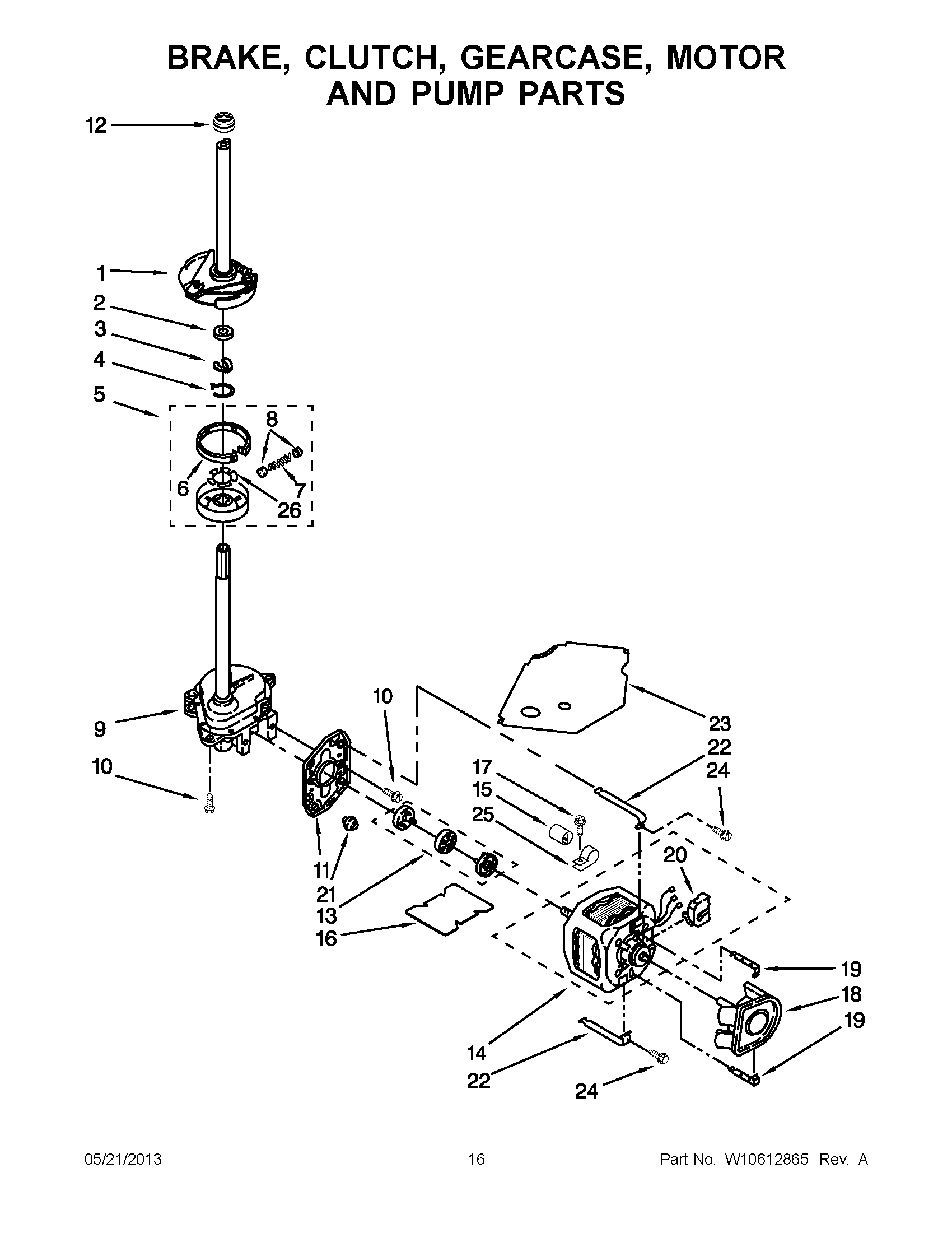

MGT3800XW2 08 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1Brake And Drive Tube (Complete) (Refer To Page 18 For Further Breakdown)
2MAY 63292
3MAY 62697
4MAY 63283
5MAY 3951311
6Band And Lining (Includes Illus. 7 & 8)
7SPRING & DAMPER ASSEMBLY
8MAY 62646
9Gearcase (Complete)(Refer To Page 17 For Further Breakdown)
10Screw, 5/16-24 x 5/8
11MAY 62611
12MAY 8577374
13Coupling, Motor & Isolating
14MAY 661600
15MAY 8572717
16MAY 8316060
17Screw, Mixing Valve Mounting
18MAY 3363892
19Retainer, Pump
20MAY 62850
21MAY 62691
22MAY W10086010
23MAY 3362089
24MAY 3387485
25MAY 3949496
26MAY 3355454
