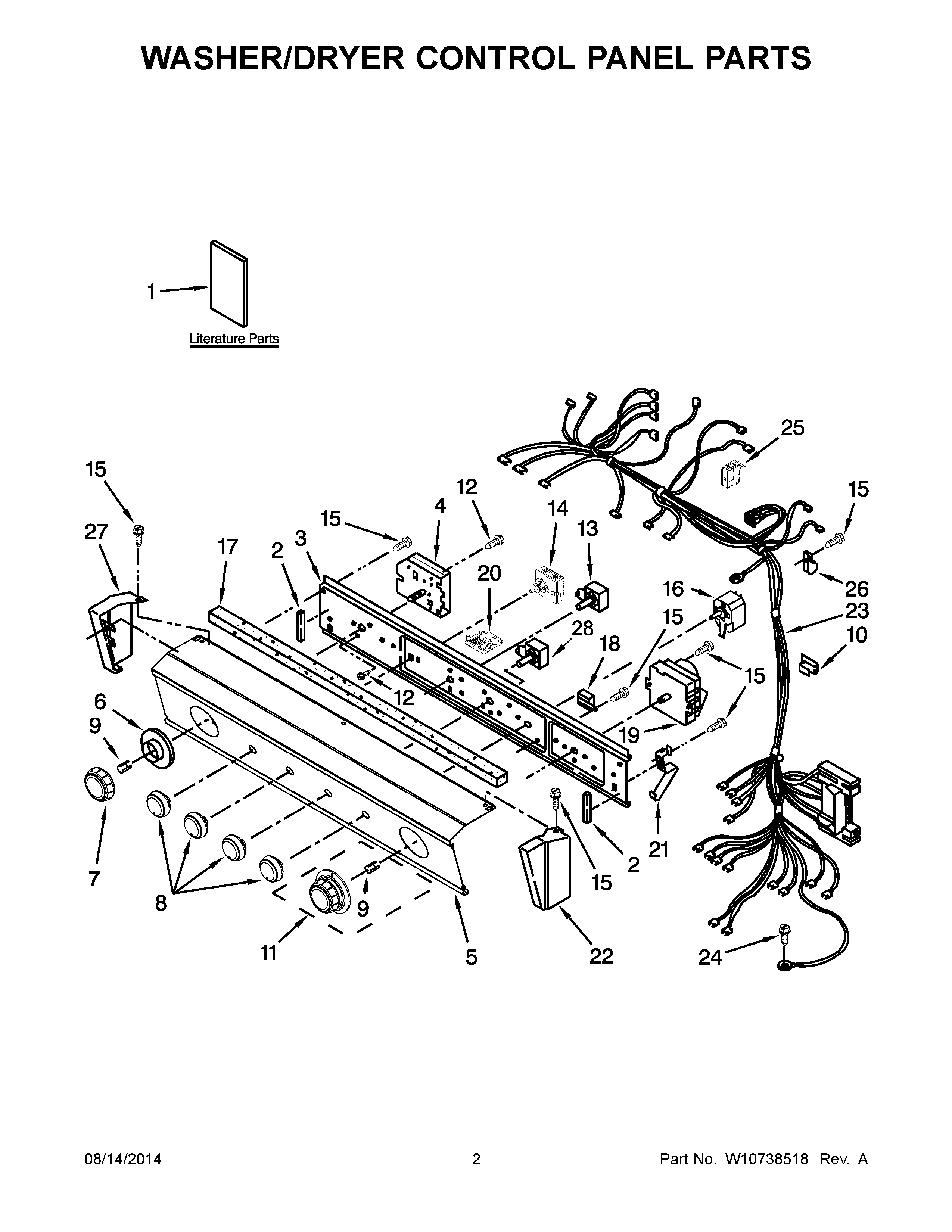

MGT3800XW3 02 – WASHER/DRYER CONTROL PANEL PARTS

MGT3800XW3 02 – WASHER/DRYER CONTROL PANEL PARTS

Written by

in

MGT3800XW3 02 – WASHER/DRYER CONTROL PANEL PARTS

Products

PositionProduct
1AMAY W10343072
1CMAY W10601996
1MAY W10356101
1BMAY W10685957
2MAY 3390688
3MAY 8528583
4MAY W10124193
5MAY W10339548
6Dial, (Washer)
7Knob, Timer (Washer)
8Knob, Control (3)
9CLIP, SPRING
10MAY W10134186
11Knob, Timer
12Screw, 10-32 x 5/16
13MAY W10544357
14MAY W10114118
15SCREW,8-18 X 3/8
16MAY W10117655
17MAY 8521965
18MAY 694419
19MAY W10642932
20MAY W10476828
21MAY 3389453
22End Cap (RH)
23MAY W10640727
24MAY 8533974
25Clip, Harness (2)
26MAY 3390604
27End Cap (LH)
28MAY 3949188
