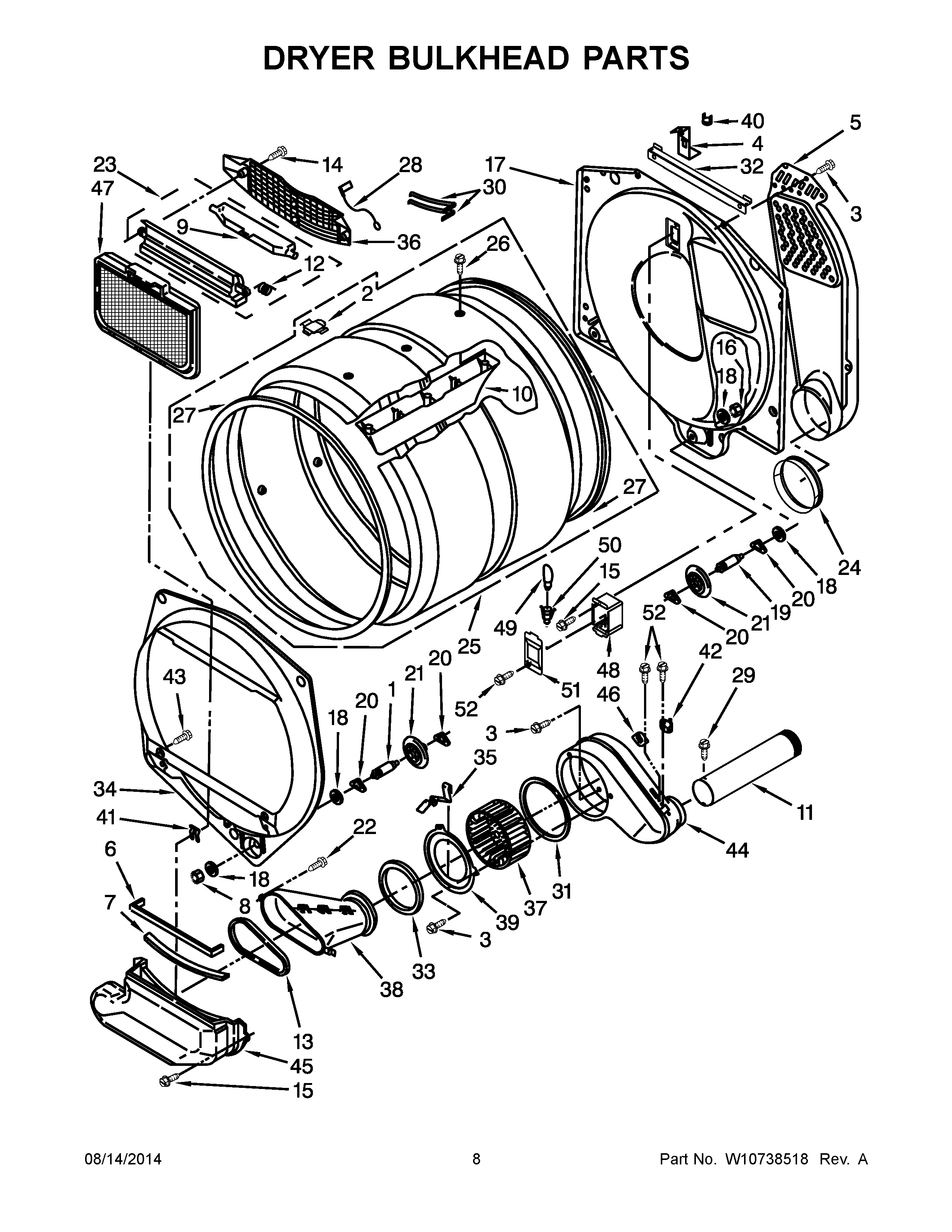

MGT3800XW3 05 – DRYER BULKHEAD PARTS
Written by
in
MGT3800XW3 05 – DRYER BULKHEAD PARTS
Products
Position
Product
1
SHAFT, DRUM ROLLER RIGHT HAND THREAD
2
Plug, Drum Hole
3
SCREW
4
MAY 3392226
5
MAY 3392157
6
MAY 697813
7
MAY 3391906
8
NUT, HEX
9
MAY W10685668
10
MAY 3389449
11
PIPE, EXHAUST
12
Spring, Lint Screen Door
13
MAY 3391685
14
SCREW
15
SCREW
16
NUT, HEX (LEFT HAND THREAD)
17
MAY 8520836
18
WASHER
19
SHAFT, DRUM ROLLER – LEFT HAND THREAD
20
WASHER, TRI RING
21
ROLLER, SUPPORT
22
SCREW
23
ASSEMBLY, OUTLET HOUSING
24
Colar-Air Duct
25
MAY W10518375
26
MAY W10219342
27
MAY W10495828
28
Wire
29
MAY 8533971
30
SENSOR, ELECTRODE
31
SEAL, PLATE COVER
32
MAY 8571651
33
MAY 8566209
34
BULKHEAD, FRONT
35
MAY 3390935
36
GRILL, OUTLET
37
MAY 697772
38
Duct, Transition (Includes Illus. No.33)
39
Plate, Blower
40
FIXED, THERMOSTAT (205~F)
41
STRAIN-RELIEF CLIP
42
MAY 3387134
43
Screw, 8-18 x 1/2
44
MAY 8544362
45
Lint Duct Assembly (Includes Illus. 7 & 13)
46
Fuse, Thermal (91 C)
47
MAY 3389644
48
MAY 3977373
49
MAY 3406124
50
MAY W10214261
51
MAY 3402841
52
Screw
←
