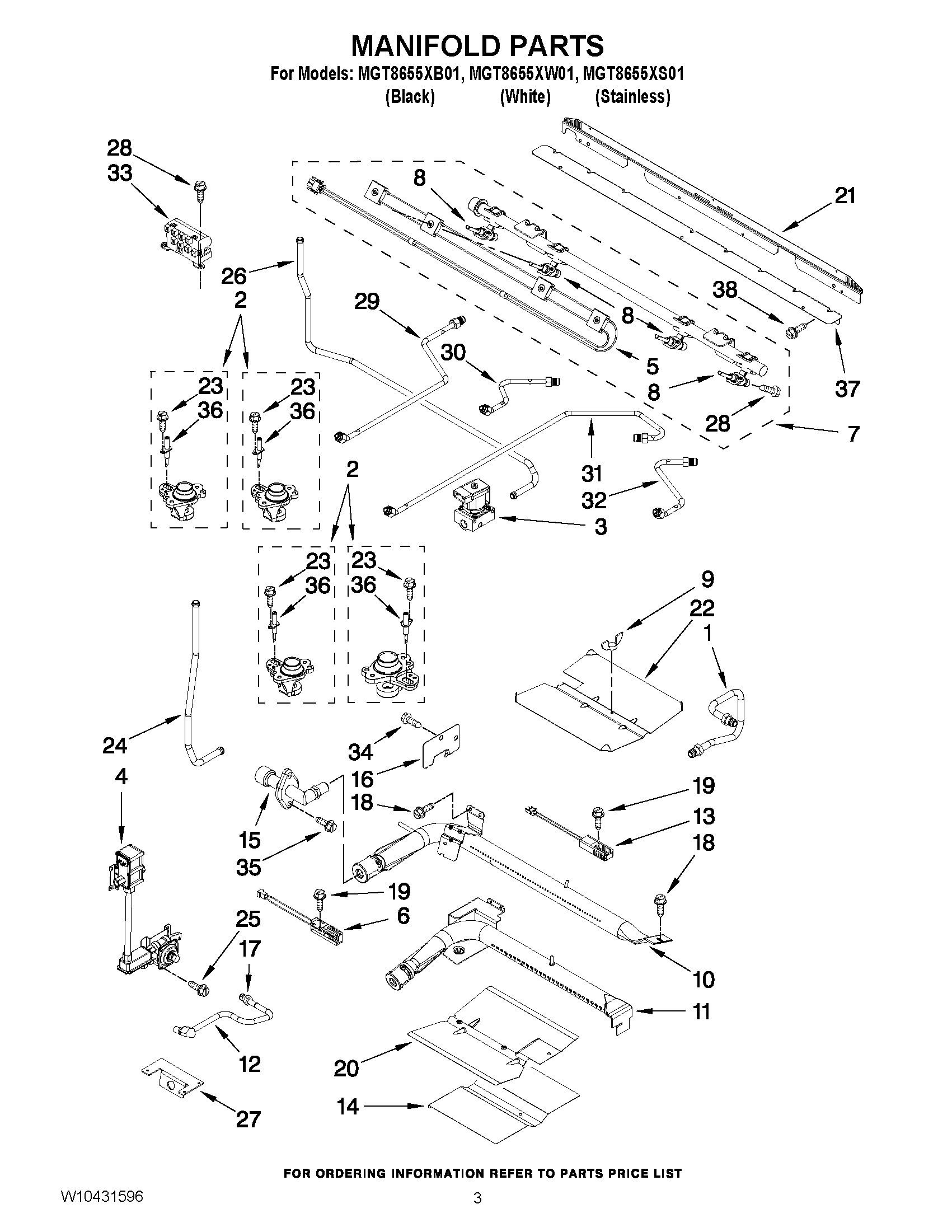

MGT8655XS01 03 – MANIFOLD PARTS

Products

Position	Product
NI	MAY W10324646
NI	MAY W10328517
1	MAY W10319002
2	HOLDER, ORIFICE (RIGHT REAR)
2	HOLDER, ORIFICE (RIGHT REAR)
2	HOLDER, ORIFICE (LEFT FRONT)
3	MAY 9758382
4	MAY W10293834
5	MAY W10204717
6	MAY W10324738
7	MAY W10204706
8	VALVE (5K) (LEFT REAR & RIGHT REAR)
8	VALVE (16K) (LEFT FRONT & RIGHT FRONT)
9	NUT, WING
10	MAY W10315768
11	MAY W10272526
12	MAY W10342661
12	MAY W10342662
13	Igniter (Bake)
14	MAY W10298865
15	MAY W10292293
16	MAY 4005F421-45
17	MAY 7103P195-60
18	MAY 7101P426- 60
20	MAY W10272528
21	BRACKET, MANIFOLD REAR COVER
22	MAY 3601F358-45
23	SCREW (10-24X5/16-NI)
24	MAY W10295050
25	MAY 7101P635-60
26	MAY W10295055
27	MAY W10272520
28	HEAD, BURNER (LR/RR/LF)
29	TUBING, LR
30	MAY W10323463
31	MAY W10323467
32	MAY W10323466
33	MAY 7431P054-60
34	MAY 7101P434-60
35	SCREW (2)
36	MAY W10407676
37	MAY W10276466
38	MAY 7101P653-60
