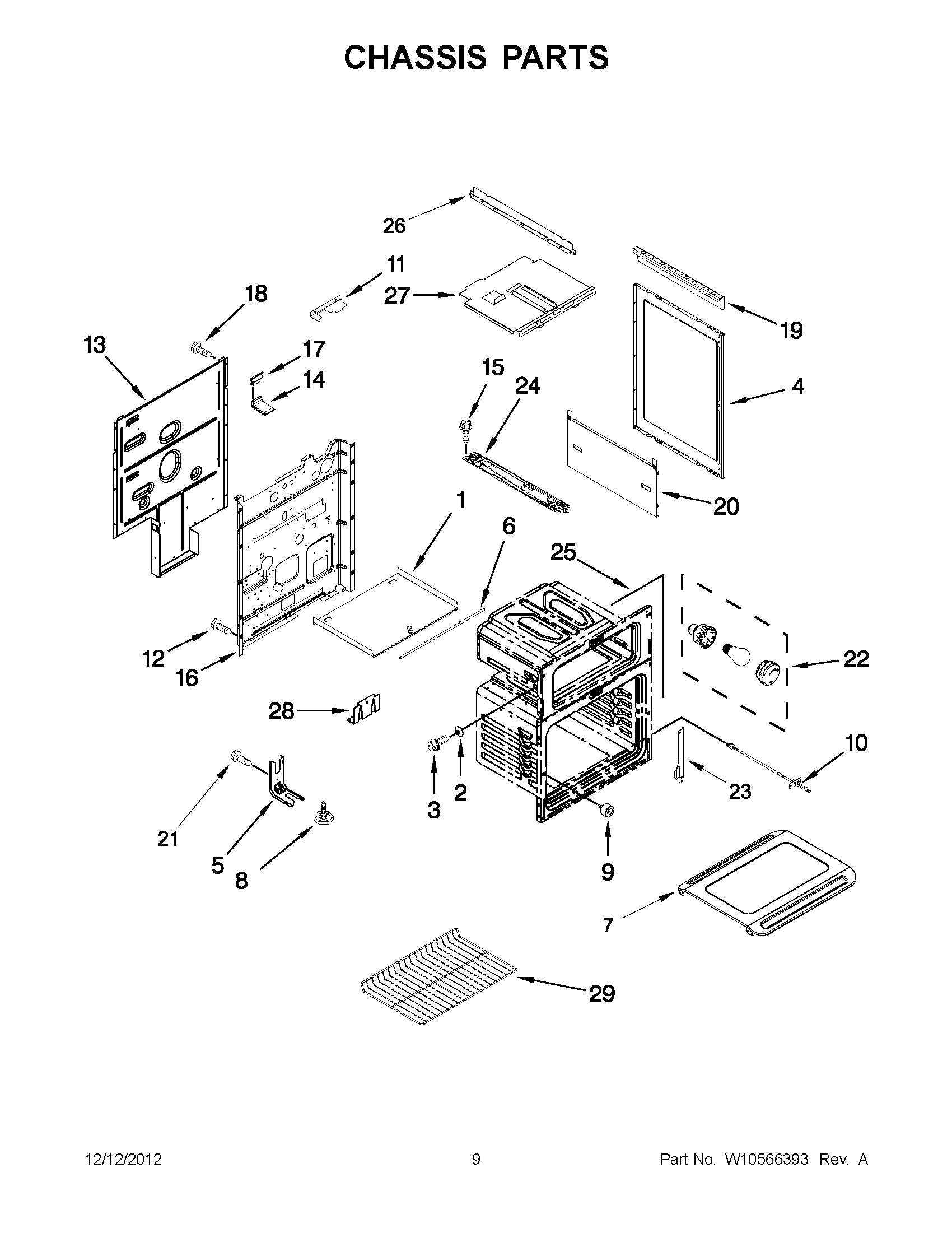

MGT8655XS03 04 – CHASSIS PARTS

Products

Position	Product
NI	MAY W10344586
NI	INSULATION, BACK (LOWER)
NI	INSULATION, WRAPPER (UPPER)
NI	INSULATION, WRAPPER (LOWER)
NI	INSULATION, BACK (UPPER)
1	MAY W10319038
2	MAY W10237689
3	MAY W10267456
4	MAY W10330375
4	MAY W10330376
5	BRACKET, ANTI-TIP
6	MAY W10319000
7	BOTTOM, OVEN GAS
8	Leg, Leveling
9	ASSEMBLY, BUMPER
10	SENSOR, OVEN
11	MAY W10268558
12	MAY 7101P635-60
13	MAY W10261387
14	MAY W10272519
14	ASSEMBLY, UPPER FLUE
15	Screw (Black) (2)
16	MAY W10260580
17	ASSEMBLY, OUTLET FLUE (LOWER)
17	ASSEMBLY, OUTLET FLUE (UPPER)
18	MAY 4449040
19	BRACKET, U CHANNEL
20	SHIELD, SIDE INSULATION
21	SCREW, ANTI-TIP KIT
22	MAY W10512757
23	MAY W10410461
23	MAY W10410463
24	MAY W10471348
25	MAY W10318928
25	MAY W10269069
27	MAY W10324643
28	MAY W10260703
29	MAY W10179152
