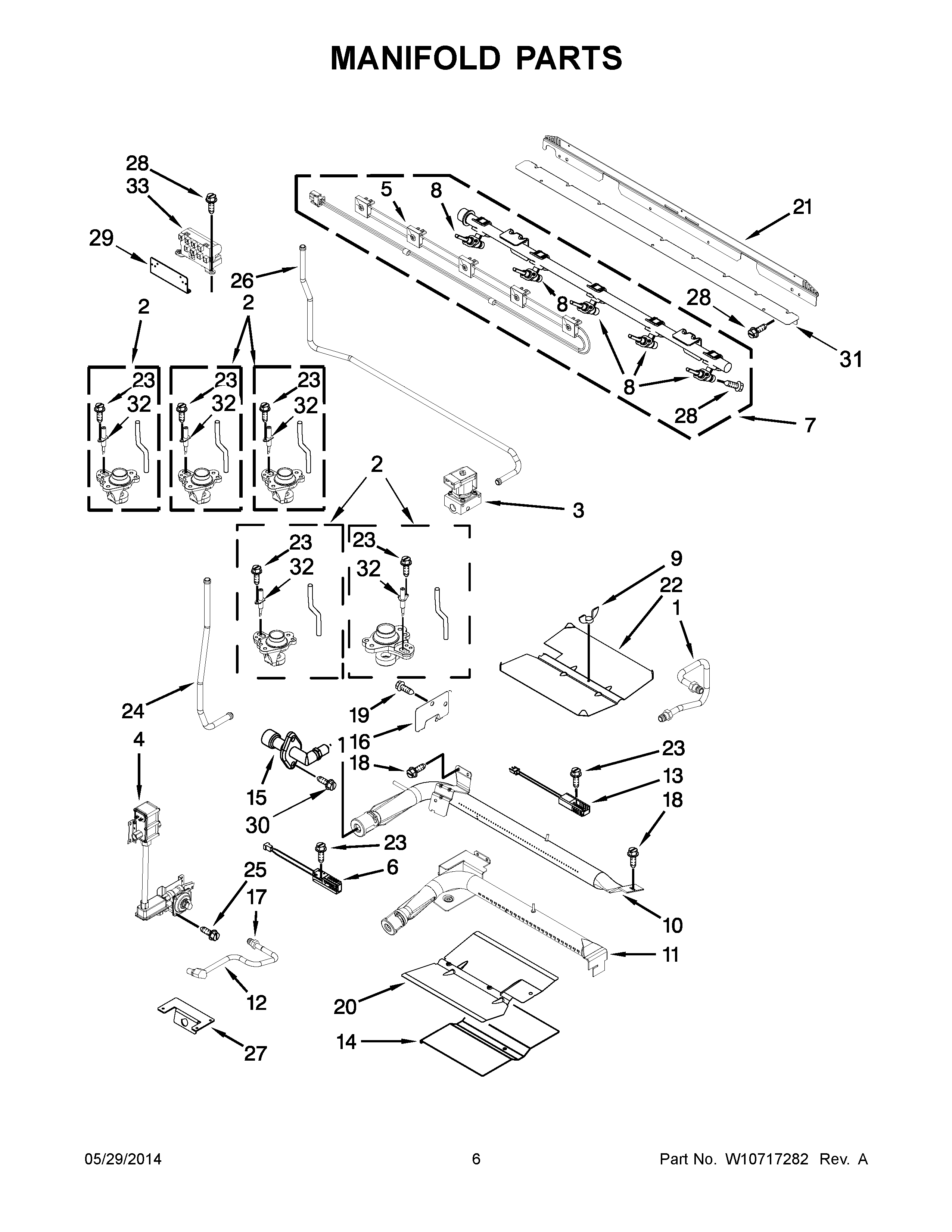

MGT8720DE00 04 – MANIFOLD PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10324646
NI	MAY W10591270
1	MAY W10319002
2	MAY W10273135
2	ORIFICE HOLDER, 9K RIGHT FRONT
2	ORIFICE HOLDER, 9K RIGHT REAR
2	HOLDER, ORIFICE (16K) (LEFT FRONT)
2	MAY W10273138
3	MAY W10368614
4	MAY W10546238
5	MAY W10204718
6	MAY W10324738
7	MAY W10204703
8	VALVE (16K) (LEFT FRONT & RIGHT FRONT)
8	VALVE (5K) (LEFT REAR & RIGHT REAR)
9	NUT, WING
10	MAY W10315768
11	MAY W10272526
12	MAY W10342661
12	MAY W10342662
13	Igniter (Bake)
14	MAY W10298865
15	MAY W10292293
16	MAY 4005F421-45
17	MAY 7103P195-60
18	MAY 7101P426- 60
19	MAY 7101P434-60
20	MAY W10272528
21	BRACKET, MANIFOLD REAR COVER
22	MAY 3601F358-45
23	SCREW (10-24X5/16-NI)
24	MAY W10524331
25	MAY 7101P635-60
26	MAY W10295055
27	MAY W10272520
28	MAY 7101P653-60
29	BRACKET, SPARK MODULE
30	SCREW (2)
31	MAY W10276466
32	MAY W10407676
33	MAY 7431P053-60
