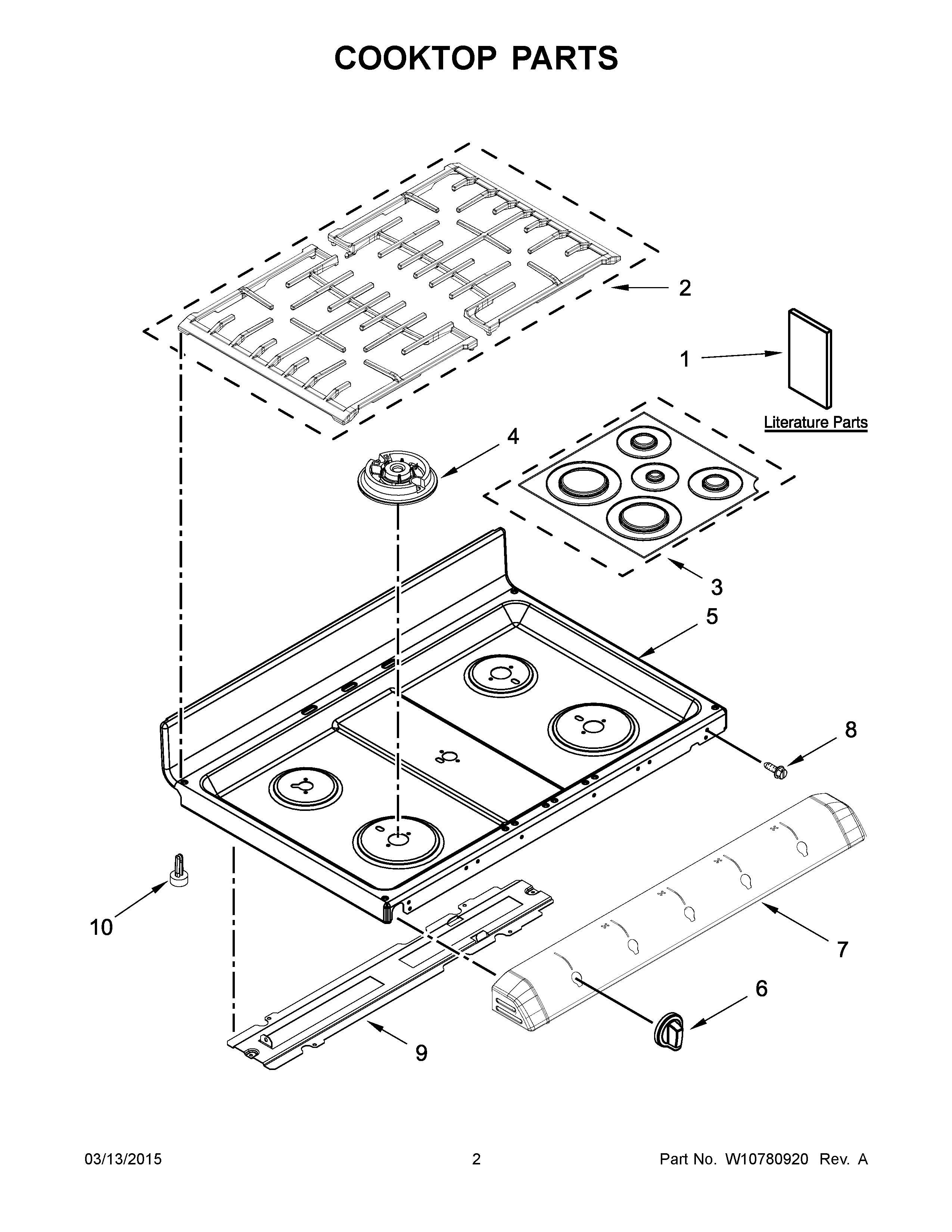

MGT8720DE02 02 – COOKTOP PARTSadmin2025-04-26T11:31:02+00:00MGT8720DE02 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| NI | WIRING HARNESS PARTS, HARNESS MAIN |
| NI | MAY 7111P017-60 |
| NI | WIRING HARNESS PARTS, HARNESS, SPARK |
| NI | SCREW, GROUND (GRN) |
| NI | WIRING HARNESS PARTS, HARNESS, SENSOR |
| NI | CLIP, WIRE |
| NI | HARNESS, EOL (MRC) |
| 1A | MAY W10748897 |
| 1 | MAY W10526071 |
| 1B | MAY W10647745 |
| 1D | TIPS, SAFE COOKING (FRENCH) |
| 1C | TIPS, SAFE COOKING (ENGLISH) |
| 2 | KIT, GRATES (BLACK) |
| 3 | MAY W10324251 |
| 4 | HEAD, BURNER (17.5K) (RIGHT FRONT) |
| 4A | HEAD, BURNER (6K) (LEFT REAR) |
| 4B | HEAD, BURNER (12K) (LEFT FRONT AND RIGHT REAR) |
| 5A | MAY W10204722 |
| 5 | MAY W10204721 |
| 6 | MAY W10650403 |
| 7B | MAY W10664102 |
| 7A | MAY W10664100 |
| 7 | MAY W10664101 |
| 8 | Screw (2) (Black) |
| 9 | MAY W10518258 |
| 10 | GLIDE, MAIN TOP |
