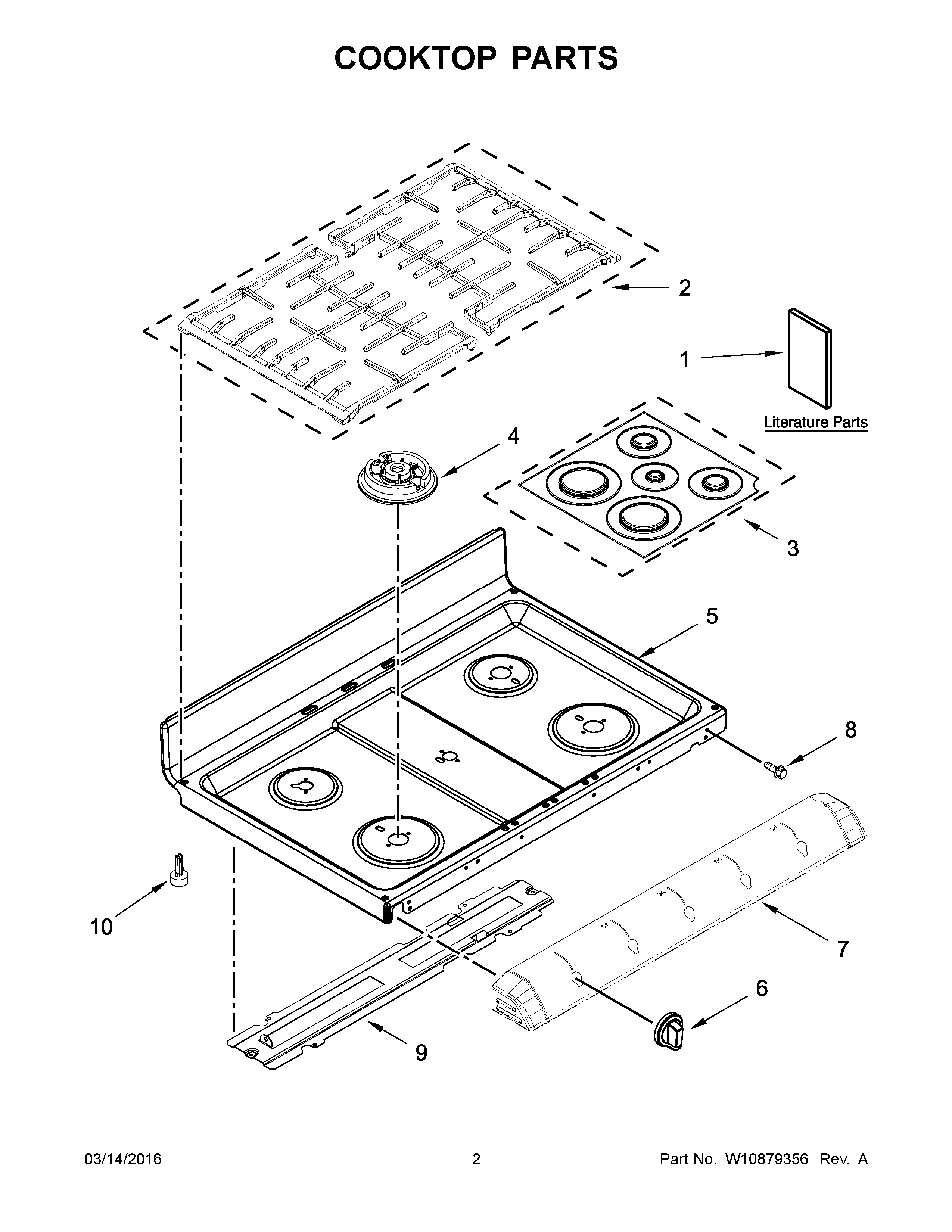

MGT8720DH05 02 – COOKTOP PARTS

Products

Position	Product
NI	MAY W10745687
NI	CLIP, WIRE
NI	MAY W10745683
NI	HARNESS, EOL (MRC)
NI	LINER (NOT A SERVICEABLE PART)
NI	SCREW, GROUND (GRN)
NI	WIRING HARNESS PARTS, HARNESS, SPARK
NI	MAY 7111P017-60
1C	TIPS, SAFE COOKING (ENGLISH)
1A	MAY W10748897
1	MAY W10526071
1B	MAY W10647745
1D	TIPS, SAFE COOKING (FRENCH)
2	KIT, GRATES (BLACK)
3	MAY W10324251
4A	HEAD, BURNER (6K) (LEFT REAR)
4	HEAD, BURNER (17.5K) (RIGHT FRONT)
4B	HEAD, BURNER (12K) (LEFT FRONT AND RIGHT REAR)
5A	MAY W10204722
5	MAY W10204721
6	MAY W10650403
7B	MAY W10664102
7A	MAY W10664100
7	MAY W10664101
8	Screw (2) (Black)
9	MAY W10518258
10	GLIDE, MAIN TOP
