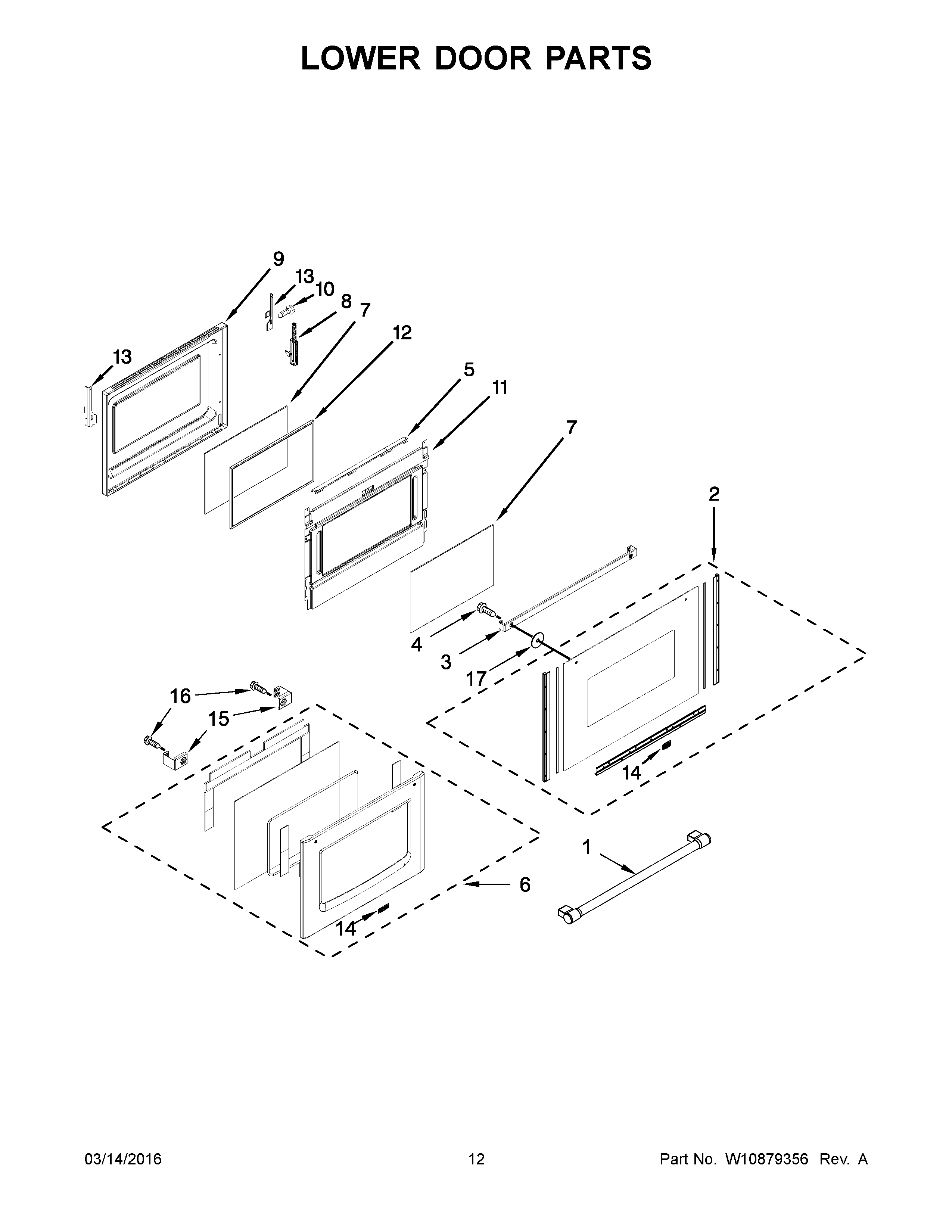

MGT8720DH05 07 – LOWER DOOR PARTS

MGT8720DH05 07 – LOWER DOOR PARTS

Written by

in

MGT8720DH05 07 – LOWER DOOR PARTS

Products

PositionProduct
1MAY W10653408
1AMAY W10665842
1BASSEMBLY, DOOR HANDLE (STAINLESS MODELS)
2AASSEMBLY, DOOR (WHITE)
2ASSEMBLY, DOOR (BLACK)
3MAY W10294695
4SCREW
5FRAME, GLASS
6MAY W10638790
7GLASS, INNER
8AHINGE, DOOR (RIGHT)
8HINGE, DOOR (LEFT)
9MAY W10272698
10MAY 4449040
11MAY W10340464
12MAY W10321285
13RECEIVER (LEFT)
13ARECEIVER (RIGHT)
14BADGE
15BRACKET, DOOR HANDLE (STAINLESS MODELS ONLY)
16SCREW
17MAY 7109P084-60
