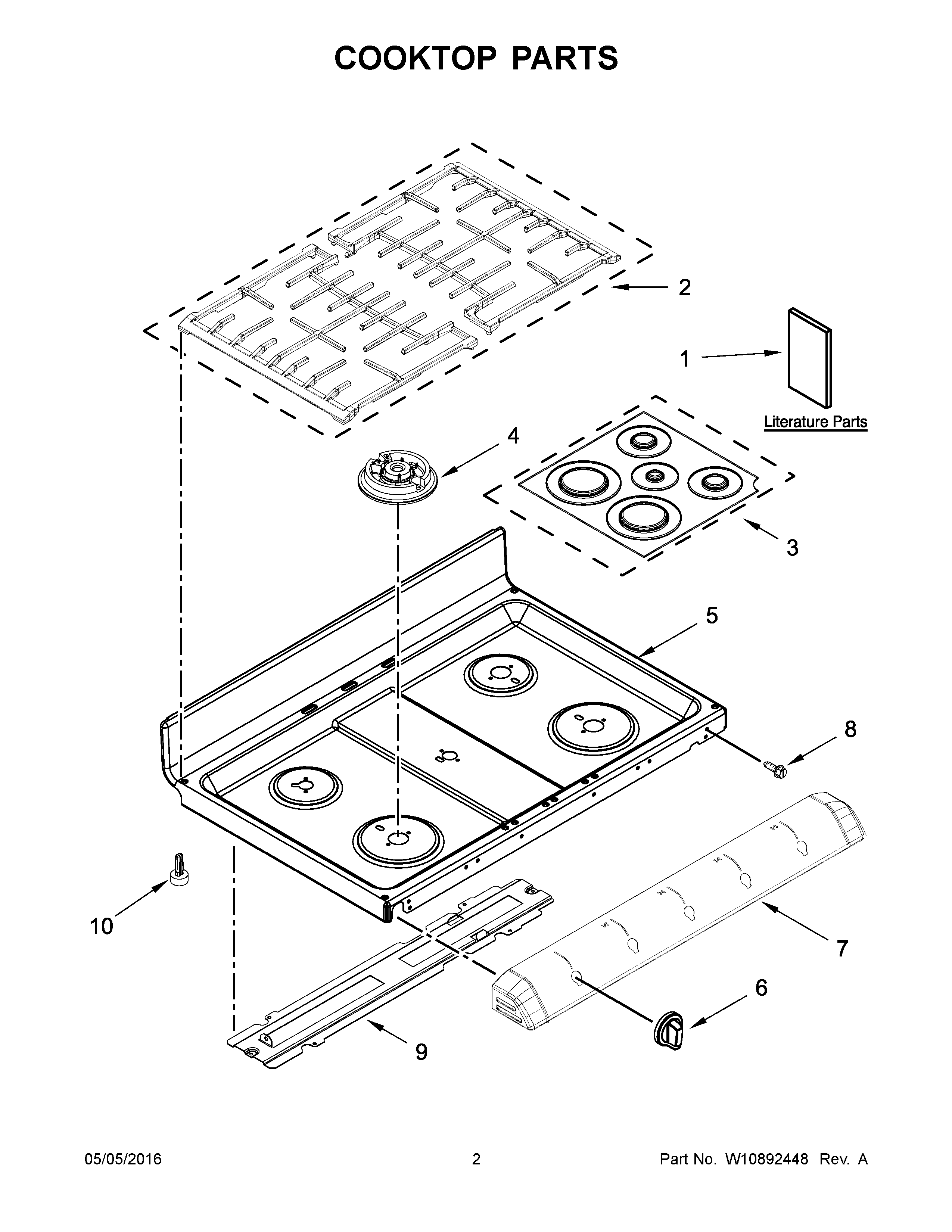

MGT8720DS06 02 – COOKTOP PARTS

MGT8720DS06 02 – COOKTOP PARTS

Written by

in

MGT8720DS06 02 – COOKTOP PARTS

Products

PositionProduct
NIMAY W10745687
NILINER (NOT A SERVICEABLE PART)
NIMAY W10745683
NIHARNESS, EOL (MRC)
NICLIP, WIRE
NISCREW, GROUND (GRN)
NIWIRING HARNESS PARTS, HARNESS, SPARK
NIMAY 7111P017-60
1CTIPS, SAFE COOKING (ENGLISH)
1AMAY W10748897
1MAY W10526071
1BMAY W10647745
1DTIPS, SAFE COOKING (FRENCH)
2KIT, GRATES (BLACK)
3MAY W10324251
4HEAD, BURNER (17.5K) (RIGHT FRONT)
4AHEAD, BURNER (6K) (LEFT REAR)
4BHEAD, BURNER (12K) (LEFT FRONT AND RIGHT REAR)
5AMAY W10204722
5MAY W10204721
6MAY W10650403
7BMAY W10664102
7AMAY W10664100
7MAY W10664101
8AMAY 7101P636-60
8Screw (2) (Black)
9MAY W10518258
10GLIDE, MAIN TOP
