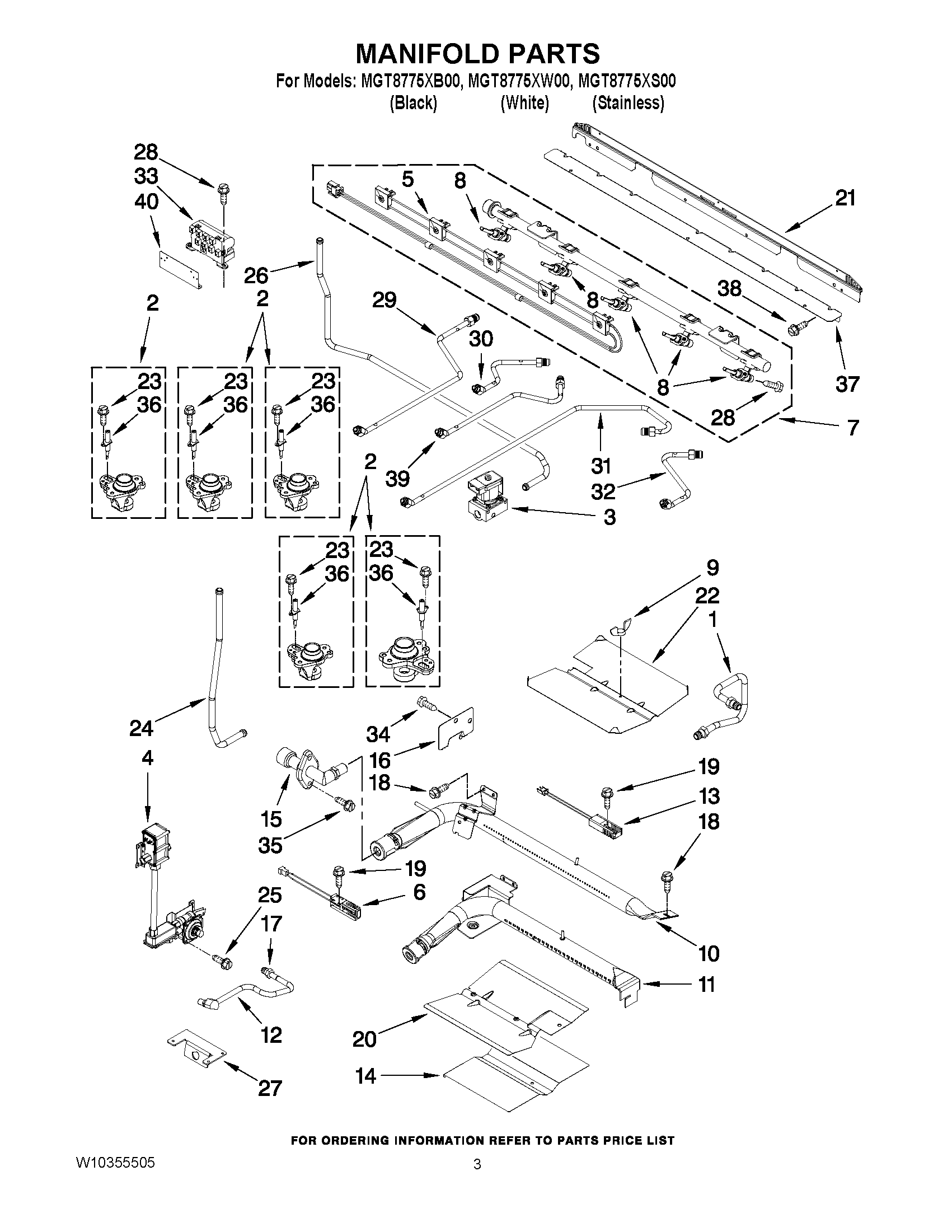

MGT8775XB00 03 – MANIFOLD PARTS

Products

Position	Product
NI	MAY W10311058
NI	MAY W10324646
1	MAY W10319002
2	ORIFICE (LR)
2	ORIFICE (RF)
2	ORIFICE (LF,RR)
3	MAY 9758382
4	MAY W10293834
5	MAY W10204718
6	MAY W10324738
7	MAY W10204703
8	VALVE (16K) (LEFT FRONT & RIGHT FRONT)
8	VALVE (5K) (LEFT REAR & RIGHT REAR)
9	NUT, WING
10	MAY W10315768
11	MAY W10272526
12	MAY W10273105
12	MAY W10273106
13	Igniter (Bake)
14	MAY W10298865
15	MAY W10292293
16	MAY 4005F421-45
17	MAY 7103P195-60
18	MAY 7101P461-60
19	SCREW (10-24X5/16-NI)
20	MAY W10272528
21	BRACKET, MANIFOLD REAR COVER
22	MAY 3601F358-45
23	MAY 8273062
24	MAY W10295050
25	MAY 7101P426- 60
26	MAY W10295055
27	MAY W10272520
28	MAY 7101P388-60
29	MAY W10323464
30	MAY W10323463
31	MAY W10323467
32	MAY W10323466
33	MAY 7431P053-60
34	MAY 7101P434-60
35	SCREW (2)
36	IGNITOR (ALL (EXCEPT FISH))
37	MAY W10276466
38	MAY 7101P653-60
39	MAY W10323465
40	BRACKET, SPARK MODULE
