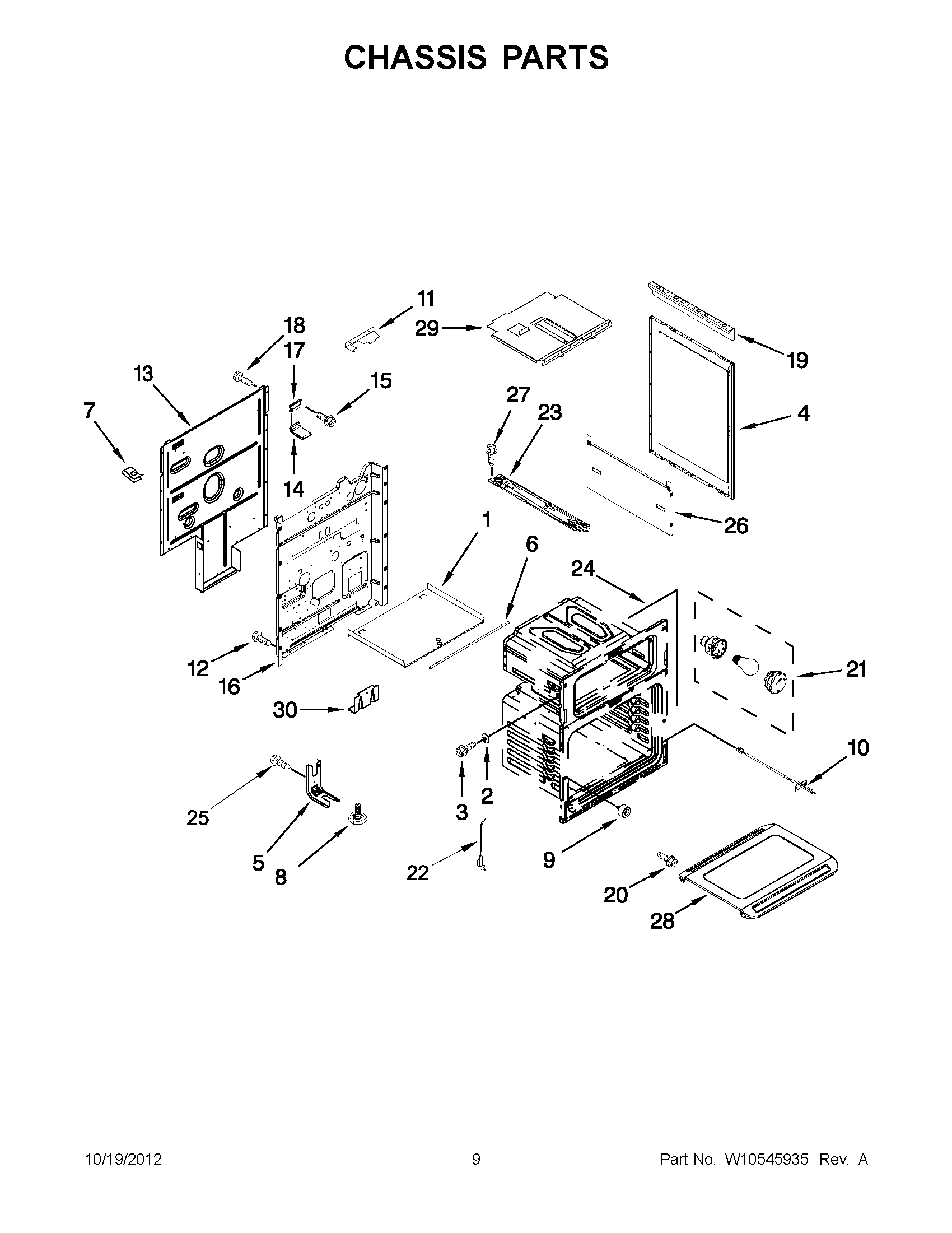

MGT8775XB03 04 – CHASSIS PARTS

Products

Position	Product
NI	MAY W10344586
NI	INSULATION, BACK (UPPER)
NI	INSULATION, WRAPPER (LOWER)
NI	INSULATION, WRAPPER (UPPER)
NI	INSULATION, BACK (LOWER)
1	MAY W10319038
2	MAY W10237689
3	MAY W10267456
4	MAY W10330375
4	MAY W10330376
5	BRACKET, ANTI-TIP
6	MAY W10319000
7	CLIP
8	Leg, Leveling
9	ASSEMBLY, BUMPER
10	SENSOR, OVEN
11	MAY W10268558
12	MAY 7101P635-60
13	MAY W10261387
14	MAY W10272519
14	ASSEMBLY, UPPER FLUE
15	MAY 7101P434-60
16	MAY W10260580
17	ASSEMBLY, OUTLET FLUE (UPPER)
17	ASSEMBLY, OUTLET FLUE (LOWER)
18	MAY 4449040
19	BRACKET, U CHANNEL
20	Screw (2) (Black)
21	MAY W10512757
22	MAY W10410463
22	MAY W10410461
23	MAY W10471348
24	MAY W10318928
24	MAY W10269069
25	SCREW, ANTI-TIP KIT
26	SHIELD, SIDE INSULATION
27	Screw (Black) (2)
28	BOTTOM, OVEN GAS
29	MAY W10324643
30	MAY W10260703
