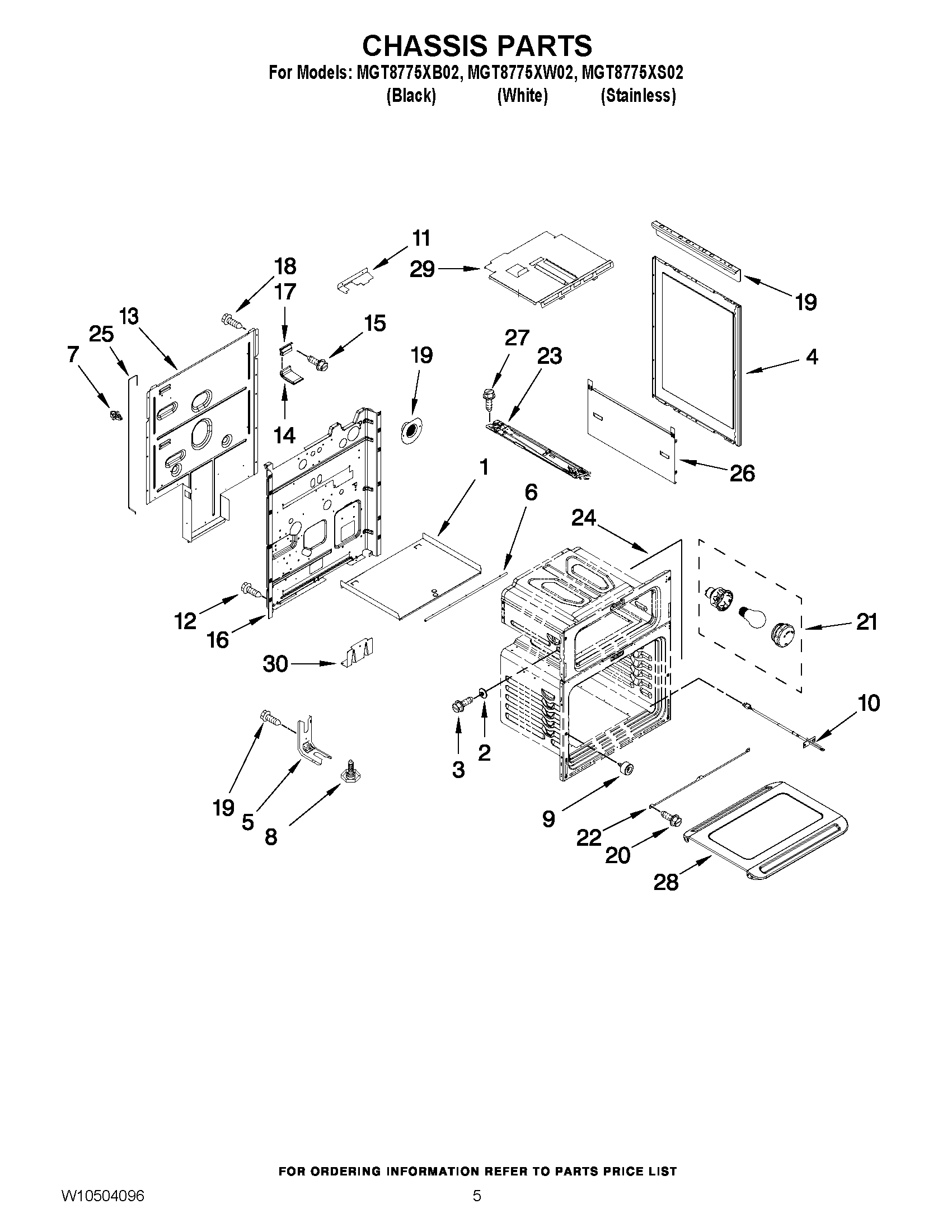

MGT8775XS02 04 – CHASSIS PARTSadmin2025-04-26T11:30:52+00:00MGT8775XS02 04 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | MAY W10344586 |
| NI | INSULATION, BACK (LOWER) |
| NI | INSULATION, WRAPPER (UPPER) |
| NI | INSULATION, WRAPPER (LOWER) |
| NI | INSULATION, BACK (UPPER) |
| 1 | MAY W10319038 |
| 2 | MAY W10237689 |
| 3 | MAY W10267456 |
| 4 | MAY W10330375 |
| 4 | MAY W10330376 |
| 5 | BRACKET, ANTI-TIP |
| 6 | MAY W10319000 |
| 7 | MAY W10284945 |
| 8 | Leg, Leveling |
| 9 | ASSEMBLY, BUMPER |
| 10 | SENSOR, OVEN |
| 11 | MAY W10268558 |
| 12 | MAY 7101P635-60 |
| 13 | MAY W10261387 |
| 14 | ASSEMBLY, UPPER FLUE |
| 14 | MAY W10272519 |
| 15 | MAY 7101P434-60 |
| 16 | MAY W10260580 |
| 17 | ASSEMBLY, OUTLET FLUE (LOWER) |
| 17 | ASSEMBLY, OUTLET FLUE (UPPER) |
| 18 | MAY 4449040 |
| 19 | BRACKET, U CHANNEL |
| 20 | Screw (2) (Black) |
| 21 | MAY W10323374 |
| 22 | MAY W10299886 |
| 23 | MAY W10370650 |
| 24 | MAY W10269069 |
| 24 | MAY W10318928 |
| 25 | MAY W10284949 |
| 26 | SHIELD, SIDE INSULATION |
| 27 | Screw (Black) (2) |
| 28 | BOTTOM, OVEN GAS |
| 29 | MAY W10324643 |
| 30 | MAY W10260703 |
