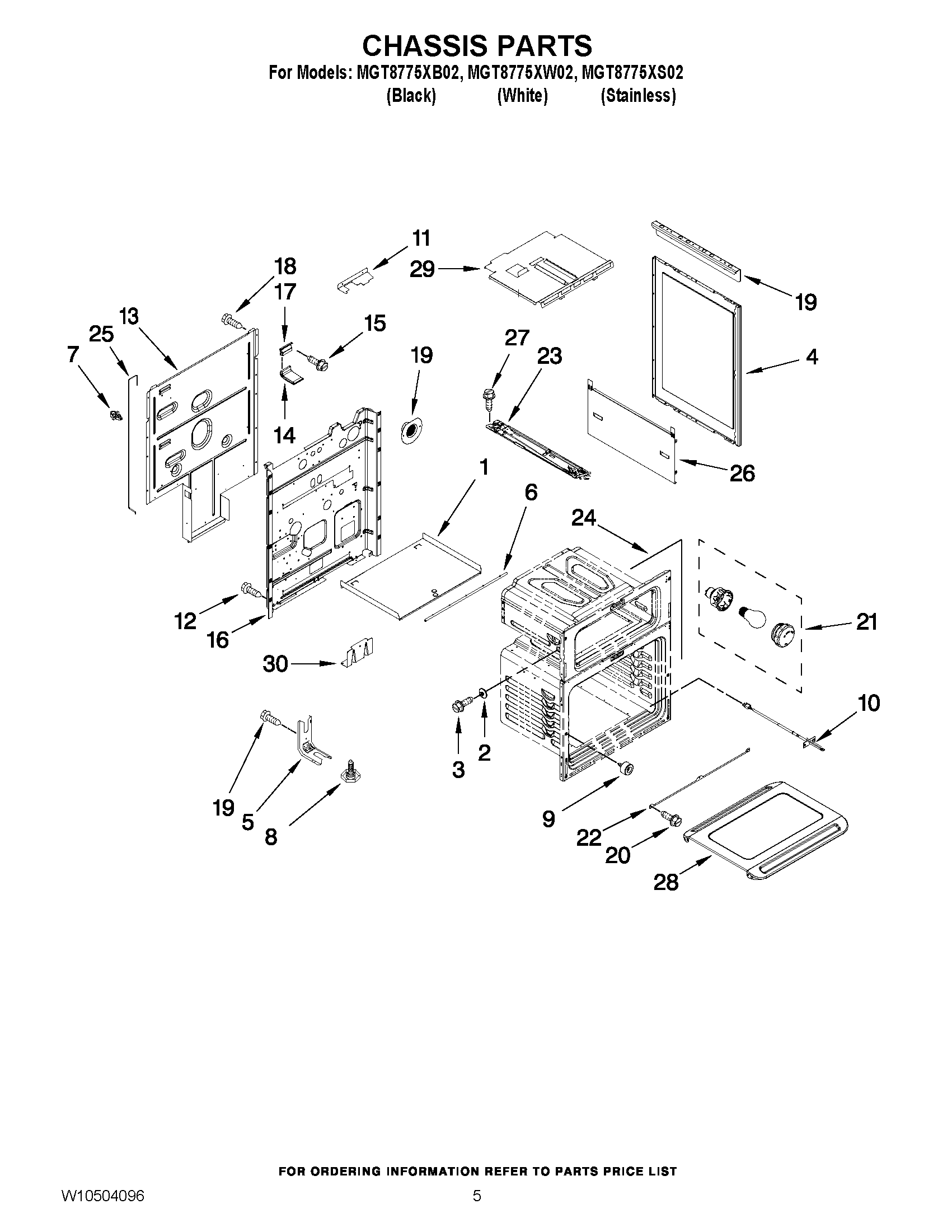

MGT8775XW02 04 – CHASSIS PARTS

Products

Position	Product
NI	MAY W10344586
NI	INSULATION, BACK (LOWER)
NI	INSULATION, WRAPPER (UPPER)
NI	INSULATION, WRAPPER (LOWER)
NI	INSULATION, BACK (UPPER)
1	MAY W10319038
2	MAY W10237689
3	MAY W10267456
4	MAY W10330375
4	MAY W10330376
5	BRACKET, ANTI-TIP
6	MAY W10319000
7	MAY W10284945
8	Leg, Leveling
9	ASSEMBLY, BUMPER
10	SENSOR, OVEN
11	MAY W10268558
12	MAY 7101P635-60
13	MAY W10261387
14	ASSEMBLY, UPPER FLUE
14	MAY W10272519
15	MAY 7101P434-60
16	MAY W10260580
17	ASSEMBLY, OUTLET FLUE (LOWER)
17	ASSEMBLY, OUTLET FLUE (UPPER)
18	MAY 4449040
19	BRACKET, U CHANNEL
20	Screw (2) (Black)
21	MAY W10323374
22	MAY W10299886
23	MAY W10370650
24	MAY W10269069
24	MAY W10318928
25	MAY W10284949
26	SHIELD, SIDE INSULATION
27	Screw (Black) (2)
28	BOTTOM, OVEN GAS
29	MAY W10324643
30	MAY W10260703
