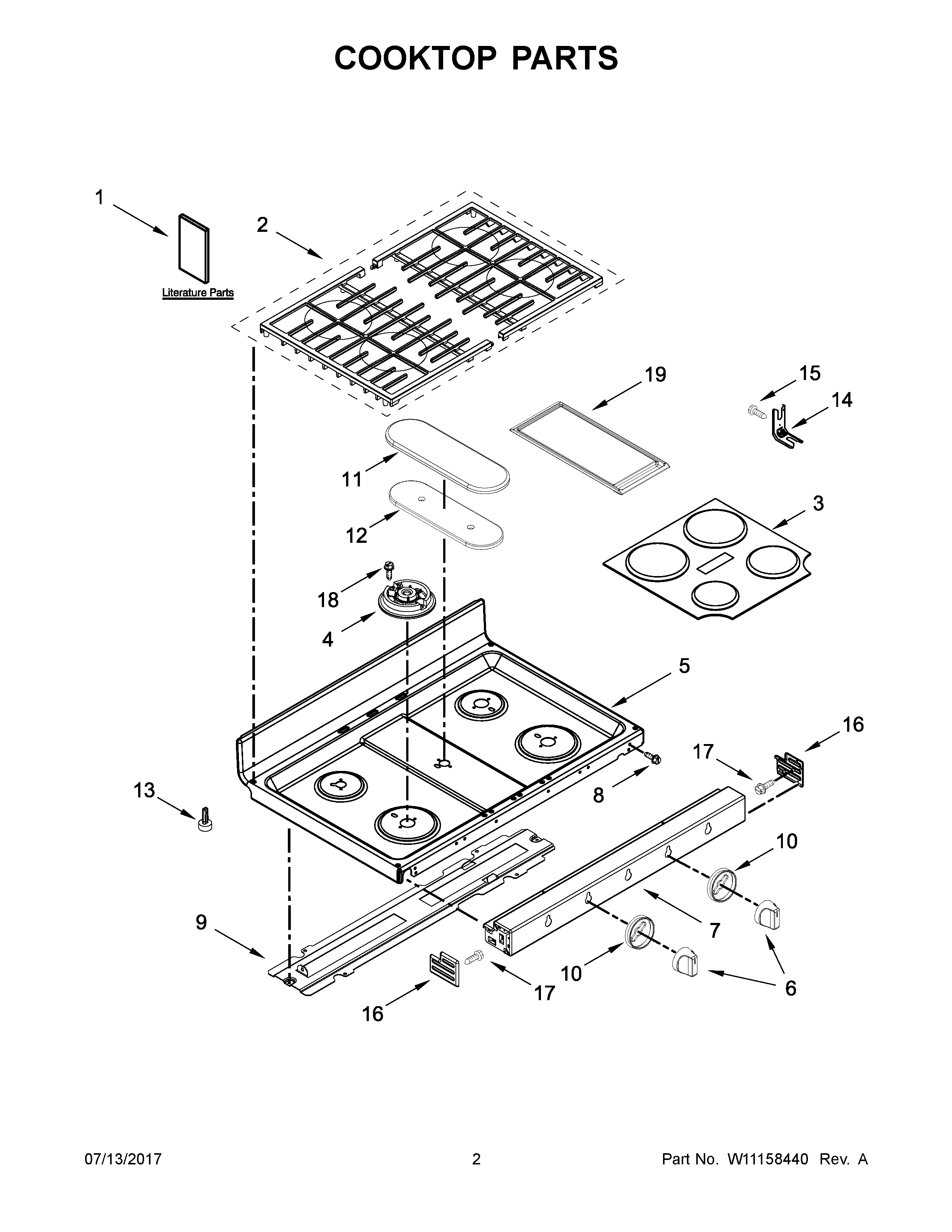

MGT8800FZ00 02 – COOKTOP PARTS

Products

Position	Product
NI	MAY W10745683
NI	HARNESS, EOL (MRC)
NI	MAY W10745674
NI	CLIP, WIRE
NI	SCREW, GROUND (GRN)
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY 7111P017-60
NI	HARNESS, SPARK
NI	MAY 7109P084-60
1	MAY W10526071
1C	TIPS, SAFE COOKING (ENGLISH)
1B	MAY W10647745
1A	MAY W10912995
1D	TIPS, SAFE COOKING (FRENCH)
2	KIT, GRATE
3	KIT, BURNER CAP (BLACK)
4B	HEAD, BURNER (CENTER)
4	HEAD, BURNER (17.5K) (RIGHT FRONT)
4C	HEAD, BURNER (12K) (LEFT FRONT AND RIGHT REAR)
4A	HEAD, BURNER (6K) (LEFT REAR)
5	MAY W10260169
6	MAY W10886658
7	PANEL, MANIFOLD (STAINLESS)
8	Screw (2) (Black)
9	MAY W10518258
10	BEZEL
11	SET, FISH BURNER CAP (BLACK)
12	BASE, BURNER (FISH BURNER ONLY)
13	GLIDE, MAIN TOP
14	BRACKET, ANTI-TIP
15	SCREW, ANTI-TIP KIT
16	CAP, END (STAINLESS (LEFT))
16A	CAP, END (STAINLESS (RIGHT))
17	SCREW
18	SCREW
19	GRIDDLE
