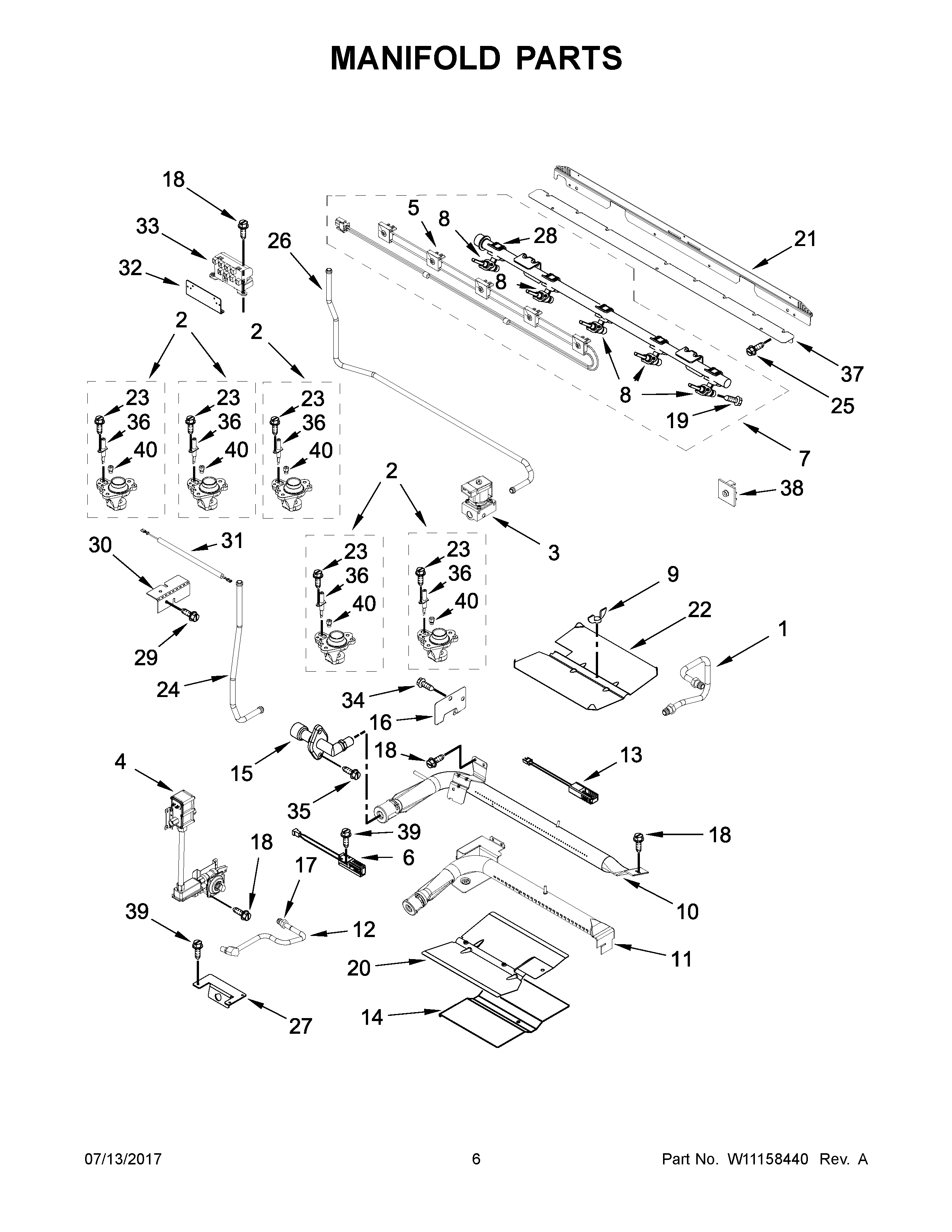

MGT8800FZ00 04 – MANIFOLD PARTSadmin2025-04-26T13:08:57+00:00MGT8800FZ00 04 – MANIFOLD PARTS
Products
| Position | Product |
|---|
| NI | MAY W10591270 |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | MAY W10324646 |
| 1 | MAY W10319002 |
| 2 | HOLDER, ORIFICE (17K) (LEFT FRONT) |
| 2D | HOLDER, ORIFICE (5K) RIGHT REAR) |
| 2A | HOLDER, ORIFICE (5K) (LEFT REAR) |
| 2B | HOLDER, ORIFICE (7K) (CENTER) |
| 2C | HOLDER, ORIFICE (10K) (RIGHT FRONT) |
| 3 | MAY W10368614 |
| 4 | MAY W10546238 |
| 5 | HARNESS, SWITCH |
| 6 | MAY W10324738 |
| 7 | ASSEMBLY, MANIFOLD |
| 8 | VALVE (10K) (LEFT FRONT & RIGHT FRONT) |
| 8A | VALVE (17K) (CENTER) |
| 8B | VALVE (5K) (LEFT REAR & RIGHT REAR) |
| 9 | NUT, WING |
| 10 | MAY W10315768 |
| 11 | MAY W10407912 |
| 12A | MAY W10342661 |
| 12 | MAY W10342662 |
| 13 | Igniter (Bake) |
| 14 | MAY W10298865 |
| 15 | MAY W10292293 |
| 16 | MAY 4005F421-45 |
| 17 | MAY 7103P195-60 |
| 18 | MAY 7101P426- 60 |
| 19 | SCREW, VALVE |
| 20 | MAY W10272528 |
| 21 | BRACKET, MANIFOLD REAR COVER |
| 22 | MAY 3601F358-45 |
| 23 | MAY 8273062 |
| 24 | MAY W10524331 |
| 25 | MAY 7101P653-60 |
| 26 | TUBING (SUPPLY SHUTOFF TO MANIFOLD) |
| 27 | MAY W10272520 |
| 28 | BRACKET, SADDLE VALVE |
| 29 | SCREW |
| 30 | HOLDER, ELECTRODE EXTENSION |
| 31 | MAY W10636384 |
| 32 | BRACKET, SPARK MODULE |
| 33 | MAY 7431P053-60 |
| 34 | MAY 7101P434-60 |
| 35 | SCREW (2) |
| 36 | MAY W10565365 |
| 36A | MAY W10637673 |
| 37 | MAY W10276466 |
| 38 | MAY W10631502 |
| 39 | SCREW (10-24X5/16-NI) |
| 40C | MAY W10407675 |
| 40A | MAY W10407673 |
| 40 | MAY W10639161 |
| 40B | MAY W10324014 |
