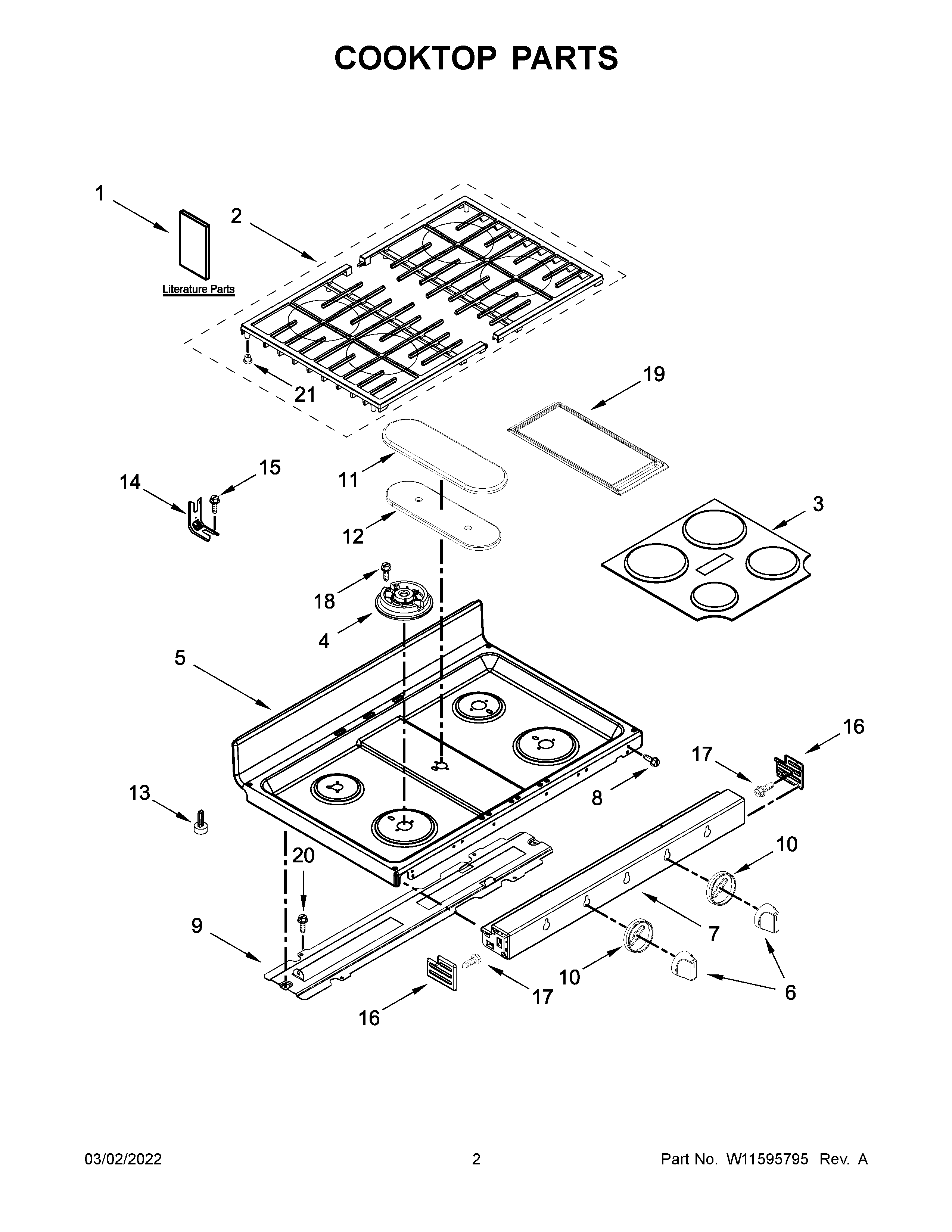

MGT8800FZ05 02 – COOKTOP PARTS

Products

Position	Product
NI	WIRING HARNESS PARTS, CLIP, WIRE
NI	W10745674 Whirlpool Wire Harness
NI	WASHER, FIBER
NI	W11172428 Whirlpool Wire Harness
NI	CLAMP, WIRE
NI	W11172531 Whirlpool Wire Harness
NI	W10408058 Whirlpool Wire Harness
NI	WIRING HARNESS PARTS, SCREW, GROUND
NI	CABINET (NOT A SERVICEABLE PART)
1	OWNER'S MANUAL
1B	TECH SHEET
1A	QUICK SERVICE GUIDE
2	W11673268 Whirlpool Grate Kit
3	WPW10299236 Whirlpool Burner Cap
4C	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
4	WPW10406878 Whirlpool Burner Base (16K)
4B	WPW10336094 Whirlpool Burner Assembly Top
4A	WPW10406243 Whirlpool Burner Head Auxiliary 6K
5	W10336330 Whirlpool Cooktop
6	W11160334 Whirlpool Knob
7	W11228125 Whirlpool Manifold Panel
8	SCREW (BLACK)
9	W10518258 Whirlpool Mounting Bracket
10	W11188712 Whirlpool Knob Bezel
11	WPW10171140 Whirlpool Burner Cap
12	WPW10333445 Whirlpool Burner Base
13	GLIDE, MAIN TOP
14	BRACKET, ANTI TIP
15	SCREW, ANTI-TIP KIT
16A	W10823299 Whirlpool Endcap Panel
16	CAP, END (STAINLESS (LEFT))
17	Screw
18	WP3368921 Whirlpool Screw
19	W10432544 Whirlpool Range Griddle
20	Screw
21	W10919249 Whirlpool Burner Grate Foot
