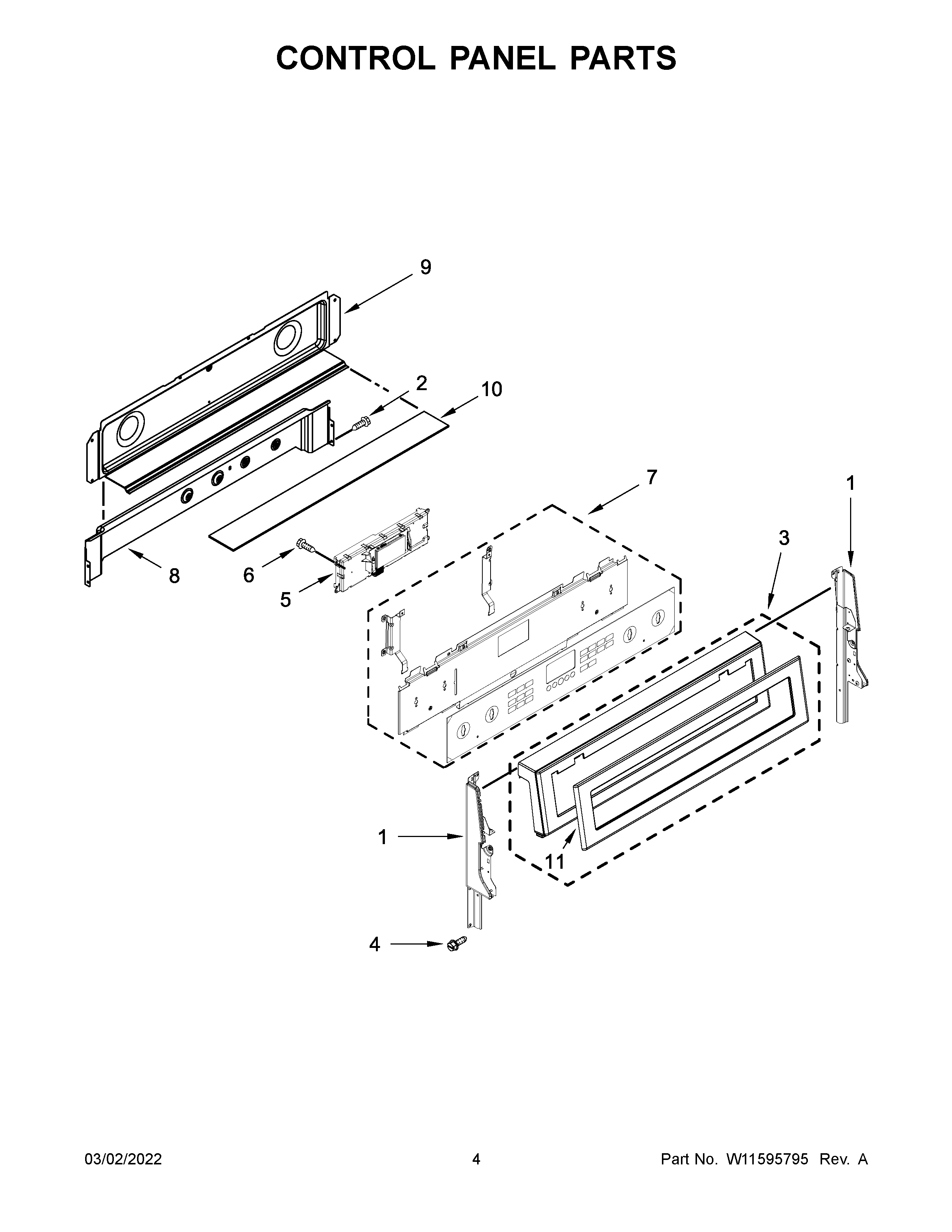

MGT8800FZ05 03 – CONTROL PANEL PARTS

MGT8800FZ05 03 – CONTROL PANEL PARTS

Written by

in

MGT8800FZ05 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W10319109 Whirlpool Endcap Panel
1ASUPPORT, BACK GUARD (RIGHT HAND)
2SCREW
3W11132197 Whirlpool Control Panel
4SCREW (BLACK)
5W10878903 Whirlpool Electric Control
6SCREW
7W11160335 Whirlpool Switch Membrane
8W10278697 Whirlpool Vent Shield Assembly
9W10776098 Whirlpool Rear Cover
10W11684874 Whirlpool Insulation
11CABINET (NOT A SERVICEABLE PART)
