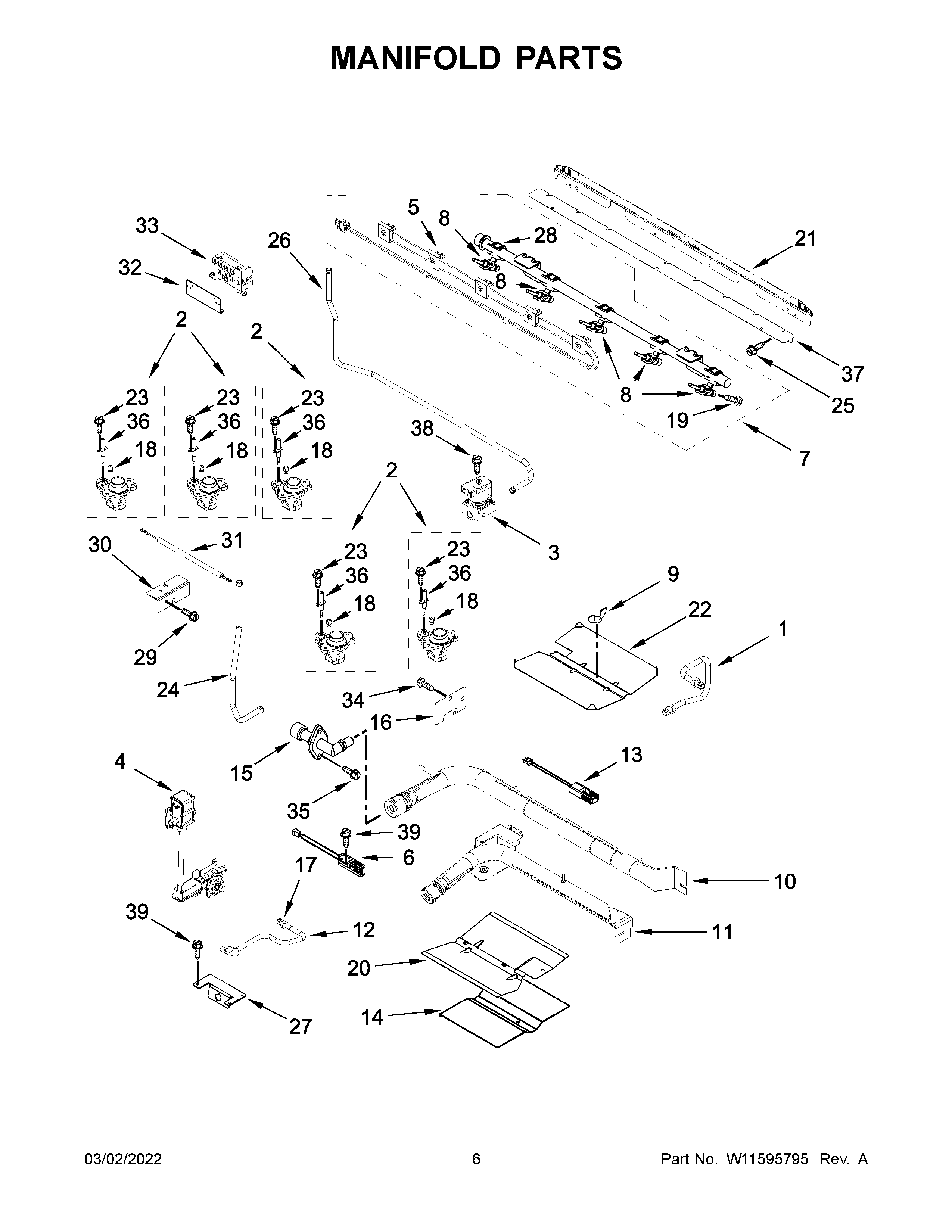

MGT8800FZ05 04 – MANIFOLD PARTS
Written by
in
MGT8800FZ05 04 – MANIFOLD PARTS
Products
Position
Product
NI
CABINET (NOT A SERVICEABLE PART)
NI
W10324646 Whirlpool Insulation
NI
W11674161 Whirlpool Range Orifice Spud
1
W10319002 Whirlpool Gas Tubing
2A
W10643269 Whirlpool Orifice Holder
2
W11230935 Whirlpool Orifice Holder
2D
W10643271 Whirlpool Orifice Holder
2B
W10643272 Whirlpool Orifice Holder
2C
W11685612 Whirlpool Range Orifice Holder
3
W10911971 Whirlpool Solenoid Valve
4
WPW10546238 Whirlpool Gas Valve
5
W11241684 Whirlpool Wire Harness
6
WPW10324738 Whirlpool Oven Igniter
7
W11684563 Whirlpool Range Manifold
8
W11740802 Whirlpool Burner Valve
8A
W10718182 Whirlpool Burner Valve
8B
W10718181 Whirlpool Burner Valve
9
NUT, WING
10
W11245221 Whirlpool Broiler Burner
11
W11174122 Whirlpool Oven Burner
12A
W10342661 Whirlpool Gas Tubing
12
W10342662 Whirlpool Gas Tubing
13
IGNITOR, BAKE
14
W10298865 Whirlpool Heat Shield Assembly
15
W10292293 Whirlpool Fitting
16
COVER, IGNITOR WIRE
17
NUT, MOUNTING
18B
W11160346 Whirlpool Spud Orifice
18A
W11160345 Whirlpool Orifice Spud
18C
W11160347 Whirlpool Spud Orifice
18
W11160344 Whirlpool Orifice Spud
19
W10295997 Whirlpool Screw
20
W10272528 Whirlpool Burner Baffle
21
WPW10276470 Whirlpool Dishwasher Support Bracket
22
BAFFLE, BROIL BURNER
23
WP8273062 Whirlpool Screw
24
W10524331 Whirlpool Gas Tubing
25
SCREW
26
W10642388 Whirlpool Gas Tubing
27
BRACKET, ORIFICE
28
W10949105 Whirlpool Mounting Bracket
29
W10217535 Whirlpool Screw
30
W10324366 Whirlpool Shield
31
W10636384 Whirlpool Extension
32
W10319059 Whirlpool Support Bracket
33
MODULE, SPARK
34
SCREW
35
SCREW
36
W11208293 Whirlpool Surface Igniter
36A
W10637673 Whirlpool Surface Igniter
37
WPW10276466 Whirlpool Support Bracket
38
WPL 7101P62460
39
SCREW
←
