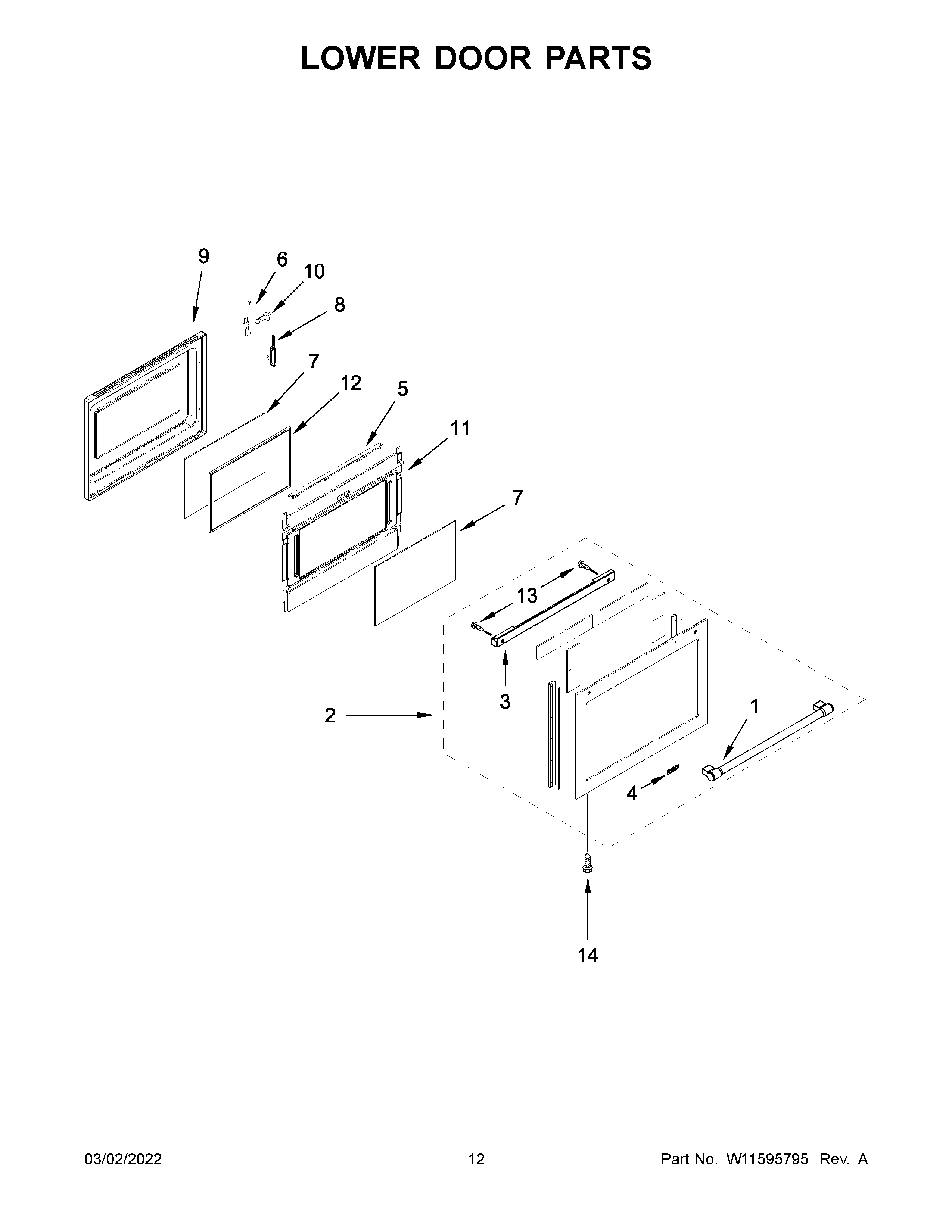

MGT8800FZ05 07 – LOWER DOOR PARTS

Products

Position	Product
1	ASSEMBLY, DOOR HANDLE (STAINLESS)
2	W11600198 Whirlpool Door Glass
3	W10575689 Whirlpool Mounting Bracket
4	WPW10612925 Whirlpool Microwave Nameplate
5	WPW10272594 Whirlpool Window Frame
6	WPW10272329 Whirlpool Hinge Receptacle
6A	WPW10272328 Whirlpool Hinge Receptacle
7	WP9757706 Whirlpool Door Inner Glass
8	WPW10335434 Whirlpool Door Hinge
8A	WPW10335433 Whirlpool Door Hinge
9	WPW10272698 Whirlpool Dishwasher Door Liner
10	Screw
11	W10340464 Whirlpool Retainer
12	INSULATION, DOOR
13	W10831019 Whirlpool Stove Door Screw
14	W11690596 Whirlpool Screw
