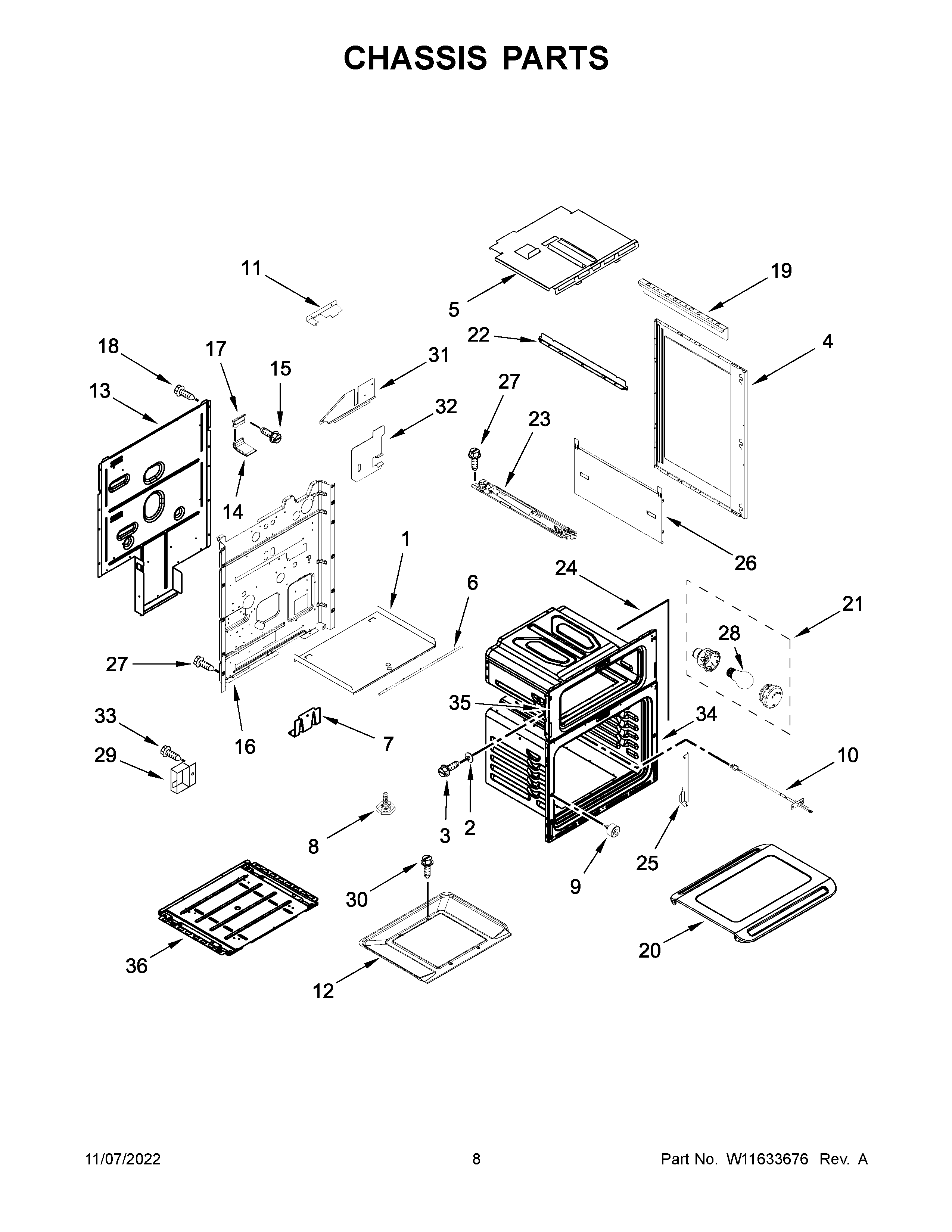

MGT8800FZ10 05 – CHASSIS PARTS

Products

Position	Product
NI	W11688385 Whirlpool Insulation
NI	W11685611 Whirlpool Insulation
NI	W11688777 Whirlpool Insulation
NI	W11684919 Whirlpool Insulation
NI	W11684769 Whirlpool Insulation
1	W10319038 Whirlpool Heat Shield
2	W11594028 Whirlpool Spacer Panel
3	WPW10267456 Whirlpool Screw
4	W11595910 Whirlpool Side Panel
5	W10324643 Whirlpool Support
6	W10319000 Whirlpool Oven Gasket Assembly
7	SUPPORT, LOWER OVEN
8	FOOT, LEVELER
9	W10105790 Whirlpool Bumper
10	SENSOR, OVEN
11	COVER, LOWER WIRE
12	W10777398 Whirlpool Oven Bottom
13	WPW10261387 Whirlpool Wire Cover
14A	W10272519 Whirlpool Oven Flue
14	W11243157 Whirlpool Oven Flue
15	SCREW
16	W10668728 Whirlpool Rear Cover Assembly
17A	W10321445 Whirlpool Oven Flue Assembly
17	W10321446 Whirlpool Oven Flue
18	Screw
19	W10319087 Whirlpool Support Bracket
20	WPW10272546 Whirlpool Broiler Pan
21	W11594027 Whirlpool Range Oven Light Socket
22	W10357697 Whirlpool Spacer Panel
23	W11166856 Whirlpool Door Latch
24	GASKET, OVEN DOOR (UPPER)
24A	W11594140 Whirlpool Door Gasket
25A	W10410461 Whirlpool Cover
25	W10410463 Whirlpool Cover Assembly
26	SHIELD-SIDE INSULATION
27	SCREW
28	RANGE ONLY 40W 120V APPL BULB
29	8285593 Whirlpool Oven Wire Cover
30	WP12992902 Whirlpool Refrigerator Screw
31	COVER, INNER MAIN BACK
32	COVER, OUTER MAIN BACK
33	SCREW
34	FRONT, MAIN (LOWER)
35	FRONT, MAIN (UPPER)
36	BASE, CHASSIS
