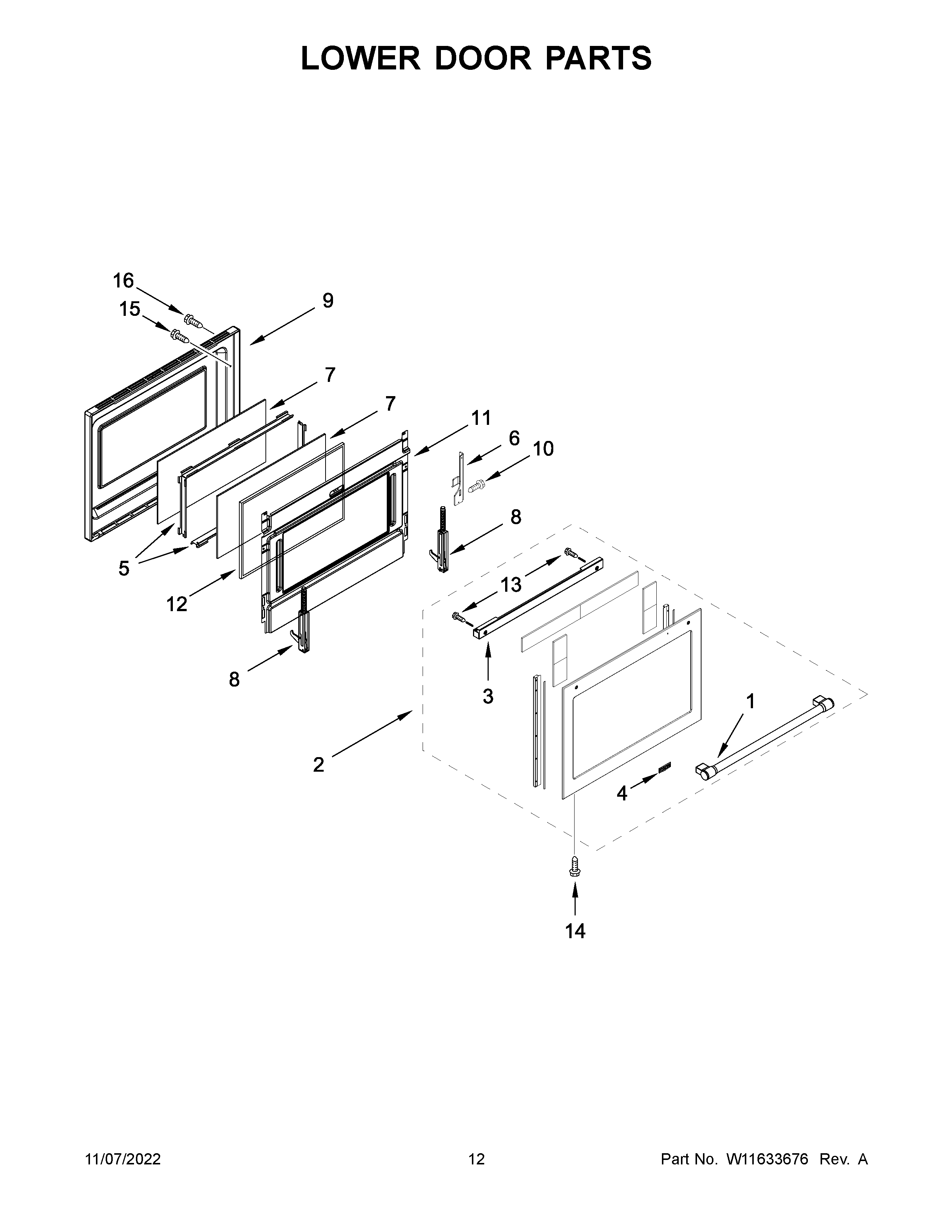

MGT8800FZ10 07 – LOWER DOOR PARTS

MGT8800FZ10 07 – LOWER DOOR PARTS

Written by

in

MGT8800FZ10 07 – LOWER DOOR PARTS

Products

PositionProduct
1ASSEMBLY, DOOR HANDLE (STAINLESS)
2W11600198 Whirlpool Door Glass
3W10575689 Whirlpool Mounting Bracket
4WPW10612925 Whirlpool Microwave Nameplate
5WPW10272594 Whirlpool Window Frame
6WPW10272329 Whirlpool Hinge Receptacle
6AWPW10272328 Whirlpool Hinge Receptacle
7WP9757706 Whirlpool Door Inner Glass
8WPW10335434 Whirlpool Door Hinge
8AWPW10335433 Whirlpool Door Hinge
9WPW10272698 Whirlpool Dishwasher Door Liner
10Screw
11W10340464 Whirlpool Retainer
12INSULATION, DOOR
13W10831019 Whirlpool Stove Door Screw
14W11690596 Whirlpool Screw
15WPW10292297 Whirlpool Screw
16W11712404 Whirlpool Screw
