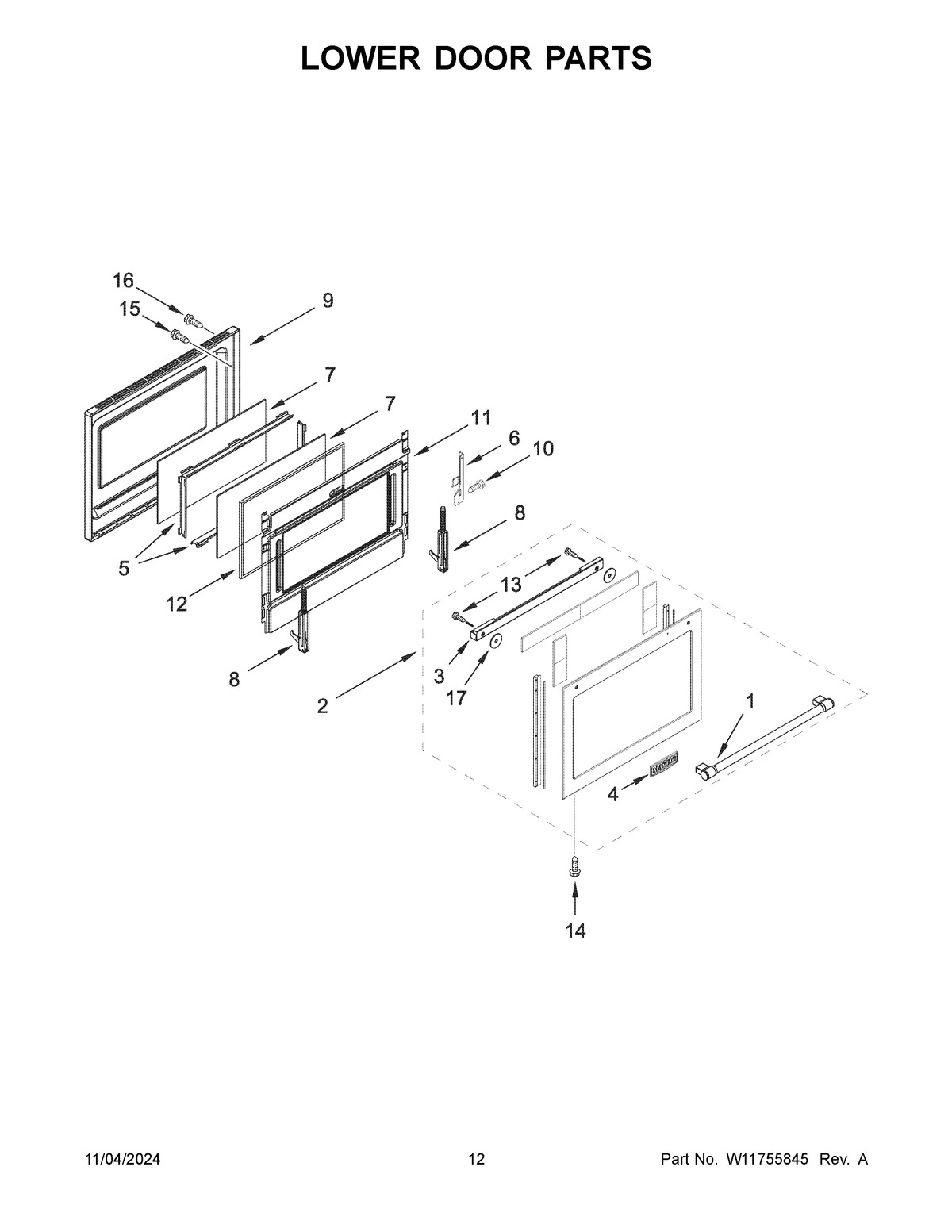

MGT8800FZ11 07 – LOWER DOOR PARTS

Products

Position	Product
1	ASSEMBLY, DOOR HANDLE (STAINLESS)
2	W11600198 Whirlpool Door Glass
3	W10575689 Whirlpool Mounting Bracket
4	WPW10612925 Whirlpool Microwave Nameplate
5	WPW10272594 Whirlpool Window Frame
6	WPW10272329 Whirlpool Hinge Receptacle
6A	WPW10272328 Whirlpool Hinge Receptacle
7	WP9757706 Whirlpool Door Inner Glass
8	WPW10335434 Whirlpool Door Hinge
8A	WPW10335433 Whirlpool Door Hinge
9	WPW10272698 Whirlpool Dishwasher Door Liner
10	Screw
11	W10340464 Whirlpool Retainer
12	INSULATION, DOOR
13	W10831019 Whirlpool Stove Door Screw
14	W11690596 Whirlpool Screw
15	WPW10292297 Whirlpool Screw
16	W11712404 Whirlpool Screw
17	WASHER, FIBER
