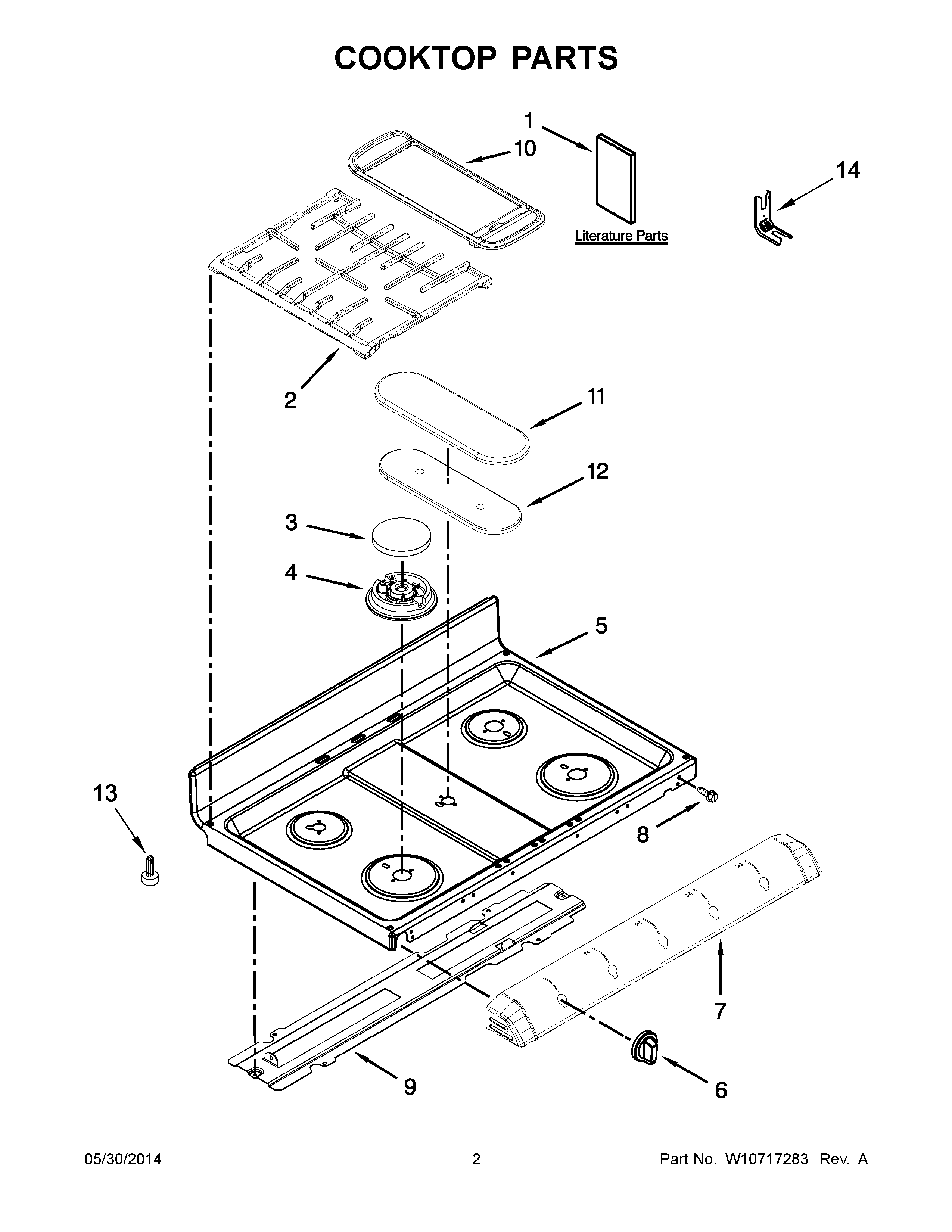

MGT8820DS00 02 – COOKTOP PARTS

Products

PositionProduct
NIMAY W10683008
NICLIP, WIRE
NIWIRING HARNESS PARTS, HARNESS, SENSOR
NIHARNESS, SPARK
NISCREW, GROUND (GRN)
NIMAY 7111P017-60
1SHEET, TECH
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10669248
1MAY W10526071
1TIPS, SAFE COOKING (FRENCH)
2KIT, GRATES (BLACK)
3SET, BURNER CAP (BLACK)
4HEAD, BURNER (12K) (LEFT FRONT AND RIGHT REAR)
4HEAD, BURNER (17.5K) (RIGHT FRONT)
4HEAD, BURNER (6K) (LEFT REAR)
4HEAD, BURNER (CENTER)
5MAY W10260169
6MAY W10650403
7MAY W10664102
8Screw (2) (Black)
9MAY W10518258
10MAY W10297135
11SET, FISH BURNER CAP (BLACK)
12BASE, BURNER (FISH BURNER ONLY)
13GLIDE, MAIN TOP
14BRACKET, ANTI-TIP
