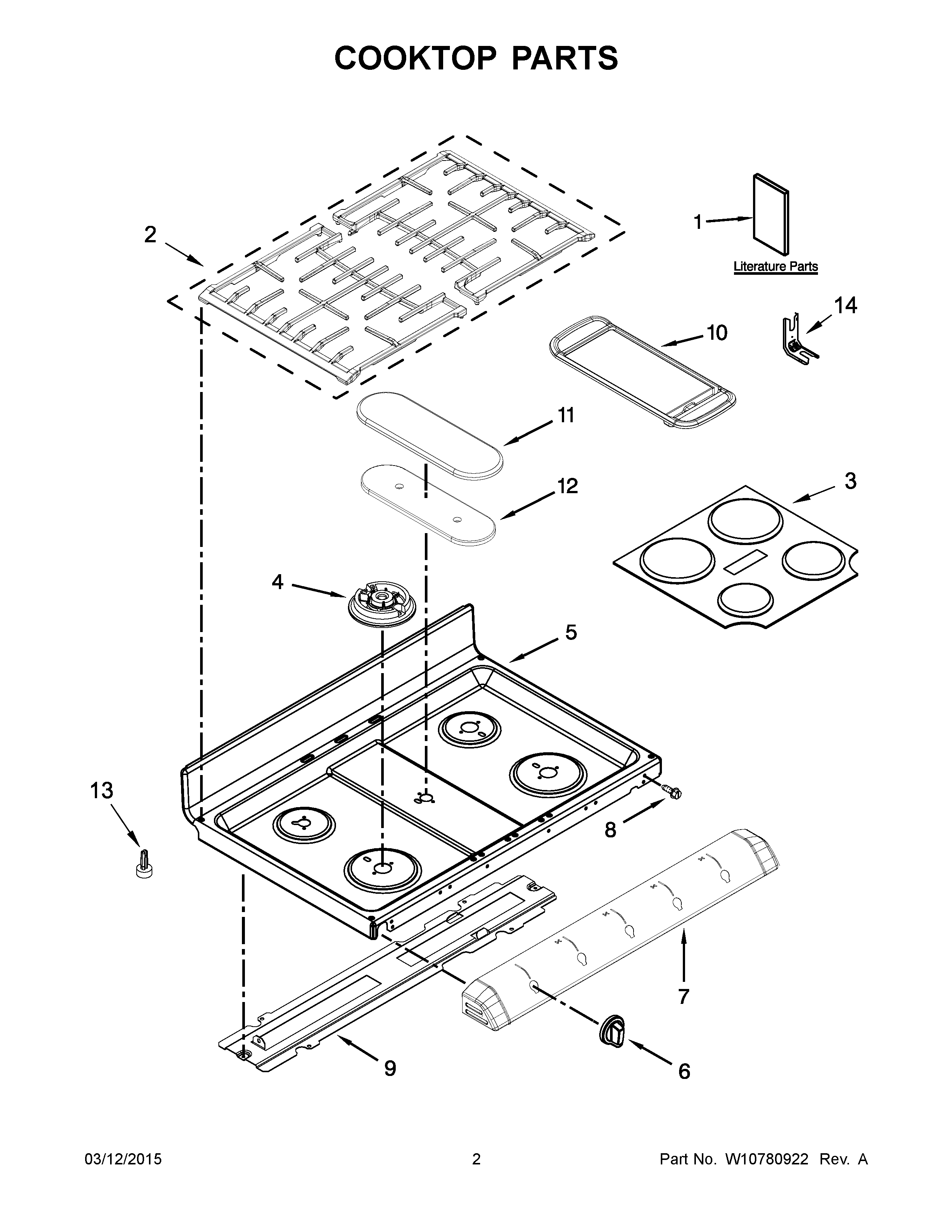

MGT8820DS02 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNESS, SPARK
NI	CLIP, WIRE
NI	WIRING HARNESS PARTS, HARNESS, SENSOR
NI	MAY W10683008
NI	SCREW, GROUND (GRN)
NI	MAY 7111P017-60
NI	HARNESS, EOL (MRC)
1	MAY W10526071
1C	TIPS, SAFE COOKING (ENGLISH)
1A	MAY W10748897
1B	MAY W10647745
1D	TIPS, SAFE COOKING (FRENCH)
2	KIT, GRATES (BLACK)
3	SET, BURNER CAP (BLACK)
4A	HEAD, BURNER (6K) (LEFT REAR)
4B	HEAD, BURNER (12K) (LEFT FRONT AND RIGHT REAR)
4	HEAD, BURNER (17.5K) (RIGHT FRONT)
4C	HEAD, BURNER (CENTER)
5	MAY W10260169
6	MAY W10650403
7	MAY W10664102
8	Screw (2) (Black)
9	MAY W10518258
10	MAY W10297135
11	SET, FISH BURNER CAP (BLACK)
12	BASE, BURNER (FISH BURNER ONLY)
13	GLIDE, MAIN TOP
14	BRACKET, ANTI-TIP
