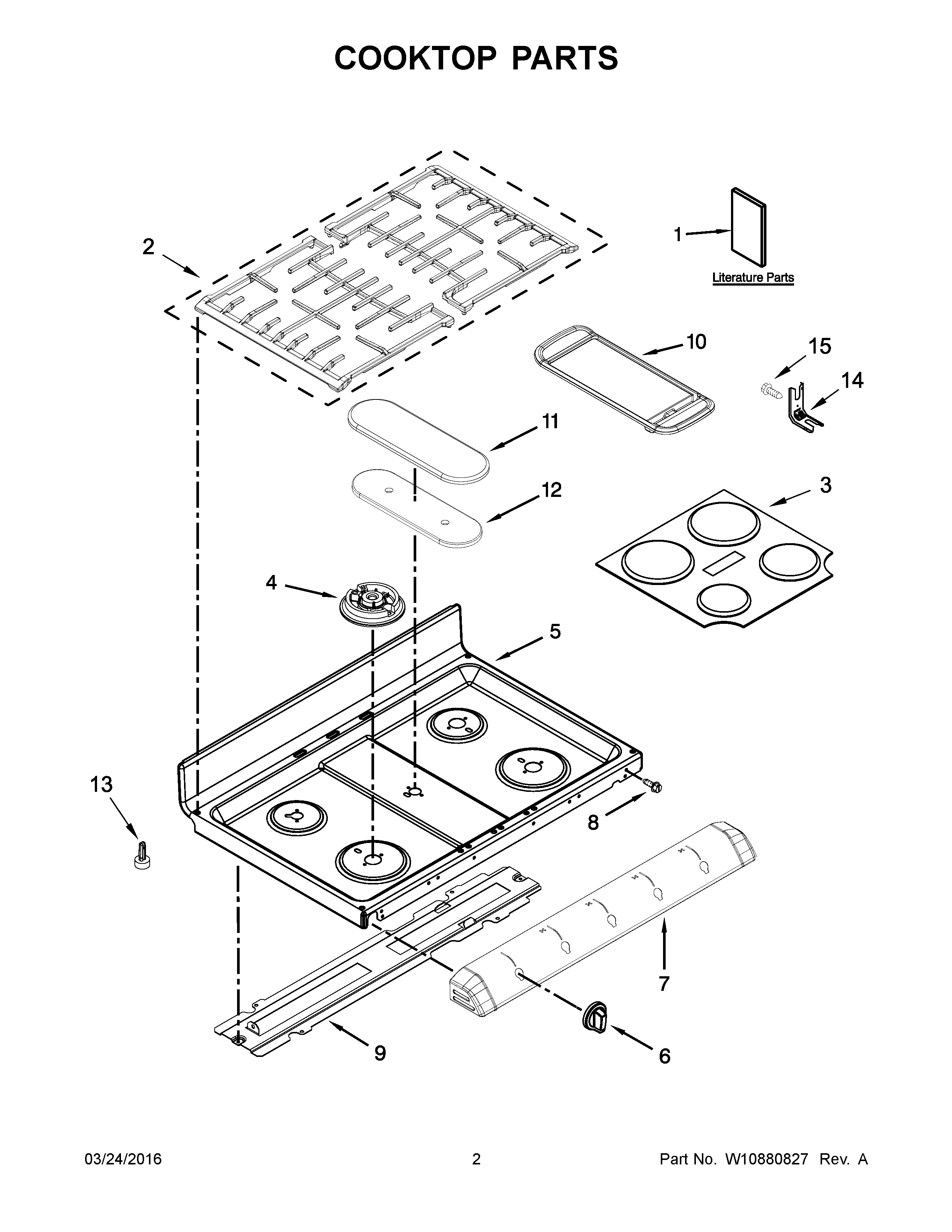

MGT8820DS05 02 – COOKTOP PARTS

Products

PositionProduct
NIMAY W10745674
NIHARNESS, EOL (MRC)
NICLIP, WIRE
NILINER (NOT A SERVICEABLE PART)
NISCREW, GROUND (GRN)
NIHARNESS, SPARK
NIMAY 7111P017-60
NIMAY W10745683
1CTIPS, SAFE COOKING (ENGLISH)
1MAY W10526071
1AMAY W10748897
1BMAY W10647745
1DTIPS, SAFE COOKING (FRENCH)
2KIT, GRATES (BLACK)
3SET, BURNER CAP (BLACK)
4HEAD, BURNER (17.5K) (RIGHT FRONT)
4CHEAD, BURNER (CENTER)
4BHEAD, BURNER (12K) (LEFT FRONT AND RIGHT REAR)
4AHEAD, BURNER (6K) (LEFT REAR)
5MAY W10260169
6MAY W10650403
7MAY W10664102
8Screw (2) (Black)
9MAY W10518258
10MAY W10297135
11SET, FISH BURNER CAP (BLACK)
12BASE, BURNER (FISH BURNER ONLY)
13GLIDE, MAIN TOP
14BRACKET, ANTI-TIP
15SCREW, ANTI-TIP KIT
