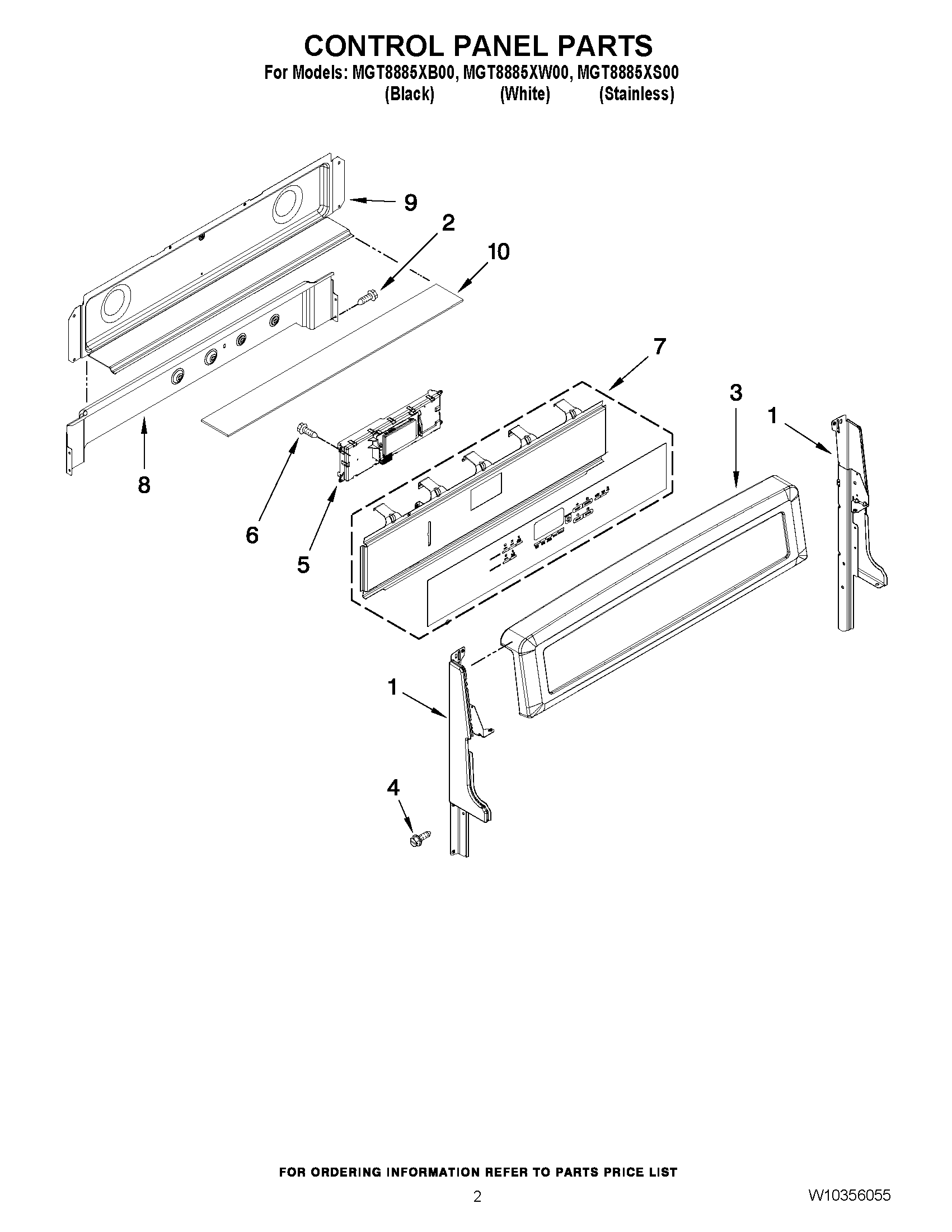

MGT8885XB00 02 – CONTROL PANEL PARTS

MGT8885XB00 02 – CONTROL PANEL PARTS

Written by

in

MGT8885XB00 02 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10319109
1MAY W10319110
1MAY W10319111
1MAY W10319112
2SCREW (8BX3/8-NI)
3MAY W10097280
3MAY W10097270
3CONSOLE (STAINLESS)
4Screw (2) (Black)
5MAY W10206274
6MAY 7101P500-60
7ASSEMBLY, MEMBRANE (INCLUDING BRACKET) (BLACK)
7ASSEMBLY, MEMBRANE (INCLUDING BRACKET) (WHITE)
7ASSEMBLY, MEMBRANE (INCLUDING BRACKET) (STAINLESS)
8MAY W10278697
9COVER, BACKGUARD
10INSULATION, WIRE COVER
