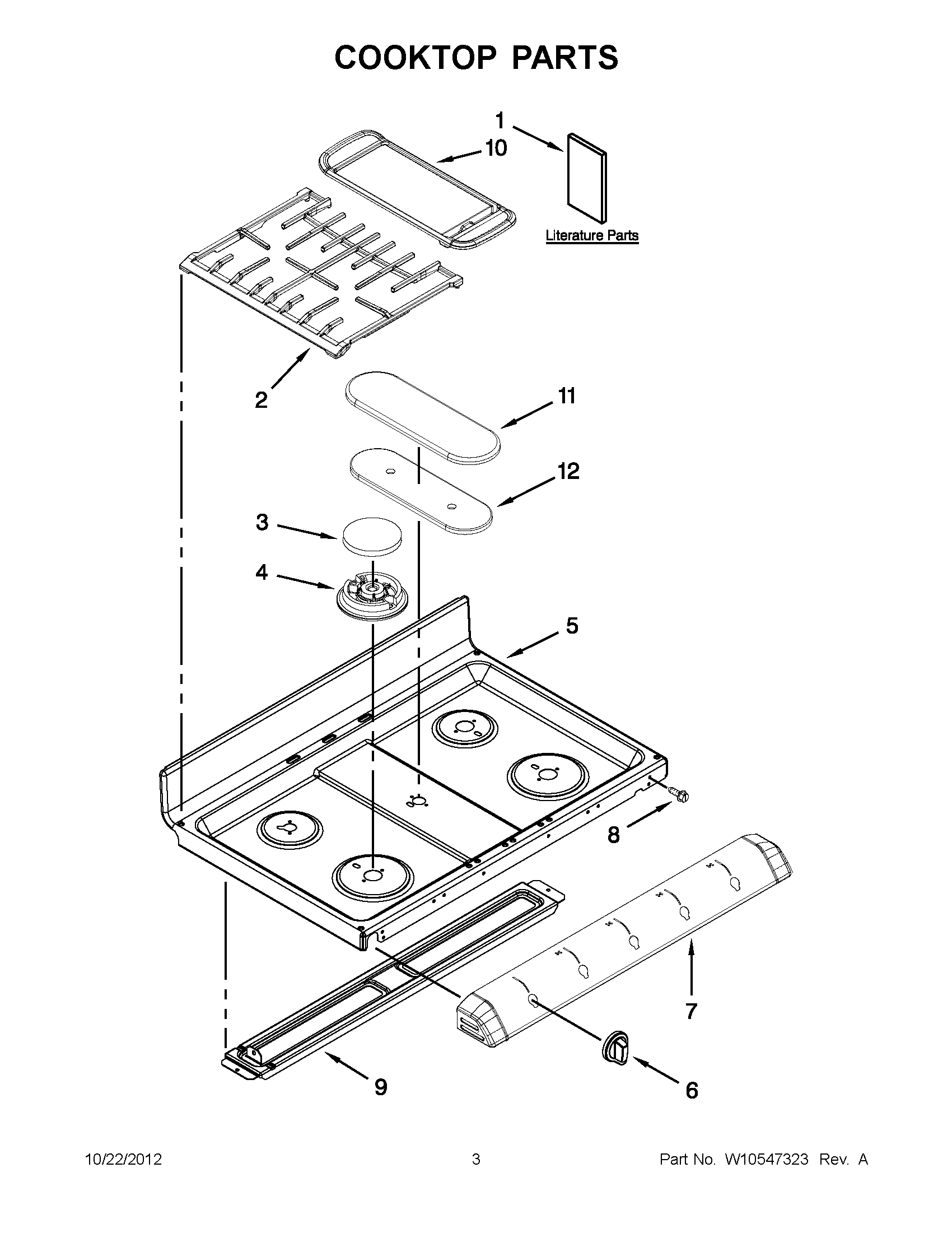

MGT8885XB03 01 – COOKTOP PARTS

MGT8885XB03 01 – COOKTOP PARTS

Written by

in

MGT8885XB03 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1GUIDE, USE & CARE
1MAY W10526071
1SHEET, TECH
1TIPS, SAFE COOKING (FRENCH)
2SET, GRATES (BLACK)
2SET, GRATES (WETSTONE)
3SET, BURNER CAP (BLACK)
3SET, BURNER CAP (WETSTONE)
4HEAD, BURNER (CENTER)
4HEAD, BURNER (RF)
4HEAD, BURNER (LR/RR/LF)
4HEAD, BURNER CTR.
5MAY W10260169
5MAY W10260170
6MAY W10294792
6MAY W10281279
6MAY W10296917
7MAY W10219244
7MAY W10219242
7MAY W10219243
8Screw (2) (Black)
9MAY W10364218
10MAY W10297135
11SET, FISH BURNER CAP (WETSTONE)
11SET, FISH BURNER CAP (BLACK)
12BASE, BURNER (FISH BURNER ONLY)
13GLIDE, MAIN TOP
