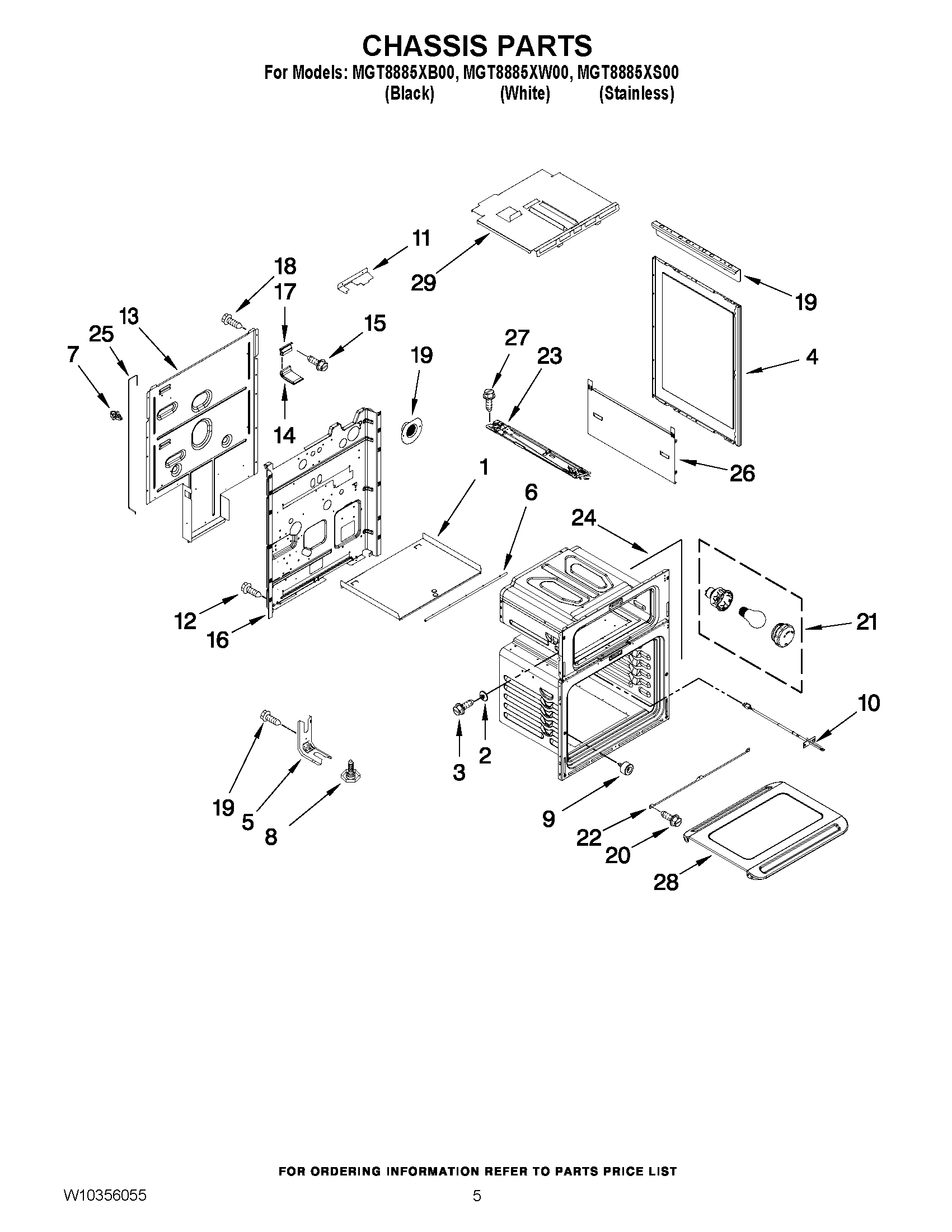

MGT8885XS00 04 – CHASSIS PARTS

MGT8885XS00 04 – CHASSIS PARTS

Written by

in

MGT8885XS00 04 – CHASSIS PARTS

Products

Position	Product
NI	MAY W10324645
NI	INSULATION, BACK (LOWER)
NI	INSULATION, WRAPPER (UPPER)
NI	INSULATION, WRAPPER (LOWER)
NI	INSULATION, BACK (UPPER)
1	MAY W10318912
2	MAY W10237689
3	MAY W10267456
4	MAY W10330376
4	MAY W10330375
5	BRACKET, ANTI-TIP
6	MAY W10319000
7	MAY W10284945
8	Leg, Leveling
9	ASSEMBLY, BUMPER
10	SENSOR, OVEN
11	MAY W10268558
12	MAY 7101P426- 60
13	MAY W10261387
14	ASSEMBLY, UPPER FLUE
14	MAY W10272519
15	MAY 7101P434-60
16	MAY W10260580
17	ASSEMBLY, OUTLET FLUE (UPPER)
17	ASSEMBLY, OUTLET FLUE (LOWER)
18	MAY 4449743
19	BRACKET, U CHANNEL
20	SCREW, ANTI-TIP KIT
21	MAY W10323374
22	MAY W10299886
23	LOCK, DOOR
24	MAY W10318928
24	MAY W10269069
25	MAY W10284949
26	SHIELD, SIDE INSULATION
27	Screw (Black) (2)
28	BOTTOM, OVEN GAS
29	MAY W10324643
