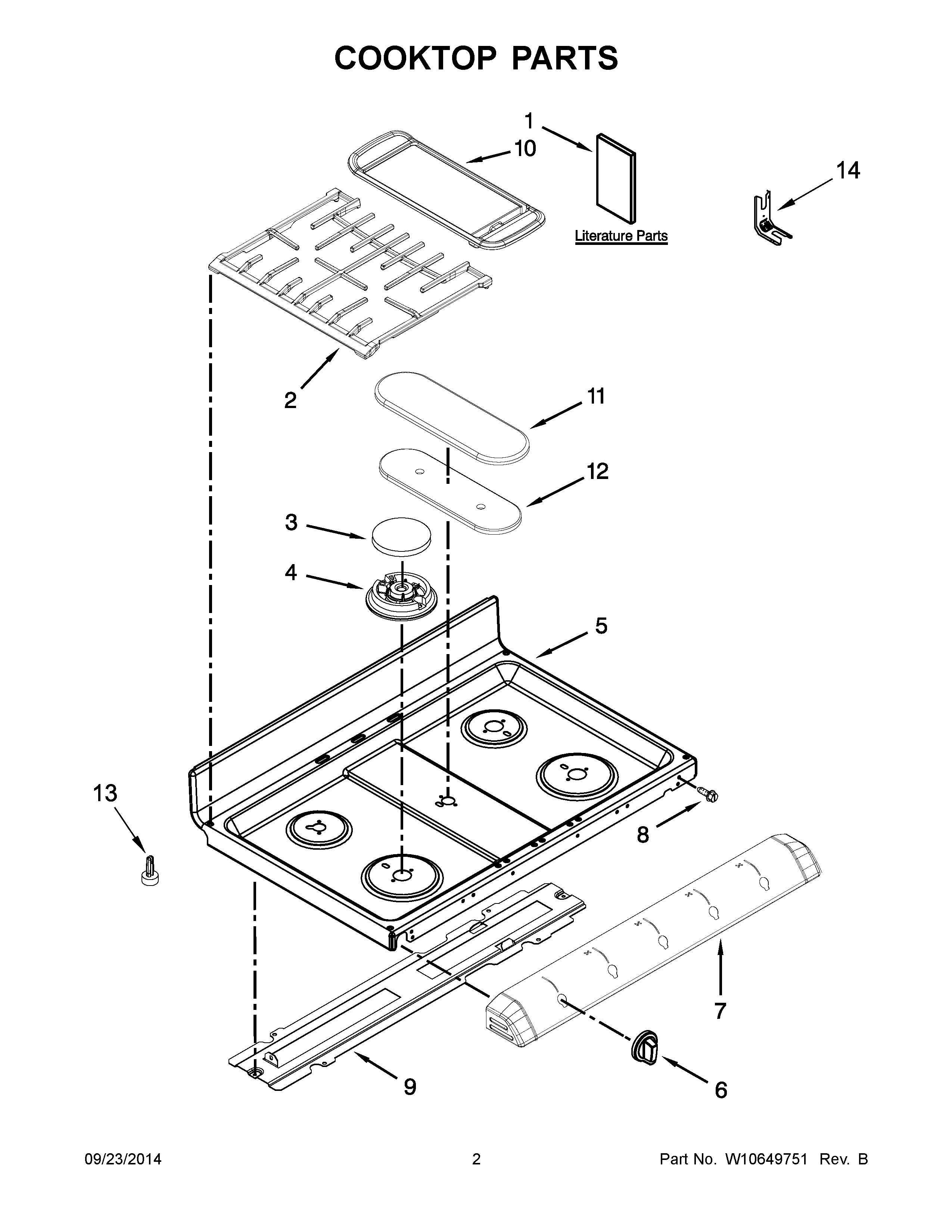

MGT8885XW04 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNESS, SPARK
NI	MAY W10683008
NI	LINER (NOT A SERVICEABLE PART)
NI	CLIP, WIRE
NI	WIRING HARNESS PARTS, HARNESS, SENSOR
NI	SCREW, GROUND (GRN)
NI	MAY 7111P017-60
1B	SHEET, TECH
1A	GUIDE, USE & CARE
1	MAY W10526071
1D	TIPS, SAFE COOKING (FRENCH)
1C	TIPS, SAFE COOKING (ENGLISH)
2	SET, GRATES (BLACK)
2A	SET, GRATES (WETSTONE)
3A	SET, BURNER CAP (WETSTONE)
3	SET, BURNER CAP (BLACK)
4	HEAD, BURNER (17.5K) (RIGHT FRONT)
4B	HEAD, BURNER (12K) (LEFT FRONT AND RIGHT REAR)
4A	HEAD, BURNER (6K) (LEFT REAR)
4C	HEAD, BURNER (CENTER)
5	MAY W10260169
5A	MAY W10260170
6A	MAY W10281279
6B	MAY W10294792
6	MAY W10296917
7B	MAY W10219246
7	MAY W10488871
7A	MAY W10488874
8	Screw (2) (Black)
9	MAY W10518258
10	MAY W10297135
11A	SET, FISH BURNER CAP (WETSTONE)
11	SET, FISH BURNER CAP (BLACK)
12	BASE, BURNER (FISH BURNER ONLY)
13	GLIDE, MAIN TOP
14	BRACKET, ANTI-TIP
