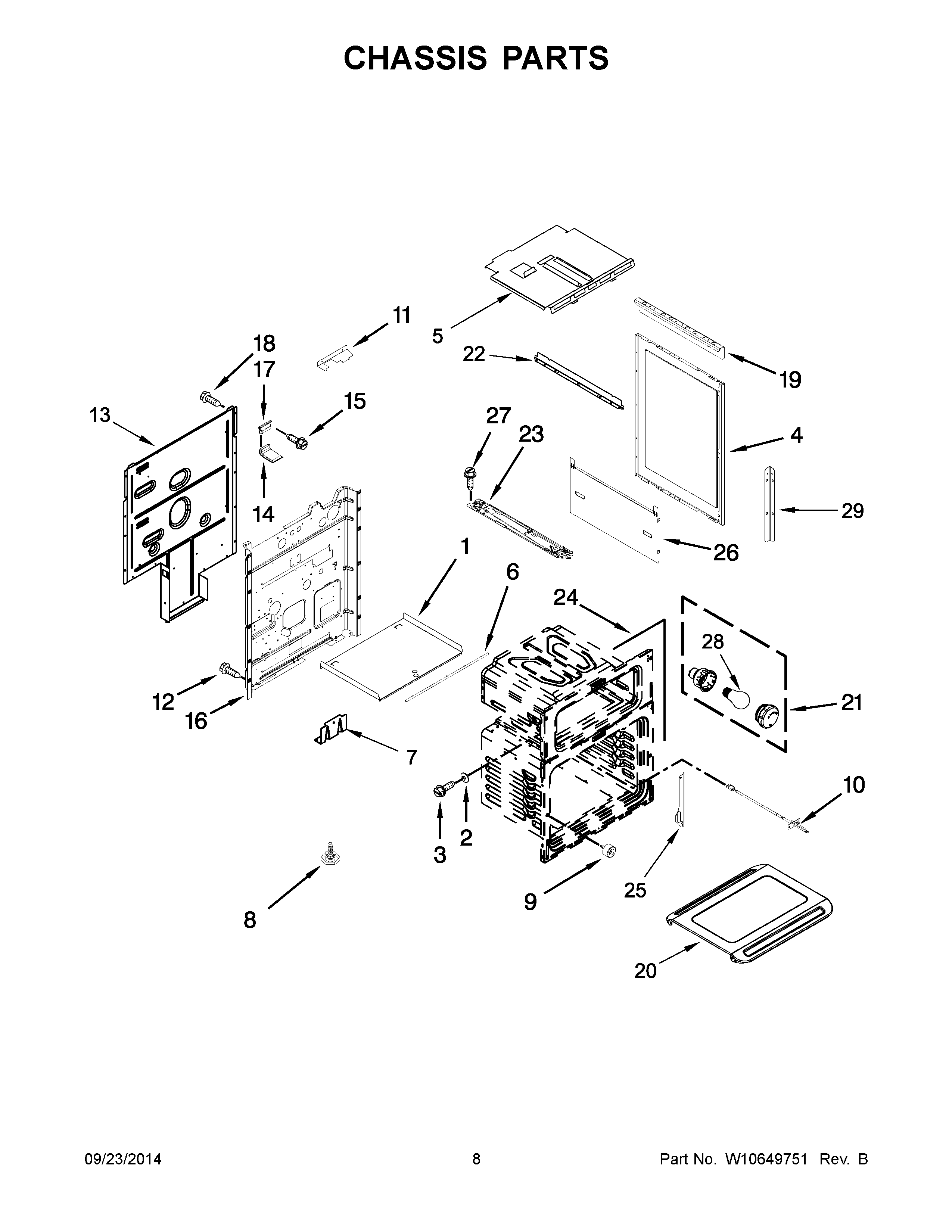

MGT8885XW04 05 – CHASSIS PARTS

Products

Position	Product
NI	MAY W10344586
NI	INSULATION, BACK (UPPER)
NI	INSULATION, BACK (LOWER)
NI	INSULATION, WRAPPER (UPPER)
NI	INSULATION, WRAPPER (LOWER)
1	MAY W10319038
2	MAY W10237689
3	MAY W10267456
4A	MAY W10330376
4	MAY W10330375
5	MAY W10324643
6	MAY W10319000
7	MAY W10260703
8	Leg, Leveling
9	ASSEMBLY, BUMPER
10	SENSOR, OVEN
11	MAY W10268558
12	MAY 7101P635-60
13	MAY W10261387
14A	MAY W10272519
14	ASSEMBLY, UPPER FLUE
15	MAY 7101P434-60
16	MAY W10668728
17	ASSEMBLY, OUTLET FLUE (UPPER)
17A	ASSEMBLY, OUTLET FLUE (LOWER)
18	MAY 4449040
19	BRACKET, U CHANNEL
20	BOTTOM, OVEN GAS
21	ASSEMBLY, LIGHT
22	MAY W10357697
23	MAY W10471348
24	MAY W10318928
24A	MAY W10269069
25	MAY W10410463
25A	MAY W10410461
26	MAY W10538516
27	Screw (Black) (2)
28	BULB, OVEN LIGHT
29	MAY W10651056
